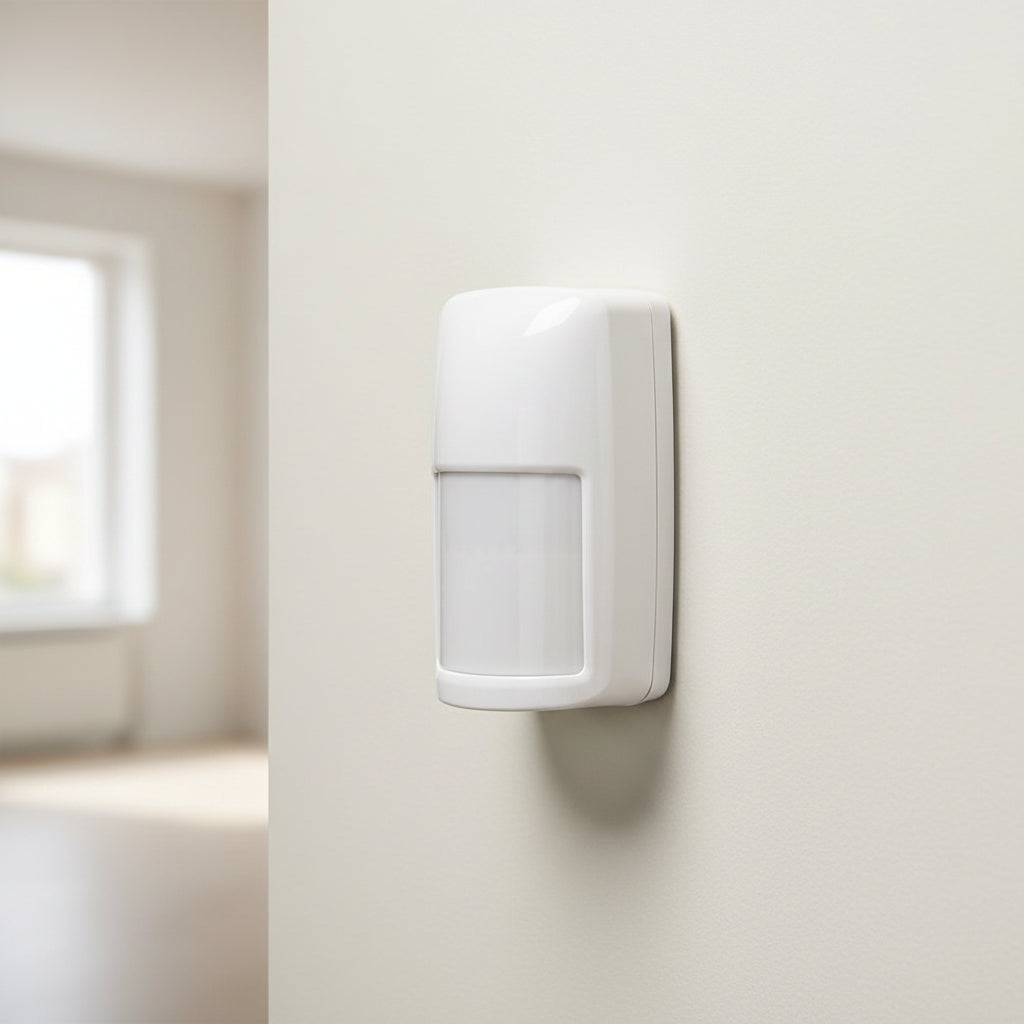

Honeywell Home DT8050V Wired DUAL TEC Motion Sensor, 53' 72' Range, (Replaces DT8050)

The Honeywell Home DT8050V is a wired dual-technology motion sensor from the DUAL TEC line that pairs a passive infrared sensor with a 10.52GHz microwave frequency. It does motion detection for security systems indoors, and suits installers and business or home owners who want a surface-mount detector built to resist false alarms. It replaces the DT8050 and is part of the DT8000 series.

Key features

• Offers wall-to-wall coverage of the protected area.
• Combines two detection technologies for strong detection and false alarm immunity.
• Includes a flashlight walk test to help verify coverage.
• Uses a passive infrared sensor alongside its dual-tech design.
• Mounts on the surface and runs on DC power.

Specifications

Brand: Honeywell Home

Model: DT8050V

Product Line: DUAL TEC

Product Series: DT8000

Product Type: Motion Sensor

Color: White

Connectivity Technology: Wired

Power Source: DC Power

Passive Infrared Sensor (PIR): Yes

Operating Frequency: 10.52GHz

Minimum Motion Sensing Distance: 53'

Maximum Motion Sensing Distance: 50'

Mount Type: Surface Mount

Indoor/Outdoor: Indoor

Minimum Operating Temperature: 14°F

Height: 3.86″

Width: 2.24″

Depth: 1.71″

Compatibility: Security Systems

Certifications & Standards: UL Listed: UL639, Intrusion-detection Units

Environmental Certification: WEEE

Environmentally Friendly: Yes

Country of Origin: CN

Packaged Quantity: 1

Installation notes

Mount the detector indoors on a stable surface where it has a clear view of the area, and avoid aiming it at heat sources or moving air. After wiring the DC power and alarm connections, run the walk test across the protected area to confirm coverage before closing up the job.
