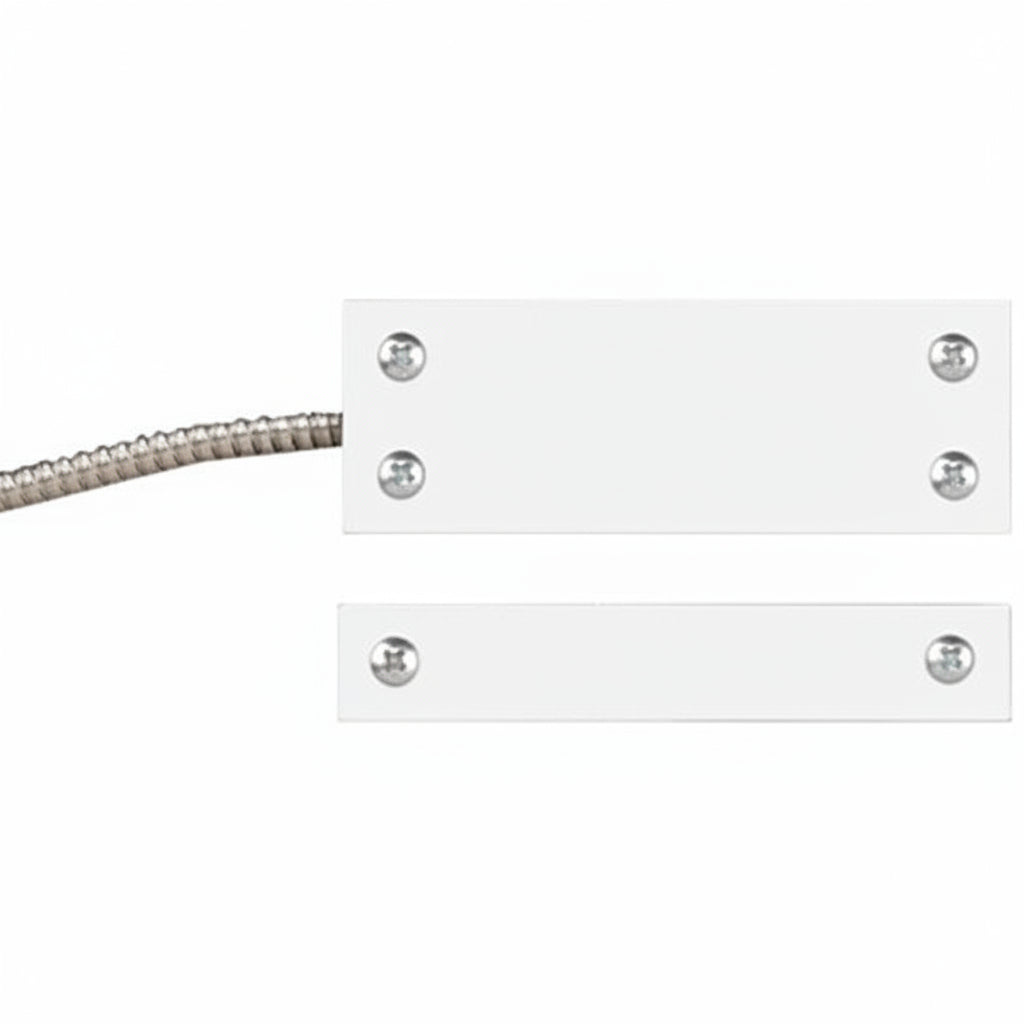

Honeywell Home 968XTP High Security Magnetic Switch Contact

The Honeywell Home 968XTP is a wired, surface-mount high-security magnetic contact that monitors whether a door, window or machinery safety barrier is open or closed. It suits security installers and businesses that need a switch built to resist tampering. The epoxy-sealed housing, surge-tolerant XTP contacts and resistance to external magnets set it apart from standard contacts.

Key features

• Epoxy sealing protects the switch from moisture and impact.
• XTP contacts withstand surges up to 2400V DC.
• Suitable for both indoor and outdoor use.
• Resists defeat attempts made with an external magnet.
• A 3 ft stainless steel armored cable guards the wiring run.
• Extra transient protection adds a further safeguard for the circuit.

Specifications

Brand: Honeywell Home

Model: 968XTP

Product type: Magnetic contact

Color: White

Connectivity: Wired

Mount type: Surface mount

Contact form: Form C

Contact type: NO/NC (combination)

Standard gap: 11.0mm

Length: 4.3″

Width: 1.5″

Cable length: 3′

Power source: DC power

Input voltage: 24V AC

Input current: 25mA

Tamper rating: 1 Amp @ 24VDC

Minimum operating temperature: -40°F

Application: Security system sensors

RoHS: Restricted substances not used

Country of origin: MX

Package contents: 968XTP Magnetic Contact, Tamper Switch

Installation notes

Mount the switch and magnet on the door or window frame and the moving leaf so they line up within the standard gap when the opening is closed. Keep the armored cable run clear of sharp edges and pinch points, and test the contact and tamper switch from the panel before handing the system over.
