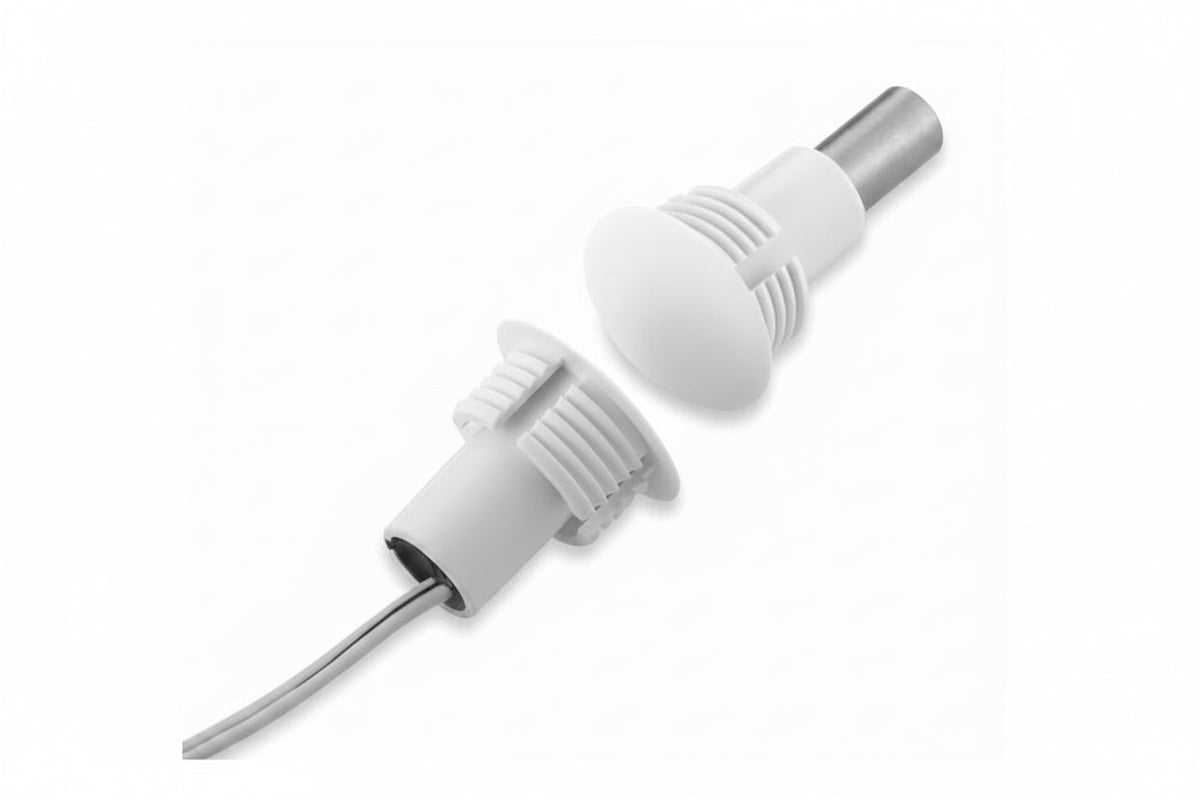

Honeywell Home 947-75WH 3/4" Diameter Steel Door Contact

The Honeywell Home 947-75WH is a wired, white recessed magnetic door contact built for steel doors. It sits flush in the door and frame, giving a clean look while doing the job of reporting door open and closed status to a security system. It suits installers and businesses fitting steel doors who want a concealed contact.

Key features

• Recessed design gives a clean look and is made to meet the requirements of steel doors.
• The 3/4″ (19 mm) diameter body fits in a drilled hole.
• "Lock-in" mounting caps hold the contact in place.
• Standard gap in steel is 1/2″ (13 mm).
• 5 foot zip cord leads come standard.

Specifications

Brand: Honeywell Home

Model: 947-75WH

Product Type: Magnetic Contact

Color: White

Connectivity Technology: Wired

Mount Type: Recessed Mount

Diameter: 3/4″ (19 mm)

Length: 1.2″

Cable Length: 5′

Standard Gap (Steel): 1/2″ (13 mm)

Contact Type: SPST (Single Pole Single Throw)

Switch Type: SPST (Single Pole Single Throw)

Minimum Operating Temperature: -40°F

Application/Usage: Security System Sensors

Country of Origin: MX

RoHS Compliant: Not Evaluated

Installation notes

Drill clean, properly sized holes in the door and frame, and keep the magnet and contact aligned across the gap so the standard steel gap is not exceeded. Run the zip cord leads back to the panel zone, then walk-test the door to confirm the zone opens and closes reliably.
