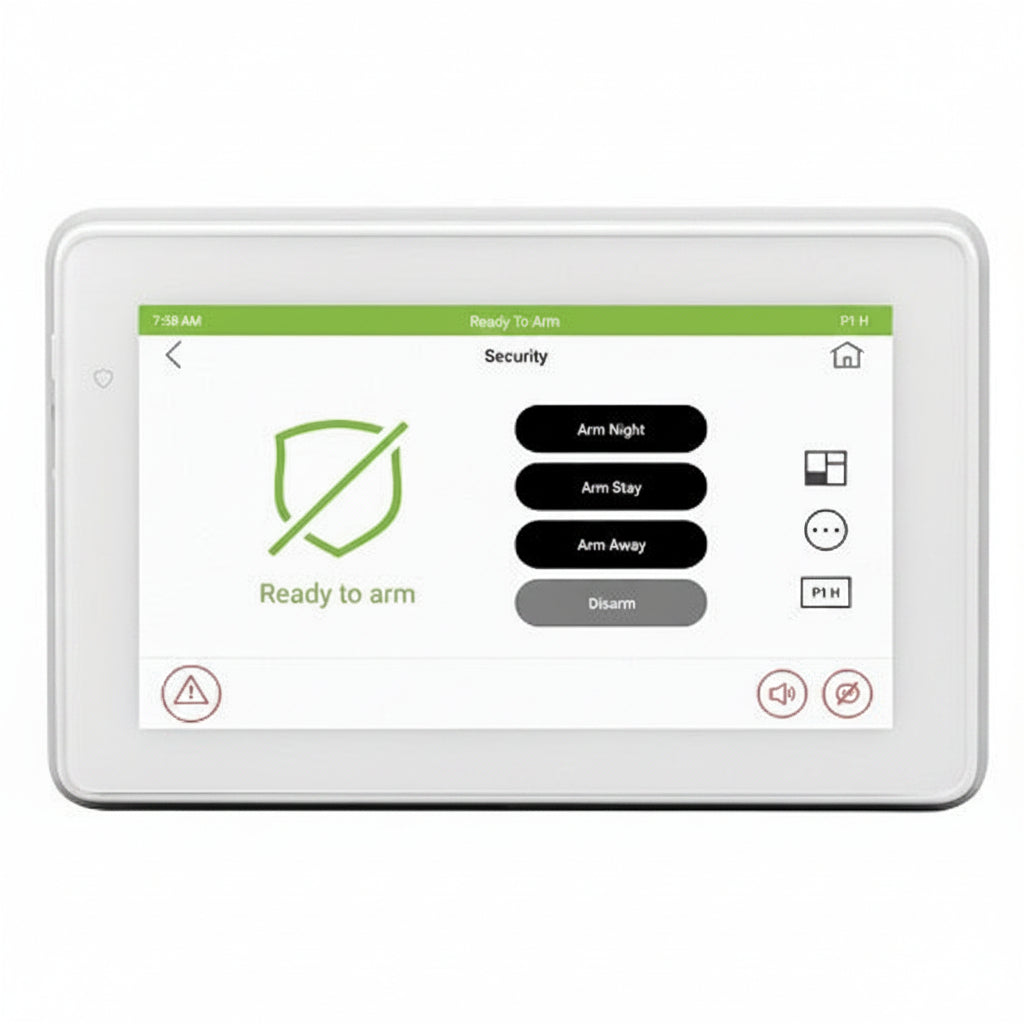

Honeywell Home 6290W 7" Color Touchscreen Keypad with Voice for VISTA Systems, (Replaces 6280S, 6280W)

The Honeywell Home 6290W is a 7″ color touchscreen keypad with voice for VISTA security systems, and it replaces the 6280S and 6280W. It handles day-to-day system control, including arming, disarming and zone bypassing, and it suits installers upgrading existing VISTA sites as well as new installs. Its tablet-like design sits only 1″ off the wall, and it announces system status, alarm type and affected zone by voice.

Key features

• The 7″ WSVGA display has a resolution of 1024 x 600, with clear icons and prompts.
• Voice annunciation reports system status, the type of alarm and the affected zone.
• Arming, disarming and zone bypassing are streamlined on the touchscreen.
• An event log records when the system is disarmed by employees, temporary guests or family members.
• The backplate is designed to make updating or retrofitting existing 6160 and 6280W installs easier.
• Software updates can be pushed from Resideo or loaded onsite through the SD card slot.

Specifications

Brand: Honeywell Home

Model: 6290W

Product type: Security Touchscreen Keypad

Product line: VISTA

Compatibility: VISTA-20P

Device supported: Control Panel

Color: White

Touchscreen: Yes

Display resolution: 1024 x 600

Input voltage: 12V DC

Height: 5.06″

Width: 7.94″

Depth: 0.76″

Installation type: Professional Installation

Country of origin: CN

Wiring: Standard four-wire connection: black ground, red +12VDC (aux power), green "Data in" to control panel, yellow "Data out" from control panel

Installation notes

Use the standard four-wire connection and double-check the data in and data out runs against the control panel before powering up. When replacing a 6160 or 6280W, check that the existing wiring and mounting location suit the new backplate.
