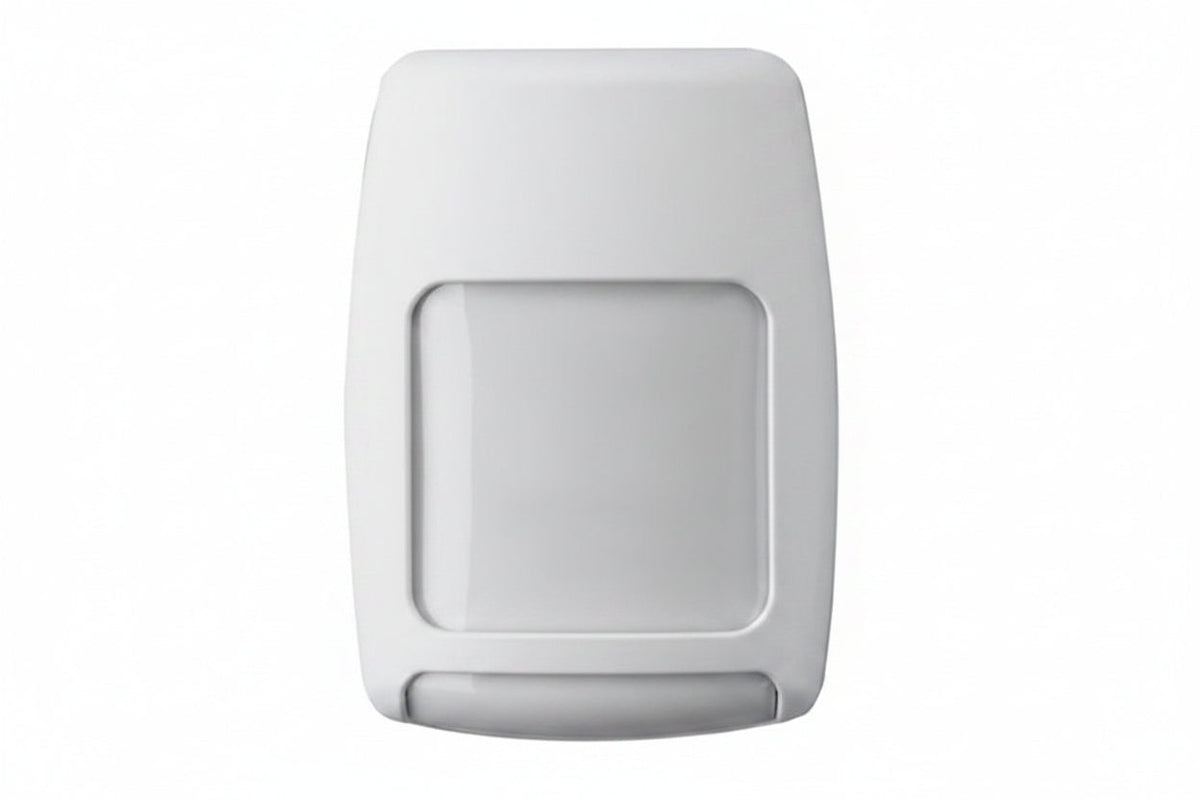

Honeywell Home 5800PIR-RES Entry-Level Wireless PIR Motion Sensor with Pet Immunity, 35' 40' Range

The Honeywell Home 5800PIR-RES is a wireless PIR motion sensor that detects movement for security systems, built for installers and homeowners who want a discreet, easy-to-fit detector. It covers a 35' x 40' pattern, ignores pets up to 80lb, and can be custom-painted to blend into an interior. Setup is quick, with no DIP switches or jumpers to set.

Key features

• Pet immunity extends to animals up to 80lb, which helps in homes with dogs or cats.
• An automatic walk test runs for ten minutes at power-up and then switches itself off, so it can't be left on by mistake and drain the batteries.
• The case opens easily with no PCB to install, and there are no mounting height adjustments to make.
• The look down option adds coverage right below the detector, and a back tamper switch is included.
• Batteries are user-replaceable and last 38% longer than those in the 5890PI.
• It operates down to -20° C (-4° F), so it suits unheated areas, and the black bug guard cuts false alarms from bright lights by 15%.

Specifications

Brand: Honeywell Home

Model: 5800PIR-RES

Product series: 5800PIR

Product type: Wireless motion sensor (PIR)

Coverage pattern: 35' x 40'

Pet immunity: Up to 80lb

Connectivity: Wireless

Compatibility: VISTA

Power source: Battery

Mount type: Ceiling mount

Color: White

Depth: 1.5″

Length: 1.5″

Operating temperature: Down to -20° C (-4° F)

Certifications: ETL Listed

Country of origin: MX

Installation notes

Place the sensor where its pattern covers the intended area, away from direct bright light that could shine into the lens. After mounting, use the ten-minute automatic walk test at power-up to confirm coverage before closing out the job.
