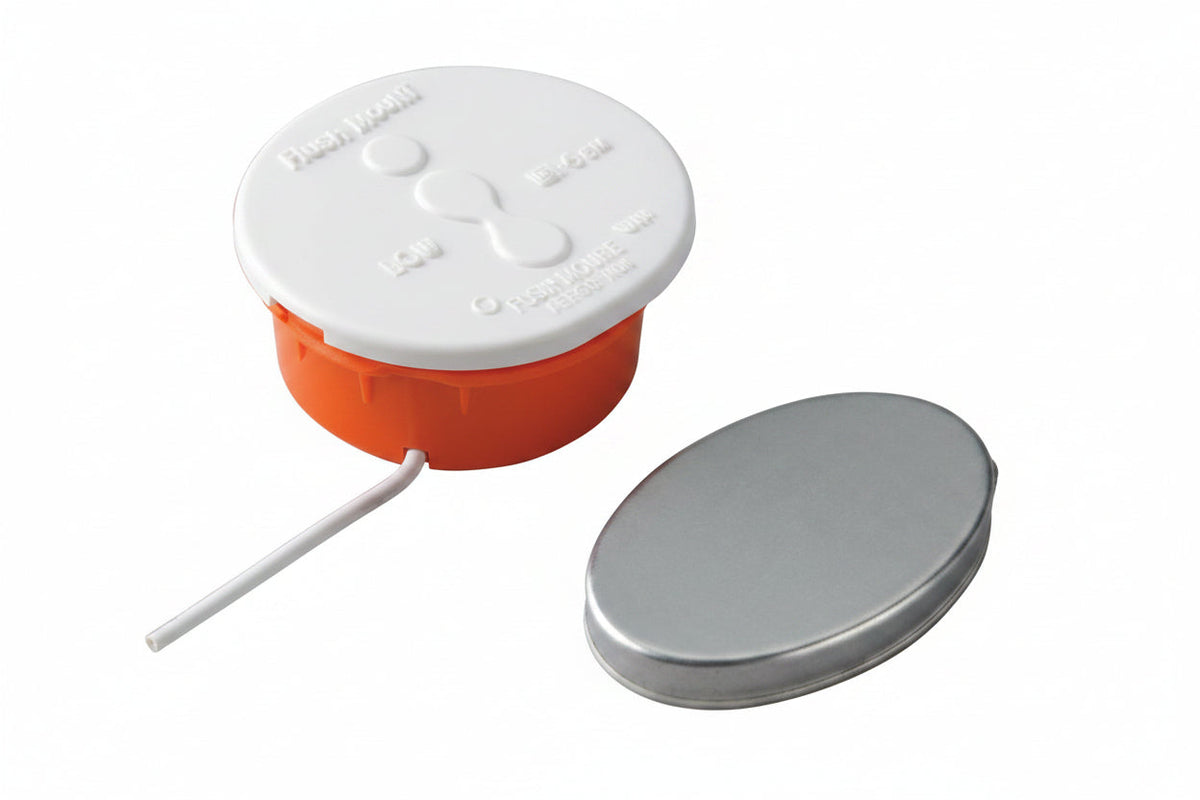

Honeywell Home 5800MICRA 1-Zone Wireless Recessed Window Transmitter

The Honeywell Home 5800MICRA is a 1-zone wireless recessed transmitter that monitors a window with a reed switch and magnet contact. It suits installers and homeowners who want concealed window protection on a 5800 Series wireless system. It is described as the smallest wireless recessed transmitter on the market, and it has a battery life of up to 10 years.

Key features

• It is the smallest wireless recessed transmitter on the market, so it stays out of sight once installed.
• The battery lasts up to 10 years.
• A rare earth flat magnet is included.
• Installers don't need to worry about voiding a window manufacturer's coverage.
• It uses a normally closed SPST contact.

Specifications

Brand: Honeywell Home

Model: 5800MICRA

Product Type: Magnetic Contact

Application/Usage: Security System Sensors

Compatibility: 5800 Series Receiver - Wireless

Connectivity Technology: Wireless

Mount Type: Recessed Mount

Form Factor: Recessed Mount

Diameter: 0.75″

Color: White

Switch Type: SPST (Single Pole Single Throw)

Contact Type: NC (Normally Closed)

Power Source: Battery

Battery Size: CR1620

Battery Type: Lithium

Battery Chemistry: Lithium (Primary)

Battery Life: 10-Year

Minimum Operating Temperature: 10°F

Country of Origin: CA

Installation notes

Line up the transmitter and the magnet closely across the gap between the window frame and sash, and test the zone with the window closed and open before you finish. Enroll the transmitter with the 5800 Series receiver and check signal strength from its final location before you seal or conceal anything.
