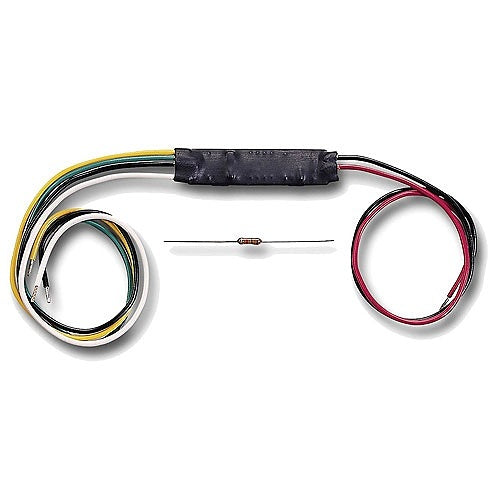

Honeywell Home 4193SN V-Plex Micro-Miniature 2-Zone Adapter/Expander

The Honeywell Home 4193SN is a micro-miniature V-Plex two-zone adapter/expander that lets conventional hardwired contact devices connect to a V-Plex addressable system. It suits professional installers adding detectors or contacts to commercial addressable systems, including setups built around the VISTA-120 control panel. Its small size, built-in serial number for addressing, and mix of one supervised zone and one unsupervised zone are what stand out.

Key features

• Serial mode is programmable.
• The left zone is EOLR supervised and works with open or closed circuit sensors.
• The right zone is unsupervised and works with closed circuit sensors.
• It is UL listed for fire and burglary applications.
• A built-in serial number provides addressing.
• It makes any hardwired contact device V-Plex ready.

Specifications

Brand: Honeywell Home

Model: 4193SN

Product Line: V-Plex

Product Series: V-Plex

Product Type: Interface Module

Compatibility: Honeywell VISTA-120 Alarm Control Panel

Installation Type: Professional Installation

Country of Origin: MX

RoHS Compliant: Not Evaluated

Installation notes

Wire the supervised left zone with its end-of-line resistor at the far end of the device loop, and keep the unsupervised right zone for closed circuit sensors only. Record the module's serial number against its zone location during commissioning so it is easy to find when programming and testing the system.
