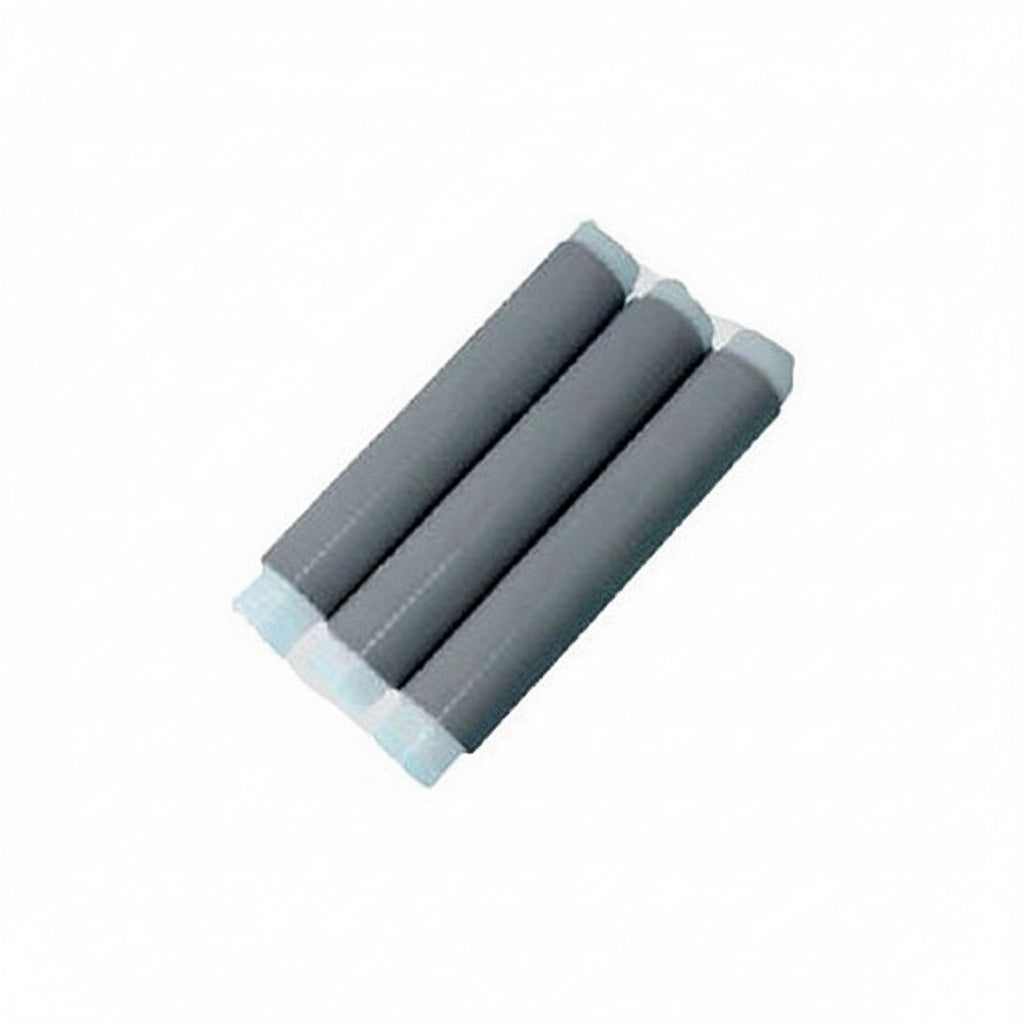

Honeywell BDA BDA-WPK-ATBC40_01 Weatherproofing Silicone Cold Shrink for EOL Assembly

The Honeywell BDA-WPK-ATBC40_01 is a gray silicone rubber cold shrink weatherproofing sleeve for end-of-line (EOL) assemblies. It seals the connection against moisture and sunlight, which suits installers protecting outdoor or exposed low-voltage terminations. The silicone is UV resistant and flame retardant to UL94-HB, and two hose clamps come in the package.

Key features

• Made from weatherproof silicone rubber to protect EOL assemblies from the elements.
• UV resistant, so it is suited to exposed locations.
• Flame retardant to UL94-HB.
• Listed as an extra duration product.
• Measures 9.84″ long, which suits the EOL assembly it covers.
• Includes 2 hose clamps.

Specifications

Brand: Honeywell

Model: BDA-WPK-ATBC40_01

Product Type: Sealing Tape

Material: Silicone Rubber

Color: Gray

Features: UV Resistant

Width: 1.57″

Depth: 0.39″

Length: 9.84″

Package Contents: Weatherproofing Silicone Coldshrink for EOL Assembly, 9.8″L; 2 x Hose Clamp

Country of Origin: CN

Installation notes

Complete and test the EOL connection before fitting the sleeve, so you do not have to remove it later. Make sure the surfaces are clean and dry, and secure the sleeve with the supplied hose clamps so the seal stays tight outdoors.
