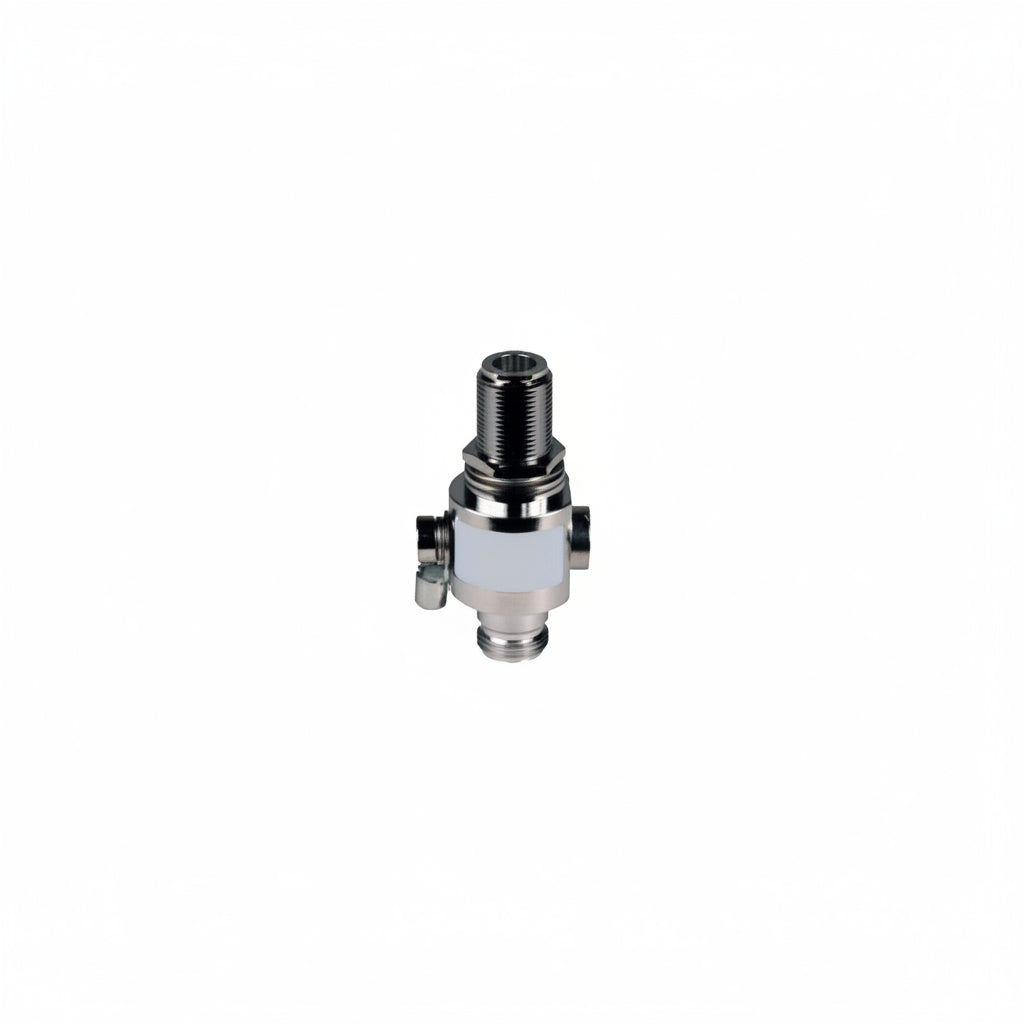

Honeywell BDA BDA-P8AX09-6G-N/FF Fiplex Coaxial Surge Protector

Price: $213.00Model: BDA-P8AX09-6G-N/FF
In stock — ready to ship Free US shipping on orders $500+ · $287.00 to go
Need a project quote?
HoneywellShop all Honeywell →
Honeywell BDA BDA-P8AX09-6G-N/FF Fiplex Coaxial Surge Protector
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy

About the BDA-P8AX09-6G-N/FF

The Honeywell BDA-P8AX09-6G-N/FF is a coaxial surge protector module from the Fiplex line, built to protect coaxial dataline connections from surges. It offers bi-directional protection with a 50 Ohm impedance, which makes it a fit for installers working on fire-sector systems. Its insertion loss is under 0.2 dB, and its 70W power rating is listed in the specifications.

Key features

  • Protects the coaxial line in both directions.
  • Matches a 50 Ohm impedance.
  • Insertion loss stays below 0.2 dB.
  • Covers a frequency range of DC-7.
  • Carries a 70W power rating.

Specifications

Brand: Honeywell

Model: BDA-P8AX09-6G-N/FF

Product Type: Surge Protector Module

Product Line: Fiplex

Dataline Protection: Coaxial

Sector: Fire

Impedance: 50 Ohms

Insertion Loss: < 0.2 dB

Frequency Range: DC-7

Power Handling: 70W

Country of Origin: CN

Installation notes

Place the module in the coaxial run where the cable enters the equipment, and keep the connections tight and clean. Follow the manufacturer's grounding guidance, since a surge protector only works as well as its ground path.

Specifications

BrandHoneywell
ModelBDA-P8AX09-6G-N/FF
Product typeCoaxial Surge Protector

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
