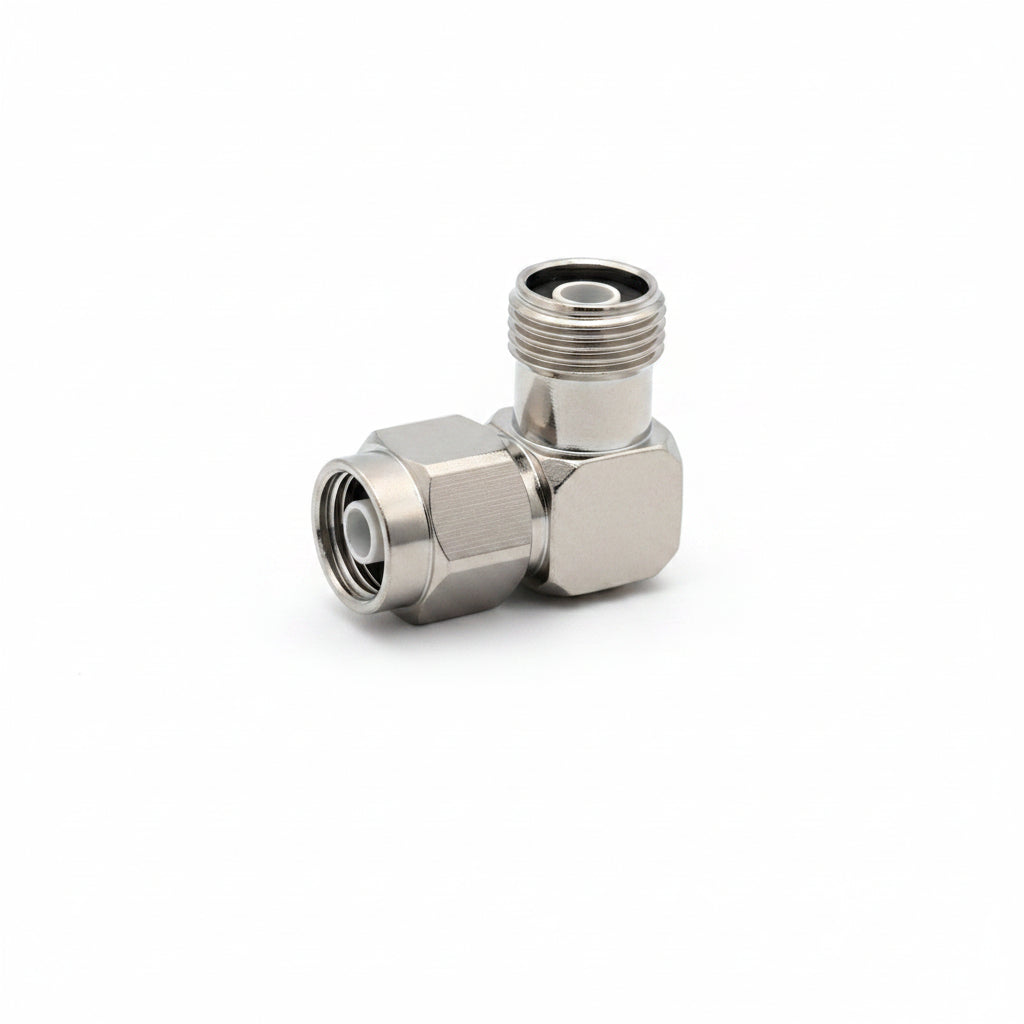

Honeywell BDA BDA-NMRA-NFRA Right Angle Male to Female Adapter

The Honeywell BDA-NMRA-NFRA is a right angle male to female RF coaxial adapter that changes the direction of a coax run at the connection point. It suits installers and technicians who need to turn a cable 90° in a tight space while keeping a 50 ohm path. It is rated for use from 0 to 6GHz, with a VSWR of 1.25 or lower.

Key features

• Right angle body redirects the cable at the connector.
• Male to female configuration adapts between mating connectors.
• Nominal impedance is 50 ohms.
• Covers a frequency range of 0 to 6GHz.
• VSWR is 1.25 or lower.
• Insulation resistance at the contact is 5000MΩ or higher.

Specifications

Brand: Honeywell

Model: BDA-NMRA-NFRA

Product type: RF Coaxial Adapter

Impedance: 50 ohms

Frequency range: 0～6GHz

VSWR: ≤1.25

Insulation resistance (contact): ≥5000MΩ

Country of Origin: CN

Installation notes

Make sure the rest of the signal chain is also 50 ohm so the impedance stays matched. Leave enough clearance for the right angle body and avoid putting side strain on the mating connector.
