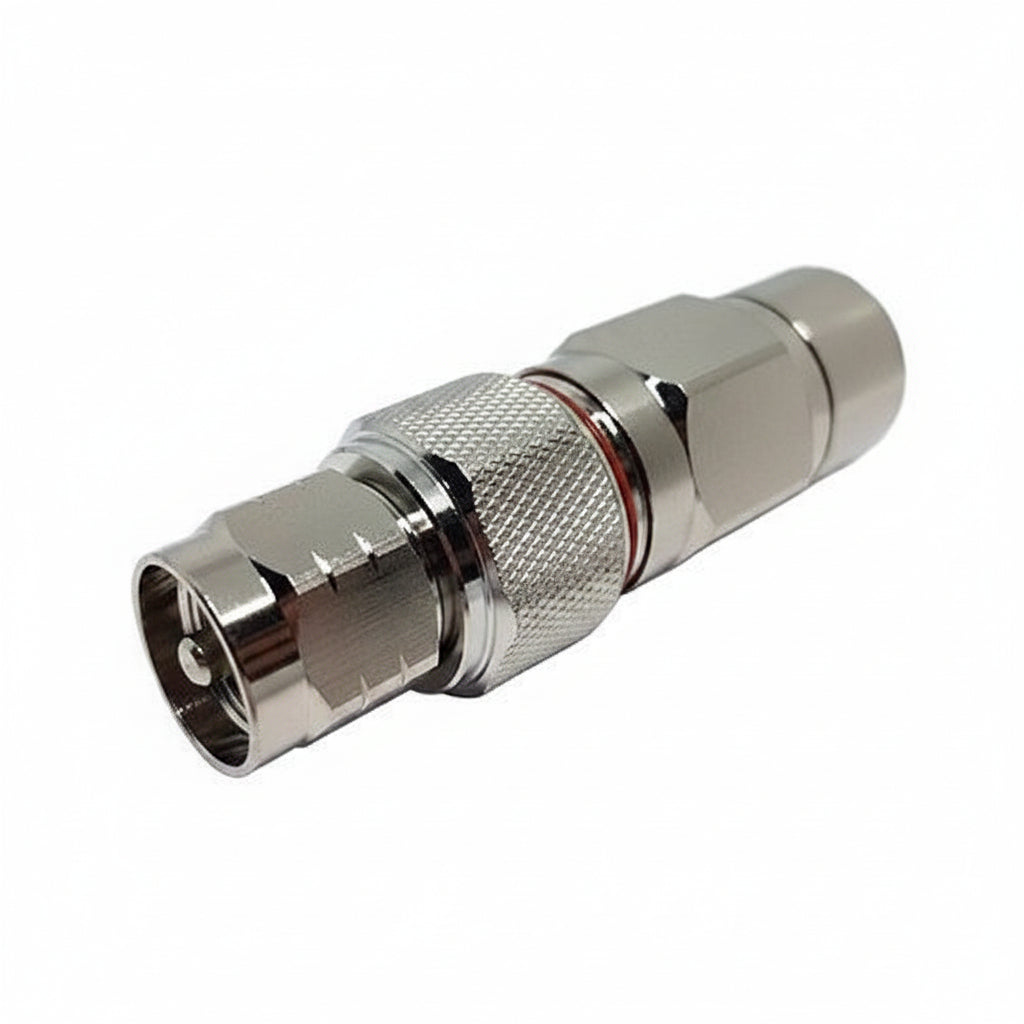

Honeywell BDA BDA-NMP01250 Trilogy Aircell Male Connector for 1/2" Plenum and In-Conduit Cables

The Honeywell BDA-NMP01250 is a straight N-male antenna connector for terminating 1/2″ Trilogy Aircell plenum and in-conduit coaxial cable. It suits installers building out coax runs that need a 50 ohm connection, with a frequency range of 0.3 MHz to 6 GHz. It ships in lots of 10, so one order covers several terminations.

Key features

• Sold in lots of 10 connectors.
• Uses an N male interface with a straight body.
• Operates across a 0.3 MHz to 6 GHz frequency band.
• Rated for 0.6 kW average power.
• Presents a 50 ohm impedance.
• Made for 1/2″ plenum and in-conduit Trilogy Aircell cable.

Specifications

Brand: Honeywell

Model: BDA-NMP01250

Product Type: Antenna Connector

Connector Gender: Male

Connector Type: Male

Body Style: Straight

Operating Frequency Band: 0.3 MHz to 6 GHz

Average Power: 0.6 kW

Impedance: 50 ohms

Color: Silver

Quantity: Lots of 10

Installation notes

Prepare the cable end cleanly and follow the manufacturer's termination instructions so the center conductor and shield seat correctly. Keep the straight body free of sharp bends at the connection, and check the finished termination before connecting to the antenna or equipment.
