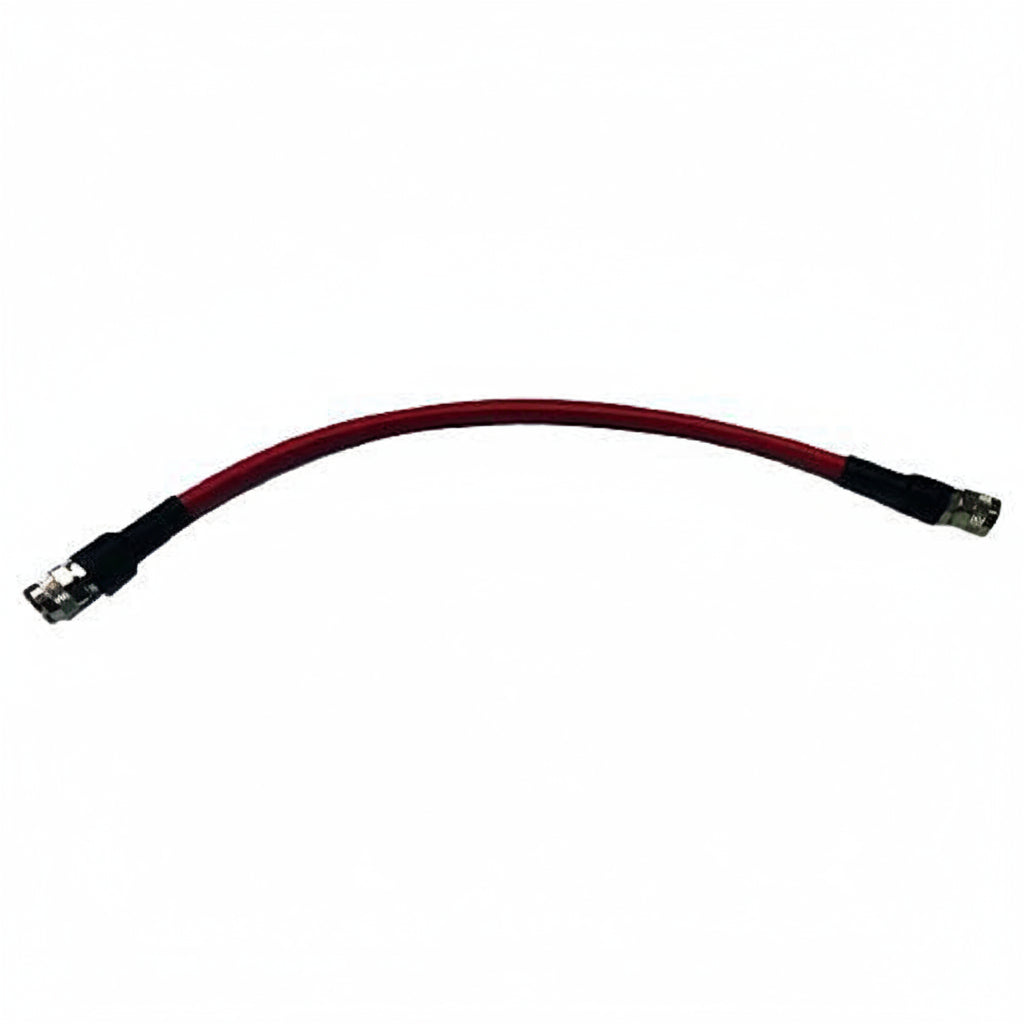

Honeywell BDA BDA-NM-RN4P-10-NM Coaxial Male to Male Plenum Cable Jumper, PTFE, UL Listed, 37" (93.98 cm), Red

The Honeywell BDA BDA-NM-RN4P-10-NM is a coaxial jumper cable with an N male connector on each end, built with plenum-rated, PTFE-insulated cable and UL listed. It works as a short 50 ohm link between RF equipment, such as in a bi-directional amplifier (BDA) setup, and suits installers who need a plenum-rated jumper. The red jacket and 37″ (93.98 cm) length make it easy to identify and place.

Key features

• Uses RN-400-P cable for plenum-rated runs.
• Has N male connectors on both ends.
• Measures 37″ (93.98 cm) in length.
• Presents a 50 ohm impedance.
• Covers a frequency range of 0 to 6 GHz.

Specifications

Brand: Honeywell

Model: BDA-NM-RN4P-10-NM

Cable type: RN-400-P

Connectors: N male both ends

Length: 37″ (93.98 cm)

Impedance: 50 ohms

Frequency range: 0 - 6 GHz

Color: Red

Insulation: PTFE

Listing: UL Listed

Installation notes

Match the jumper's N male connectors to the N female ports on your equipment, and tighten them firmly by hand without over-torquing. Avoid sharp bends and strain on the connectors when routing the cable, so it sits naturally between the two devices.
