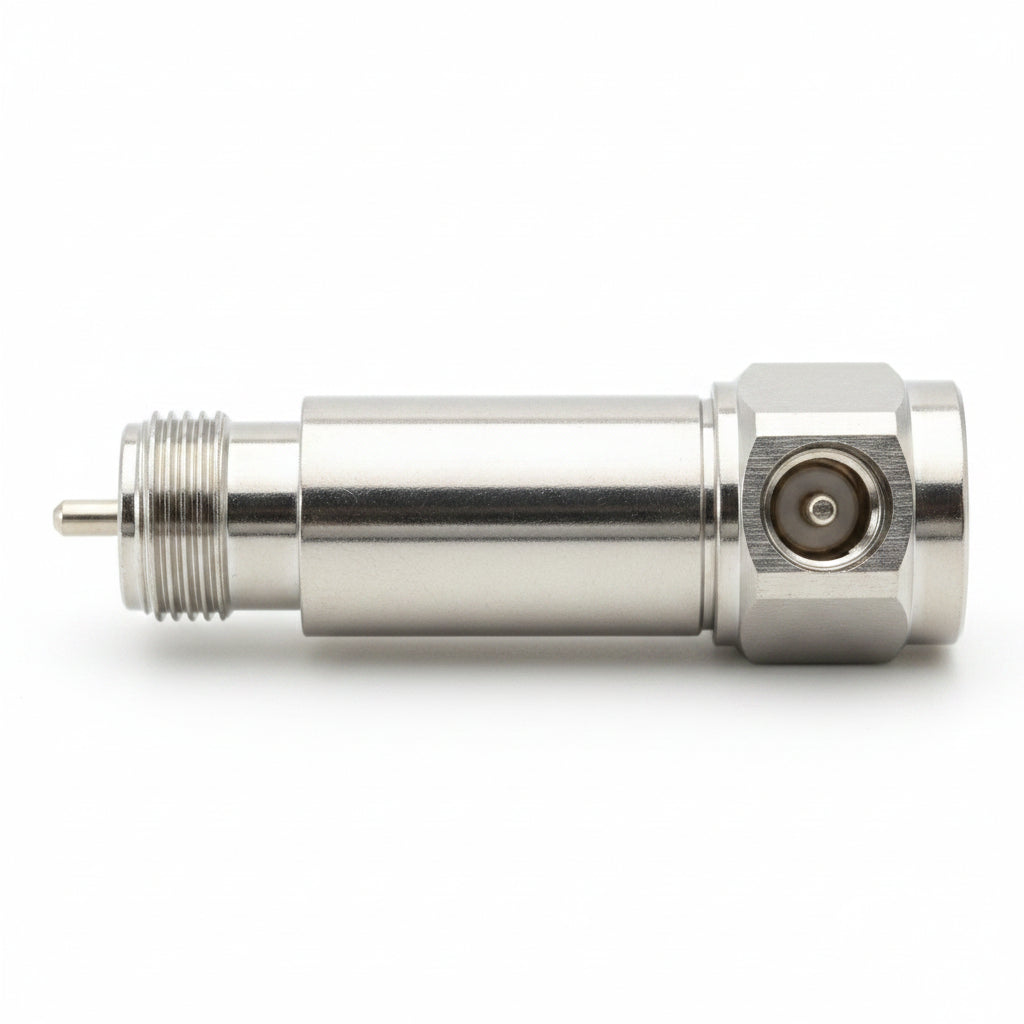

Honeywell BDA BDA-NATTEN-0515 Fiplex Attentuator, 5W, 15dB, N-Type Connectors

Price: $94.84Model: BDA-NATTEN-0515
In stock — ready to ship Free US shipping on orders $500+ · $405.16 to go
Need a project quote?
HoneywellShop all Honeywell →
Honeywell BDA BDA-NATTEN-0515 Fiplex Attentuator, 5W, 15dB, N-Type Connectors
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy

About the BDA-NATTEN-0515

The Honeywell BDA-NATTEN-0515 is a passive coaxial signal attenuator from the Fiplex product line, rated for 5W with a nominal impedance of 50 ohms. It suits installers working on Honeywell BDA systems who need a fixed 15dB reduction in an RF line. N male connectors come standard, and other connector types are available on request.

Key features

  • Passive design in a coaxial configuration.
  • Nominal impedance is 50 ohms.
  • Power level is 5W.
  • Attenuation is 15dB, as shown in the product title.
  • N male connectors are standard.
  • Other connector types are available upon request.

Specifications

Brand: Honeywell

Model: BDA-NATTEN-0515

Product Type: Signal Attenuator

Product Line: Fiplex

Attenuation: 15dB

Power Level: 5W

Nominal Impedance: 50 ohms

Connectors: N male (standard)

Maximum Frequency: 3.00GHz

Country of Origin: CN

Installation notes

Fit the attenuator in line with the 50 ohm coax run and keep the connections clean and fully tightened to avoid added losses. Keep the signal power within the 5W rating, and check signal levels after installation to confirm the attenuation suits the system.

Specifications

BrandHoneywell
ModelBDA-NATTEN-0515
Product typeRF Attenuator

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
