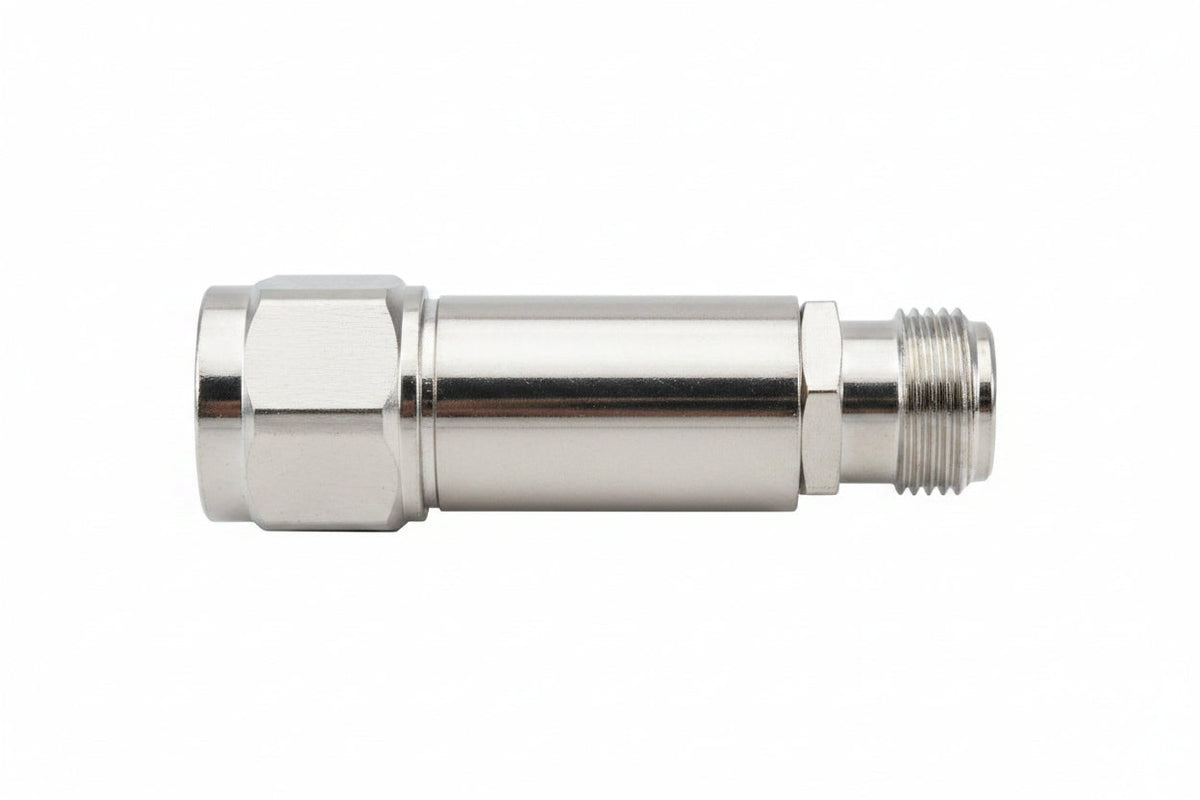

Honeywell BDA BDA-NATTEN-0505 Fiplex Attentuator, 5W, 5dB, N-Type Connectors

Price: $94.86Model: BDA-NATTEN-0505
In stock — ready to ship Free US shipping on orders $500+ · $405.14 to go
Need a project quote?
HoneywellShop all Honeywell →
Honeywell BDA BDA-NATTEN-0505 Fiplex Attentuator, 5W, 5dB, N-Type Connectors
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy

About the BDA-NATTEN-0505

The Honeywell BDA-NATTEN-0505 is a passive coaxial signal attenuator from the Fiplex product line, rated for 5W and 5dB. It reduces signal level in a 50 ohm coaxial run, which suits installers working on Honeywell BDA systems. It comes with N male connectors as standard, and other connector types can be requested.

Key features

  • Passive device with no power supply needed to operate.
  • Built in a coaxial configuration for inline use.
  • Nominal impedance is 50 ohms.
  • Power level is 5W.
  • N male connectors are standard on this model.
  • Other connector types are available upon request.

Specifications

Brand: Honeywell

Model: BDA-NATTEN-0505

Product Type: Signal Attenuator

Product Line: Fiplex

Attenuation: 5dB

Power Level: 5W

Nominal Impedance: 50 ohms

Connectors: N male (standard)

Maximum Frequency: 3.00GHz

Country of Origin: CN

Installation notes

Install the attenuator inline in the coaxial run and tighten the N connectors firmly so the connection stays secure. Keep it in a location with some airflow and avoid putting strain on the cable, since the body carries the connector weight.

Specifications

BrandHoneywell
ModelBDA-NATTEN-0505
Product typeRF Attenuator

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
