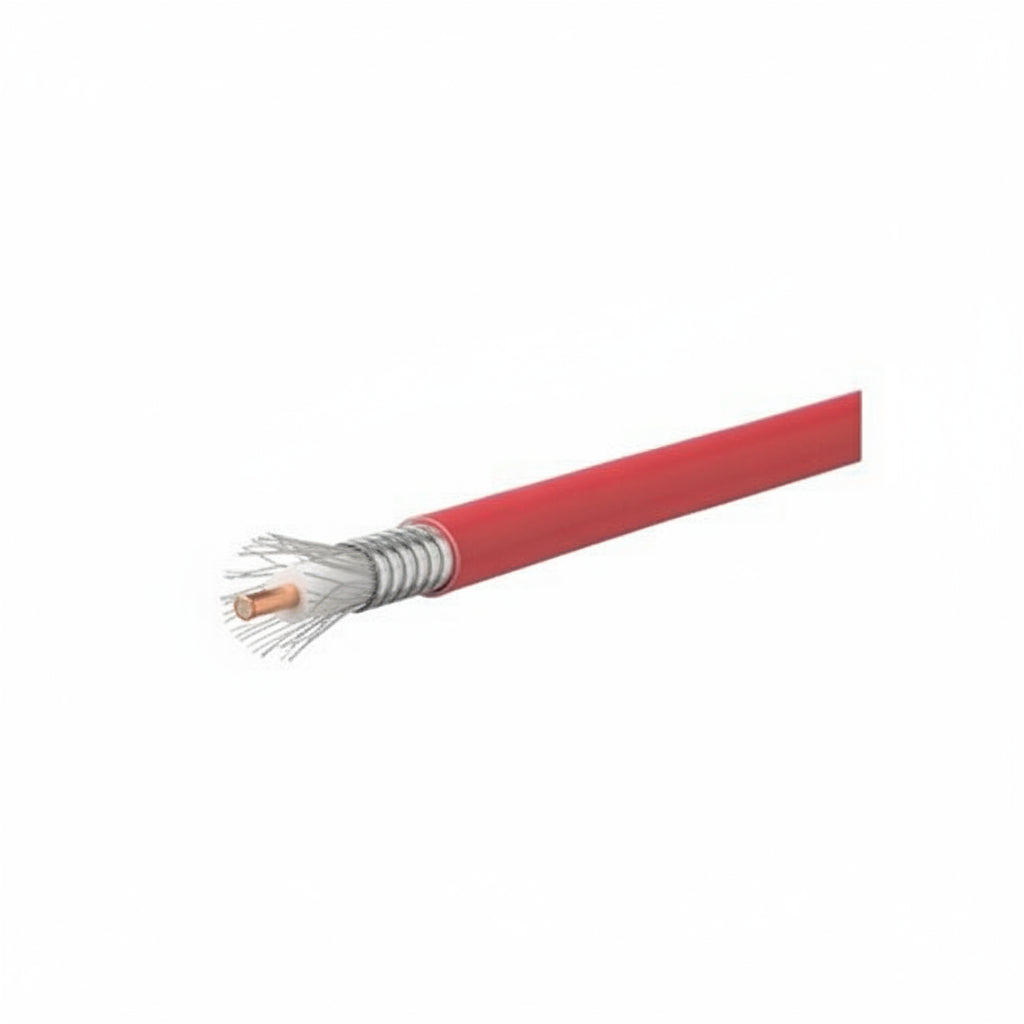

Honeywell BDA BDA-AP6012J50RD-1 Trilogy AirCell 1/2" Plenum Fire Cable with Metal Raceway, CMP, NFPA-262, UL-444, CSA, FT6, 1' (0.304m), Metal Raceway, Reel, Red

The Honeywell BDA BDA-AP6012J50RD-1 is a Trilogy AirCell 1/2″ plenum fire cable in red, supplied on a reel with a metal raceway in a 1′ (0.304 m) length. It is a 50 ohm coaxial cable for runs that need a plenum-rated jacket, carrying CMP, NFPA-262, UL-444, CSA and FT6 ratings. It suits installers running RF signal paths up to 10 GHz, and it stands out for its 35 kW peak power rating and 94% velocity of propagation.

Key features

• Supports frequencies up to 10 GHz.
• Handles a peak power of 35 kW.
• Typical VSWR is 1.13 (24.3 dB) across 700-960 MHz and 1700-2200 MHz.
• Velocity of propagation is 94%.
• Pairs a copper-clad aluminum center conductor with a corrugated aluminum outer conductor.
• Complies with RoHS 2011/65/EU.

Specifications

Brand: Honeywell

Model: BDA-AP6012J50RD-1

Product Type: Fire Cable

Color: Red

Impedance: 50 ohms

Rating: CMP, NFPA-262, UL-444, CSA, FT6

Length: 1′ (0.304 m)

Packaging: Reel, Metal Raceway

Country of Origin: US

Installation notes

Follow the manufacturer's bend radius and pulling guidance, and avoid kinking the corrugated outer conductor during the pull. Use connectors matched to this cable type and 50 ohm impedance, and check the finished run before connecting the system.
