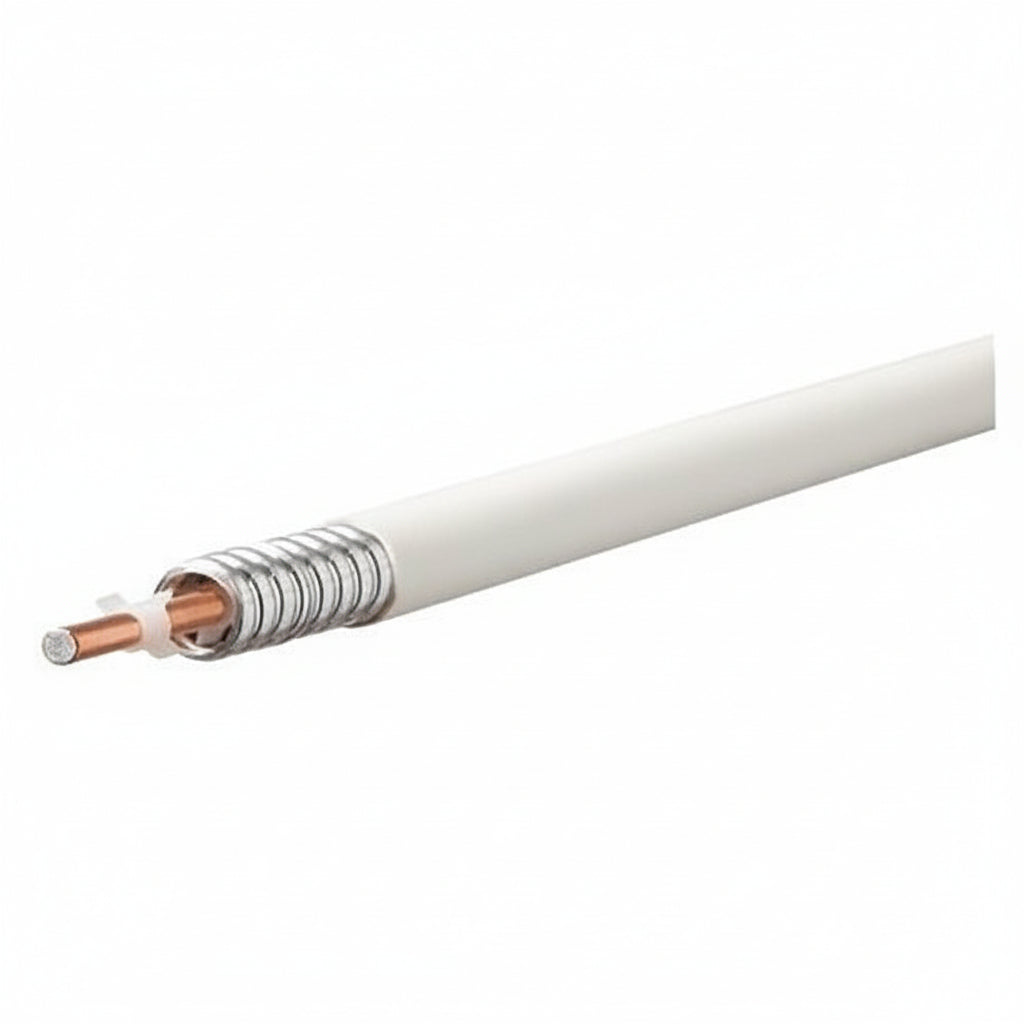

Honeywell BDA BDA-AP6012J50-1 Trilogy AirCell 1/2" Plenum Fire Cable, CMP, NFPA-262, UL-444, FT6, 1' (0.304m), Reel, White

The Honeywell BDA-AP6012J50-1 is a Trilogy AirCell 1/2″ plenum-rated coaxial cable with a white jacket, sold here by the foot on a reel. It carries RF signals between radios, antennas and distributed antenna system (DAS) components in spaces where plenum-rated cable is required. Installers will like its 50 ohm impedance, 10 GHz maximum frequency and 94% velocity of propagation.

Key features

• Supports signals up to a maximum frequency of 10 GHz.
• Carries a peak power rating of 35 kW.
• Typical VSWR is 1.13 (24.3 dB) across 700-960 MHz and 1700-2200 MHz.
• Velocity of propagation is 94%.
• Presents a 50 ohm impedance.
• Rated CMP and FT6, and listed to NFPA-262 and UL-444 per the product title.

Specifications

Brand: Honeywell

Model: BDA-AP6012J50-1

Type: Plenum Coaxial Cable

Cable Size: 1/2″

Rating: CMP, FT6, NFPA-262, UL-444

Length: 1′ (0.304 m)

Packaging: Reel

Impedance: 50 ohm

Color: White

Country of Origin: US

Installation notes

Plan your runs and cut lengths before pulling, and keep bends gentle so the cable is not kinked or crushed. Use connectors that match the cable and a 50 ohm system, and check the finished run before you connect the radio equipment.
