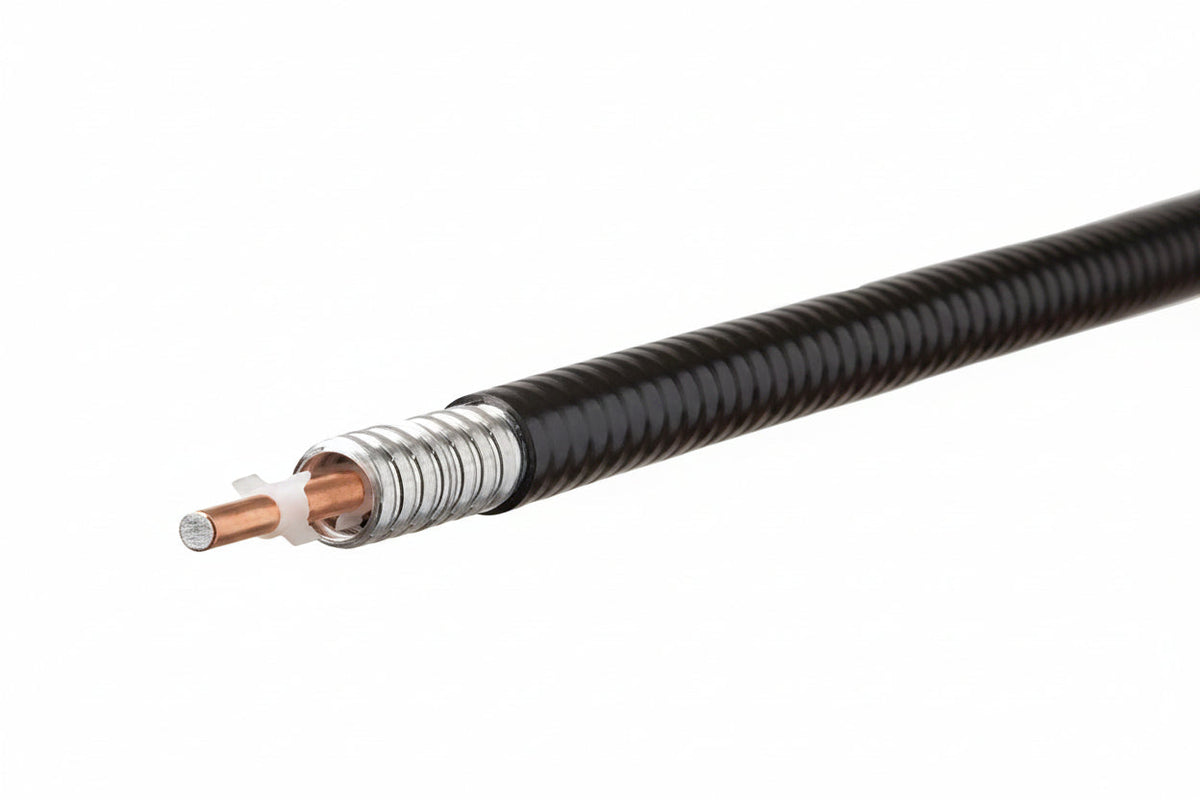

Honeywell BDA BDA-AC012J50-1 Trilogy Aircell 1/2" In-Conduit Cable, RoHS 2011, 1' (0.304m), Reel, Black

The Honeywell BDA-AC012J50-1 is a Trilogy Aircell 1/2″ in-conduit coaxial cable in black, supplied on a reel and sold in 1' (0.304m) lengths. It carries RF signals for installers working on distributed antenna and in-building wireless runs. A 50 ohm impedance, 94% velocity of propagation and 10 GHz maximum frequency make it a good fit for cellular-band cabling.

Key features

• Rated for use up to a maximum frequency of 10 GHz.
• Peak power rating is 35 KW.
• Typical VSWR is 1.13 (24.3 dB) across 700-960 MHz and 1700-2200 MHz.
• Velocity of propagation is 94%.
• Nominal impedance is 50 ohms.

Specifications

Brand: Honeywell

Model: BDA-AC012J50-1

Product type: In-Conduit Coaxial Cable

Size: 1/2″

Length: 1' (0.304m)

Packaging: Reel

Color: Black

Impedance: 50 ohm

Maximum frequency: 10 GHz

Peak power rating: 35 KW

Velocity of propagation: 94%

Typical VSWR (700-960 / 1700-2200 MHz): 1.13 (24.3 dB)

RoHS: 2011

Country of origin: US

Installation notes

Pull the cable through conduit without kinking it or exceeding the manufacturer's bend radius, and keep pulling tension low. Match connectors to the cable type, and test return loss or VSWR across the installed run before commissioning.
