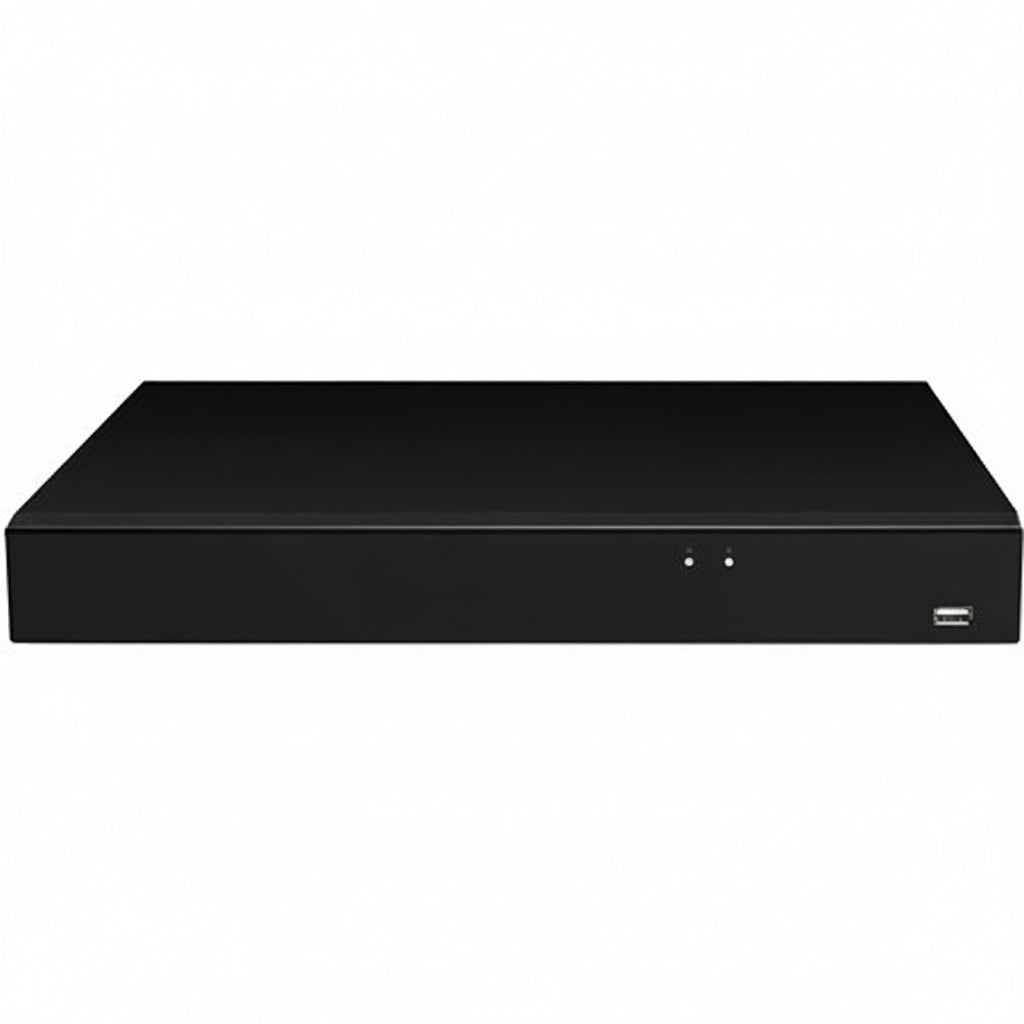

AVYCON AVR-NSV16P16 16-Channel 4K UHD Network Video Recorder, No HDD

The AVYCON AVR-NSV16P16 is a 16-channel network video recorder for IP camera systems that records and plays back at up to 8MP (4K). It is sold without a hard drive, so it suits installers and businesses who want to choose their own storage, with room for up to two drives. It handles H.265 decoding, takes 112Mbps of total input bandwidth, and is NDAA compliant.

Key features

• Decodes H.265 video and supports preview and playback at up to 8MP (4K).
• Accepts up to 112Mbps of input bandwidth across its 16 channels.
• Holds up to two hard drives, with a combined capacity of up to 32TB.
• Offers full remote viewing over the Internet through CMS, IE, Firefox, Chrome or Mac Safari.
• Connects to the AVY Mobile One app by scanning a P2P QR code, and can save pictures and video to Dropbox.
• Monitors hard drive health with S.M.A.R.T. support.

Specifications

Brand: AVYCON

Model: AVR-NSV16P16

Product Type: Network Video Recorder (NVR)

Product Line: Diversity

Number of Channels: 16

Bandwidth: 112Mbps

Maximum Frame Rate: 180fps

Recording Formats: 4K

Video Formats: H.264

Maximum Resolution: 1280 x 720

Hard Drive Capacity: 8TB

Storage Capacity: 8TB

Connectivity Technology: Wired

Ethernet: Yes

HDMI: Yes

Number of USB Ports: 1

Remote Management: Yes

Power Consumption: 5W

NDAA Compliant: Yes

Width: 9.4″

Depth: 12.8″

Height: 1.8″

Country of Origin: CN

Installation notes

Fit your own hard drives before commissioning, since the unit ships without one, and confirm the drives are detected and healthy in the S.M.A.R.T. status. Leave some clearance around the recorder for airflow and use wired Ethernet to the camera network.
