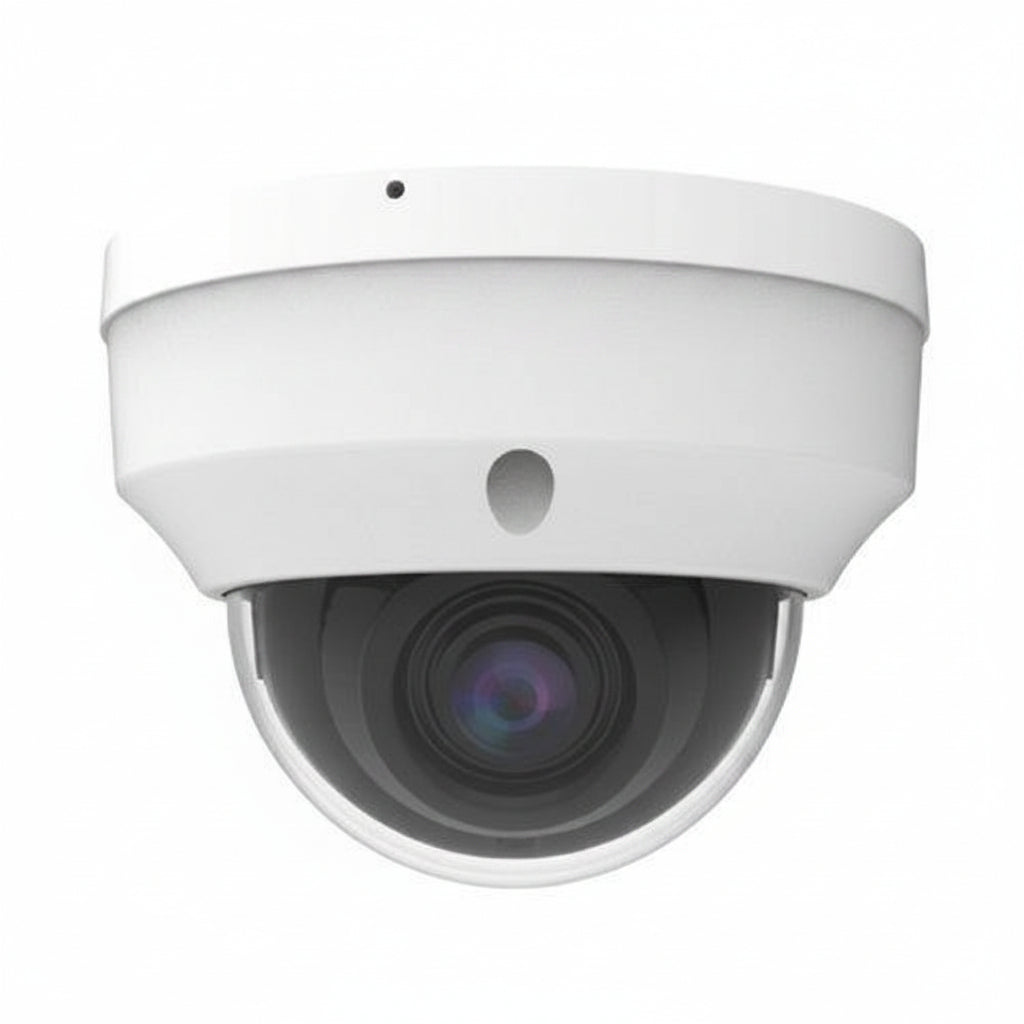

AVYCON AVC-NPV51F28 5MP IR Vandal Dome IP Camera, 2.8mm Fixed Lens, White

The AVYCON AVC-NPV51F28 is a 5MP IR vandal dome IP camera for outdoor video surveillance, built for installers and businesses that need a tamper-resistant camera in a white housing. It pairs a fixed 2.8mm lens with infrared night vision, IK10 impact protection and IP67 ingress protection. It can be powered by PoE or 12V DC and records to a built-in microSD slot.

Key features

• Captures 5MP video at up to 2880x1620 and 30fps.
• Encodes in H.265+/H.265, H.264+/H.264 and MJPEG.
• Handles difficult lighting with Day and Night auto ICR, 3D DNR, WDR, HLC, BLC and ROI encoding.
• Includes intelligent analytics.
• Stores video and still images locally on a microSD card of up to 256GB.
• Runs on DC12V or PoE power.

Specifications

Model: AVC-NPV51F28

Brand: AVYCON

Product line: InfiniteStar

Product type: Network Camera

Form factor: Dome

Color: White

Effective resolution: 5MP

Maximum resolution: 2880x1620

Maximum frame rate: 30fps

Image sensor: CMOS

Lens type: Fixed

Focal length: 2.8mm

Maximum aperture: F1.6

Lens mount: M12

Field of view: Diagonal

Shutter speed: 1/5 second to 1/20000 second

Wide dynamic range: Yes

Night vision: Yes, infrared (IR), 98′

Indoor/outdoor: Outdoor

Ingress protection: IP67

Impact protection: IK10

Operating temperature: -22°F to 131°F

Network: RJ-45

Connectivity: Wired

Input voltage: 12V DC

Storage: Memory card (microSD)

Remote management: Yes

Cloud capabilities: Cloud managed

Mount type: Junction box mount

Diameter: 4.5″

Weight: 11.20 oz

Country of origin: CN

Package contents: 5MP H.265 Fixed Vandal Dome Network Camera, junction box mount, microSD memory card

Installation notes

Mount the camera to a junction box and seal the cable entry to maintain the outdoor weather rating. Because the lens is fixed, aim and frame the shot before final tightening, and keep the camera clear of reflective surfaces close to the dome that could bounce infrared light back into the image.
