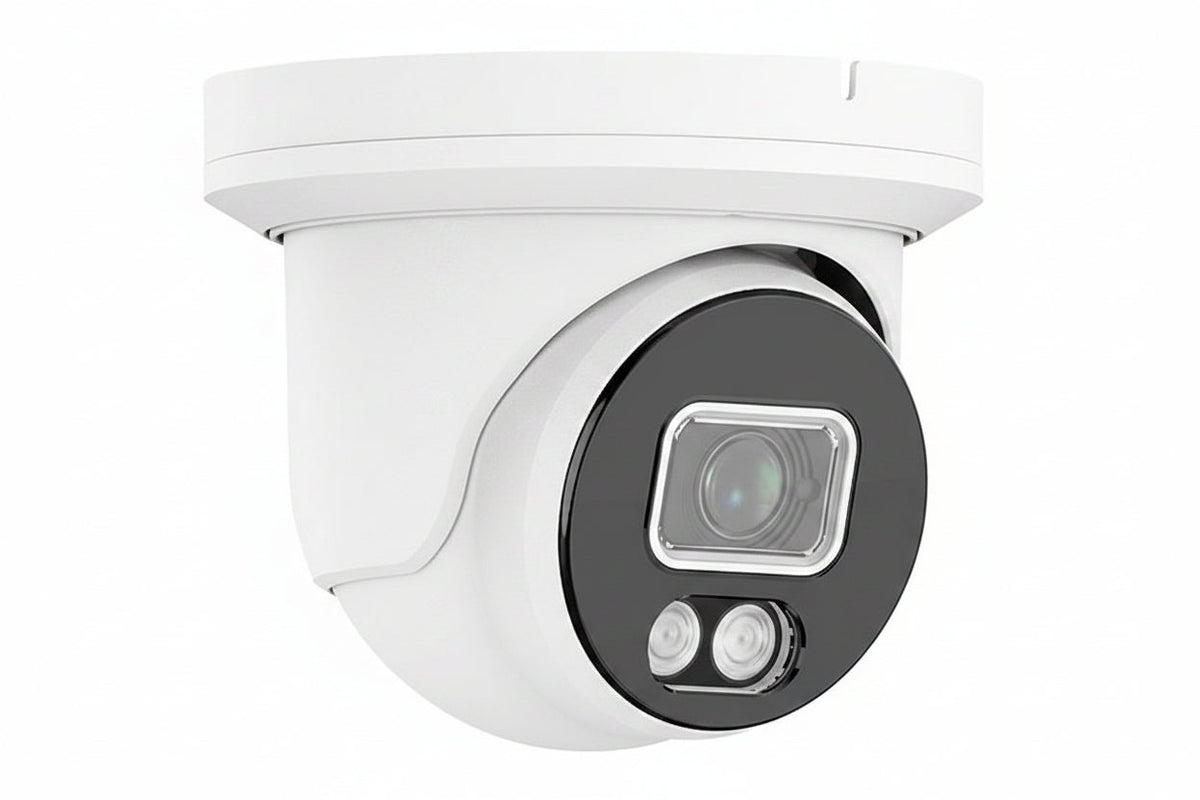

AVYCON AVC-NCE51F28 Diversity Series InfiniteColor 5MP H.265 IR Turret IP Camera, 2.8mm Lens, NDAA Compliant, White

The AVYCON AVC-NCE51F28 is a 5MP wired IP turret camera from the Diversity Series, built around AVYCON's InfiniteColor technology and H.265 encoding. It suits installers and businesses that need a fixed 2.8mm camera with night vision, a built-in microSD card slot and NDAA compliance. The IP67 rating and Smart IR illumination make it a fit for both indoor and outdoor ceiling-mount positions.

Key features

• True Day and Night ICR with Smart IR illumination for viewing in low light.
• Triple-stream support and multiple streaming options for flexible viewing and recording.
• 3D DNR, True WDR, HLC, BLC and ROI encoding help with image quality in difficult lighting.
• A built-in microSD card slot allows storage on the camera itself.
• Remote access is supported from Windows, macOS, iOS and Android.
• The weatherproof design is NDAA compliant.

Specifications

Model: AVC-NCE51F28

Brand: AVYCON

Product type: Network Camera

Form factor: Turret

Color: White

Effective camera resolution: 5MP

Maximum video resolution: 2592 x 1944

Maximum frame rate: 30fps

Image sensor type: CMOS

Lens type: Fixed

Focal length: 2.8mm

Lens mount type: M12

Field of view: Diagonal

Night vision: Yes

Night vision type: Dual Illumination (IR + Visible)

Night vision distance: 98′

Number of IR LEDs: 4

Wide dynamic range: Yes

Shutter speed: 1/5 second to 1/20000 second

Storage type: Memory Card

Network: RJ-45

Connectivity: Wired

Remote management: Yes

Cloud capabilities: Cloud Managed

Mount type: Ceiling Mount

Ingress protection rating: IP67

Durability: Dust Resistant

Input voltage: 12V DC

Operating temperature: -22°F to 131°F

Operating humidity: 95%

Weight: 11.20oz

NDAA compliant: Yes

Country of origin: CN

Installation notes

Choose a mounting spot that gives the fixed 2.8mm lens the coverage you need, and aim the camera away from reflective surfaces that can bounce the IR light back into the image. Run the network cable to the RJ-45 port, confirm the camera has a 12V DC supply, and check the picture and night view before closing up the install.
