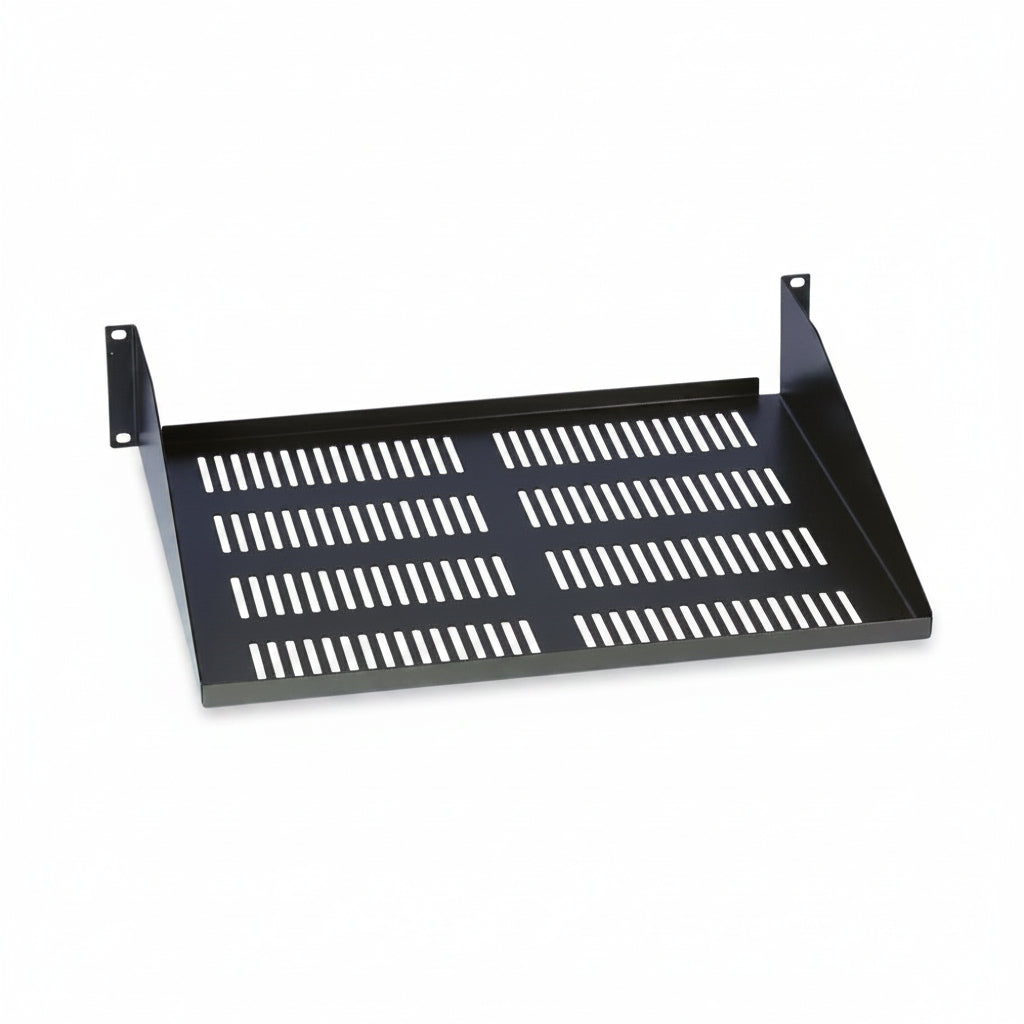

Tripp Lite SRSHELF2P SmartRack 2U Cantilever Fixed Shelf

The Tripp Lite SRSHELF2P is a 2U cantilever fixed shelf from the SmartRack line, made to hold monitors and other equipment in a rack. It suits installers and IT staff who need a simple, sturdy shelf for a 2 or 4 post rack cabinet. It carries a rated load of up to 60 lb (27.2 kg) and ships with the mounting hardware it needs.

Key features

• Uses a 2U cantilever mount for a fixed shelf position.
• Supports up to 60 lb (27.2 kg).
• Fits both 2 post and 4 post rack cabinets.
• Has an 18″ depth, which can be expanded by using 2 shelves.
• Includes the mounting hardware required for installation.

Specifications

Brand: Tripp Lite

Model: SRSHELF2P

Product Line: SmartRack

Product Type: Rack Shelf

Application/Usage: Monitor

Color: Black

Material: CRS

Width: 19.00″

Depth: 18.00″

Height: 3.50″

Weight: 5.00 lb

Maximum Weight Capacity: 59.97 lb

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Package Contents: Shelf and mounting hardware

Installation notes

Mount the shelf at a height that is comfortable to reach, and keep heavier equipment low in the rack so it stays stable. Make sure the load stays within the rated capacity and that cables are routed so they do not strain or block the equipment on the shelf.
