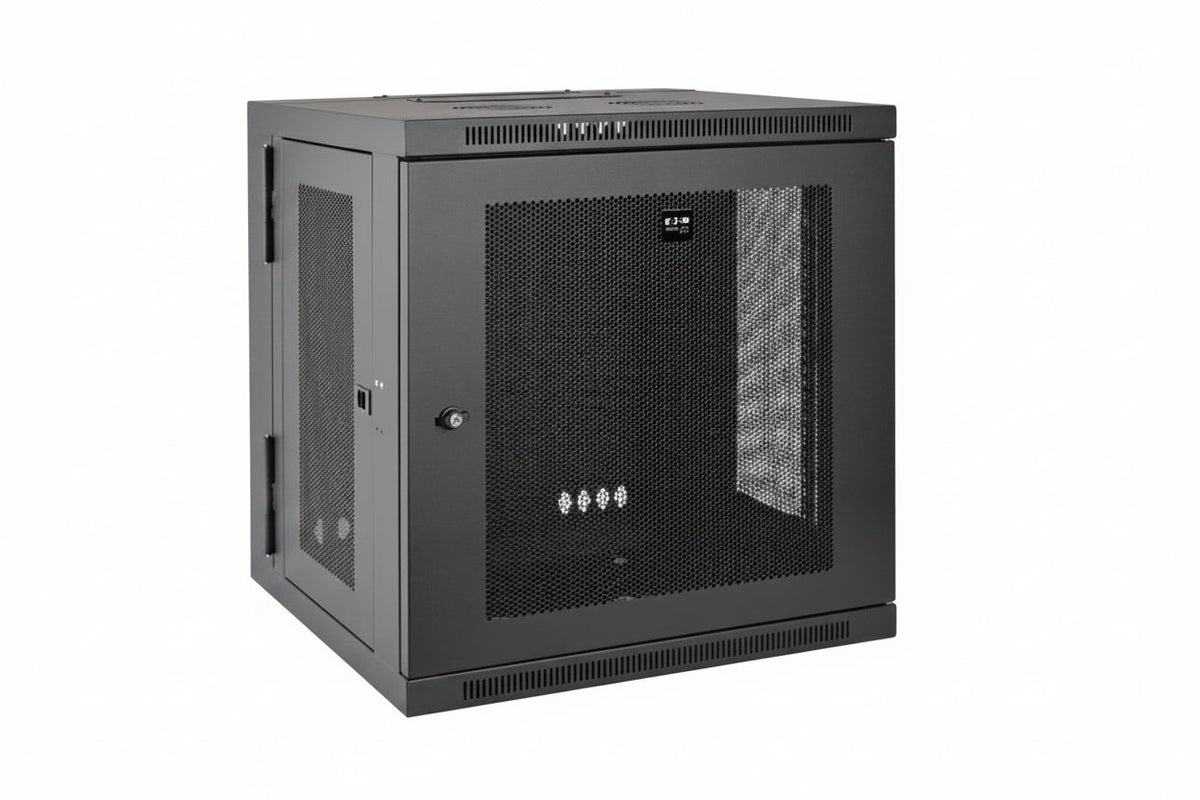

Eaton Tripp Lite SRW12US Smart Rack 12U Small Cabinet Low Profile Wall Mount Switch Depth and Hinged Back

The Eaton Tripp Lite SRW12US is a 12U wall-mount rack cabinet from the SmartRack line, built to hold EIA-standard 19 in. equipment such as a LAN switch. A hinged back lets you reach the equipment from the wall side, and lockable doors and side panels help keep the gear secure. It suits network closets, back offices and other small spaces that need a compact, fully assembled enclosure.

Key features

• Provides 12U of rack space for 19 in. EIA-standard equipment.
• The hinged back makes it easier to get at the equipment.
• Supports loads up to 200 pounds (90.7 kg).
• Lockable doors and side panels add security, and the cabinet complies with PCI DSS for secure installations.
• Vented panels promote airflow and cooling.
• Ships fully assembled, and mounts on the wall or on an optional caster kit.

Specifications

Model: SRW12US

Brand: Eaton

Product line: SmartRack

Product type: Rack Cabinet

Application: LAN Switch

Mount type: Wall Mount

Rack width: 19.0″

Rack space: 12U

Adjustable rail depth: up to 20.5 in. equipment depth

Width: 23.50″

Height: 24.60″

Depth: 21.60″

Weight: 60.00 lb

Maximum weight capacity: 200.00 lb

Color: Black

Features: Lockable

Environmental certification: RoHS

Country of origin: CN

Package contents: SRW12US wall mount rack enclosure server cabinet, 20 x M6 screws, 20 x M6 cage nuts, 20 x M6 washers, 20 x 12-24 screws, 2 x keys, owner's manual

Installation notes

Because the cabinet ships fully assembled and loaded equipment adds substantial weight, secure it to a wall structure suited to the combined load, and have a second person help lift it into place. Leave clearance behind the cabinet for the hinged back to swing open, and keep the vented panels unobstructed for airflow.
