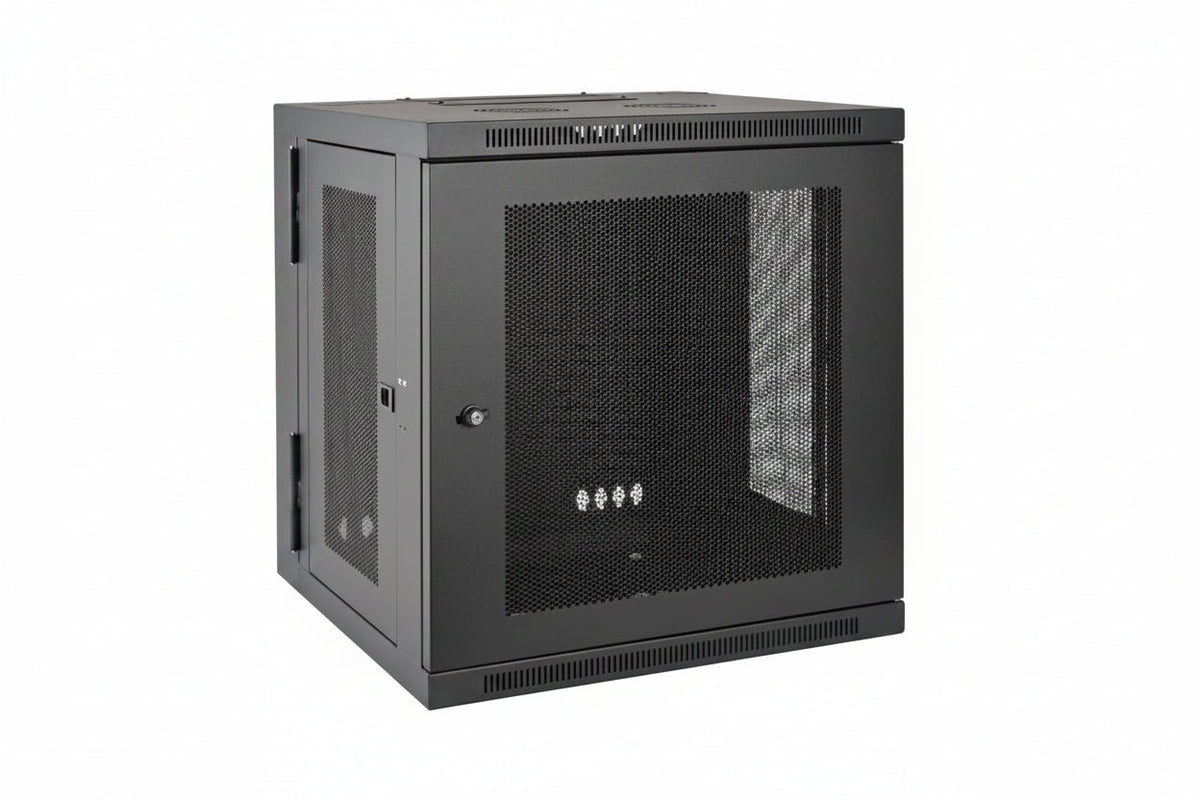

Eaton Tripp Lite SRW12USDP SmartRack UPS-Depth Wall Mount Small Rack Enclosure with Hinged Back, 24.5" (62cm), 200lb (90.7kg), 12U

The Eaton Tripp Lite SRW12USDP is a SmartRack 12U wall-mount rack enclosure with a hinged back, built to house EIA-standard 19-inch equipment where floor space is limited. It suits network wiring closets, retail locations, classrooms and back offices, and its UPS-depth cabinet is made to hold a UPS along with other gear. It ships fully assembled and has lockable side panels and doors.

Key features

• Provides 12U of rack space for EIA-standard 19-inch equipment.
• Hinged back makes access and maintenance easier.
• Supports a load of up to 200 lb (90.7 kg).
• Lockable side panels and doors help keep equipment secure.
• Vented panels allow airflow for cooling.
• Adjustable rails accommodate equipment up to 24.5 in. deep.

Specifications

Model: SRW12USDP

Brand: Eaton

Product line: SmartRack

Product type: Rack cabinet

Application: UPS

Form factor / mount type: Wall mount

Rack space: 12U

Rack width: 19.0″

Rack depth: 24.5″

Width: 23.60″

Height: 25.10″

Depth: 25.50″

Maximum weight capacity: 200.00 lb

Color: Black

Assembly required: No

Environmental certification: RoHS

Country of origin: CN

Package contents: SRW12USDP enclosure, (20) M6 screws, (20) M6 cage nuts, (20) M6 washers, (20) 12-24 screws, (2) keys, owner’s manual

Installation notes

Mount the enclosure to a wall structure rated for the full equipment load, and keep the vented panels clear so air can move through the cabinet. Plan cable routing and leave room for the hinged back to swing open before you fix the final position.
