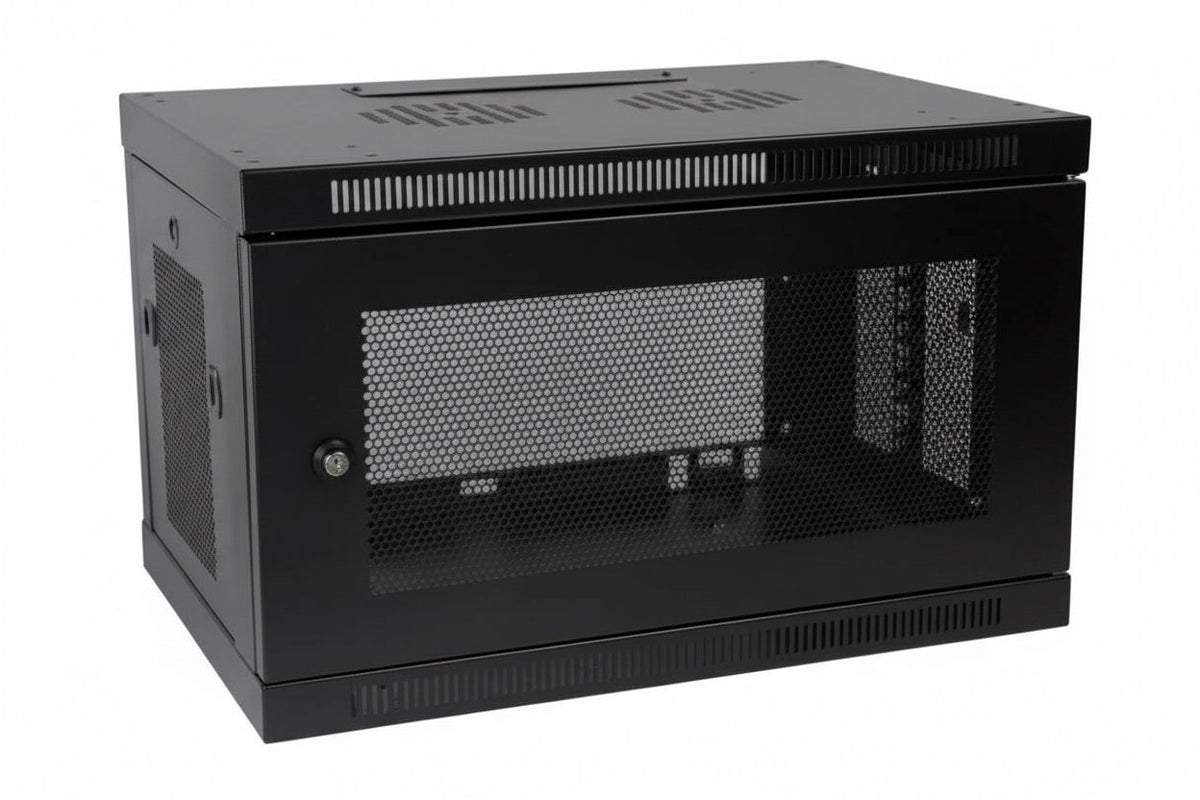

Eaton Tripp Lite SRW6U SmartRack 6U Wall Mount Mini Rack Enclosure, Low-Profile, Switch-Depth

The Eaton Tripp Lite SRW6U SmartRack is a 6U wall mount rack enclosure that holds 19-inch rack equipment in a locking steel cabinet. It suits network wiring closets, retail locations, classrooms and back offices where space is limited. The low-profile, switch-depth design and vented panels on every side keep it compact while letting air flow through.

Key features

• Holds up to 200 lbs of equipment.
• The steel cabinet locks and is vented at the sides, front, top and bottom.
• Flow-through ventilation helps keep equipment cool.
• Secures 6U of 19″ rack equipment up to 16.5″ deep.
• Mounts on a wall, or rolls on the floor with the optional SRCASTER.

Specifications

Brand: Eaton

Model: SRW6U

Product Line: SmartRack

Product Type: Rack Cabinet

Form Factor: Wall Mount

Mount Type: Wall Mount

Rack Width: 19.0″

Height: 14.50″

Width: 23.50″

Depth: 17.50″

Material: Steel

Color: Black

Weight: 29.00 lb

Maximum Weight Capacity: 140.00 lb

Environmental Certification: RoHS

Environmentally Friendly: Yes

Features: UL 60950-1

Country of Origin: CN

Package Contents: SRW6U 6U Server Rack, (12) M6 screws, (12) M6 cage nuts, (12) M6 cup washers, mounting hardware, (2) keys, owner's manual

Installation notes

Mount the enclosure to a solid wall surface and use appropriate anchors for the load it will carry. Leave clearance around the vented panels so air can move through the cabinet, and plan cable routing before loading the equipment.
