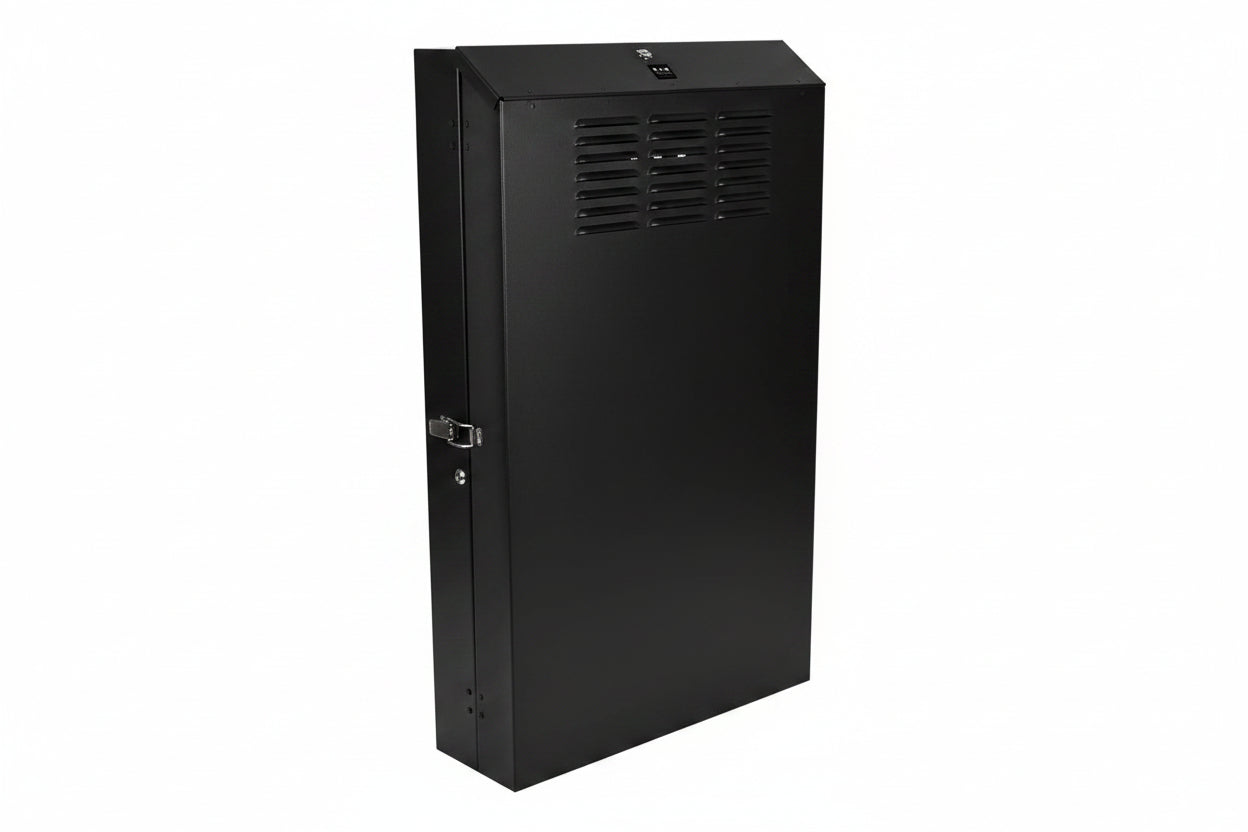

Eaton Tripp Lite SRWF6U36 SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall Mount Rack Enclosure Cabinet

The Eaton Tripp Lite SRWF6U36 SmartRack is a 6U vertical-mount wall-mount rack enclosure that holds EIA-standard 19 in. equipment and takes equipment up to 36 in. deep. It suits network closets and other tight spaces where floor room is limited, including retail locations, classrooms and back offices. It ships fully assembled, and a lockable top panel and front door help keep the gear secure.

Key features

• The 6U vertical-mount design saves workspace in network closets and small floor areas.
• It accepts EIA-standard 19 in. rack equipment up to 36 in. deep.
• A slide-out 2U bracket is built in for patch panels.
• The top panel and front door lock, and the design complies with PCI DSS security standards.
• A vented design helps keep equipment cool.
• It arrives fully assembled, so it is ready to mount.

Specifications

Brand: Eaton

Model: SRWF6U36

Product Line: SmartRack

Product Type: Rack Cabinet

Mount Type: Wall Mount

Material: Steel

Color: Black

Height: 43.00″

Width: 25.60″

Depth: 11.50″

Rack Depth: 36.0″

Maximum Weight Capacity: 149.91 lb

Assembly Required: No

Environmental Certification: RoHS

Country of Origin: CN

Package Contents: SRWF6U36 enclosure, (12) M6 screws, (12) M6 cup washers, (12) 12-24 screws, (2) keys, owner's manual

Installation notes

Mount the enclosure to a wall structure that can support the cabinet plus its full equipment load, and keep the vented areas clear so air can move around the gear. Plan cable routing and the patch panel position before loading heavy equipment, and keep the keys somewhere secure.
