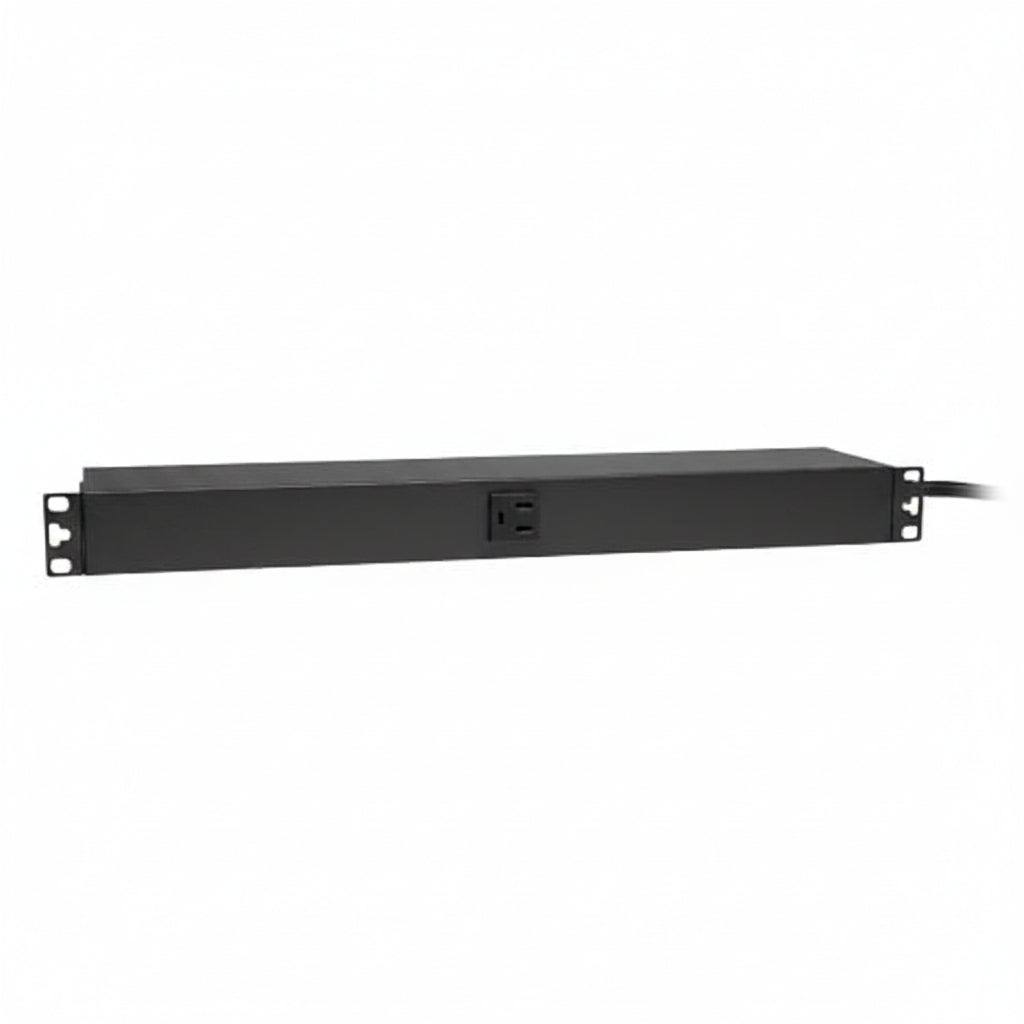

Eaton Tripp Lite PDU1215 1.8kW 120V Single Phase Basic PDU, 13 NEMA 5-15R Outlets, NEMA 5-15P Inlet, 15' Cord, 1U Rack Mount

The Eaton Tripp Lite PDU1215 is a basic 1U rack mount power distribution unit that feeds 13 NEMA 5-15R outlets from a single 120V, 15A input. It suits installers and businesses powering networking, telecom, audio/video or PC equipment from one cord. The switchless design helps prevent accidental shutdowns, and the reversible all-metal housing supports several mounting options.

Key features

• Provides 1.8kW of single-phase power across 13 NEMA 5-15R outlets.
• A 15A circuit breaker protects against overload.
• The switchless design prevents accidental shutdowns.
• The 1U rack-mount design is ready for toolless 0U vertical installation.
• The reversible all-metal housing allows versatile installation.

Specifications

Brand: Eaton

Model: PDU1215

Product type: Basic PDU

Phase: Single phase

Power rating: 1.8kW

Input voltage: 120V AC

Input current: 15A

Input plug: NEMA 5-15P

Output voltage: 120V AC

Receptacles: 13 x NEMA 5-15R

Cord length: 15'

Mount type: Rack mount

Mounting orientation: Horizontal

Height: 2.00″

Width: 20.00″

Depth: 4.50″

Network (RJ-45): Yes

Environmental certification: RoHS

Standards and approvals: RETIE (Colombia); CAN/CSA-22.2 No. 308-14 (Canada); NOM (Mexico); UL 1363

Country of origin: CN

Installation notes

Confirm the rack position and the reach of the 15' cord to the wall receptacle before mounting. Plug the PDU into a dedicated 15A, 120V circuit and keep the total connected load within its rating.
