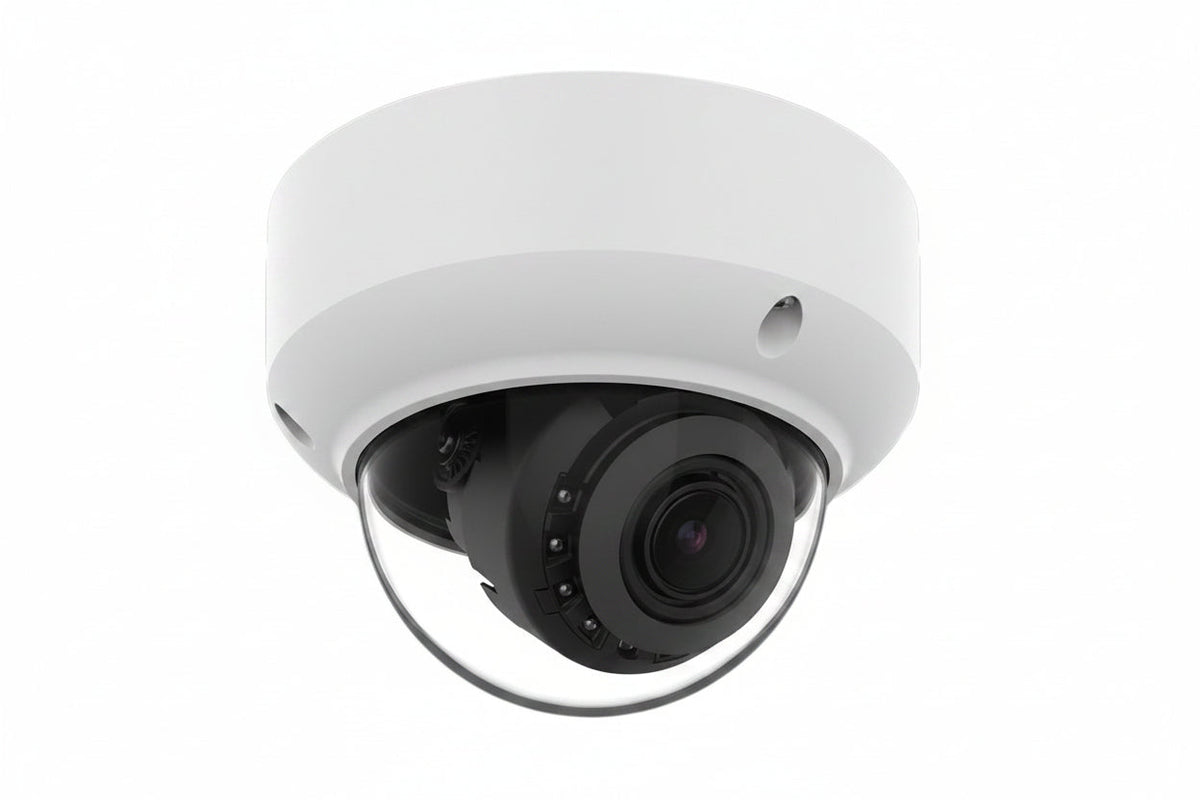

Illustra IFS08-D13-OIB4 Flex Gen4 8mp Outdoor Mini Dome Camera, 3.6-11mm Varifocal Lens, IP66, IK10, White

The Illustra IFS08-D13-OIB4 is an 8MP outdoor mini dome IP camera from the Flex Gen4 line, built for installers and businesses that need dependable video outdoors. It pairs a 3.6-11mm varifocal lens with smart IR reaching 50m (164') and an IK10 impact rating. Flex AI Suite arrives enabled and calibrated, and the camera supports Onvif Profiles S, G, T and M.

Key features

• Flex AI Suite is enabled and calibrated out of the box.
• The housing is certified IP66, IP67, NEMA 4x and IK10 for outdoor use.
• Smart, adaptive IR covers distances up to 50m (164').
• A gyro sensor provides high-end image stabilization.
• Power failover support and corridor and dual HD streaming modes are included.
• It conforms to JCI cyber norms and is Onvif Profile S, G, T and M conformant.

Specifications

Model: IFS08-D13-OIB4

Product Line: Flex Gen4

Product Type: Dome Camera

Effective Camera Resolution: 8MP

Maximum Video Resolution: 3840 x 2160

Maximum Frame Rate: 15fps

Minimum Illumination: 0.1000lux

Lens Included: Yes

Indoor/Outdoor: Outdoor

Impact Protection Rating: IK10

Durability: Impact Resistant

Color: White

Installation notes

Aim the camera and set the varifocal lens at the mounting location so the field of view matches the scene before you close it up. If you use the power failover feature, confirm that both power sources are connected and working during commissioning.
