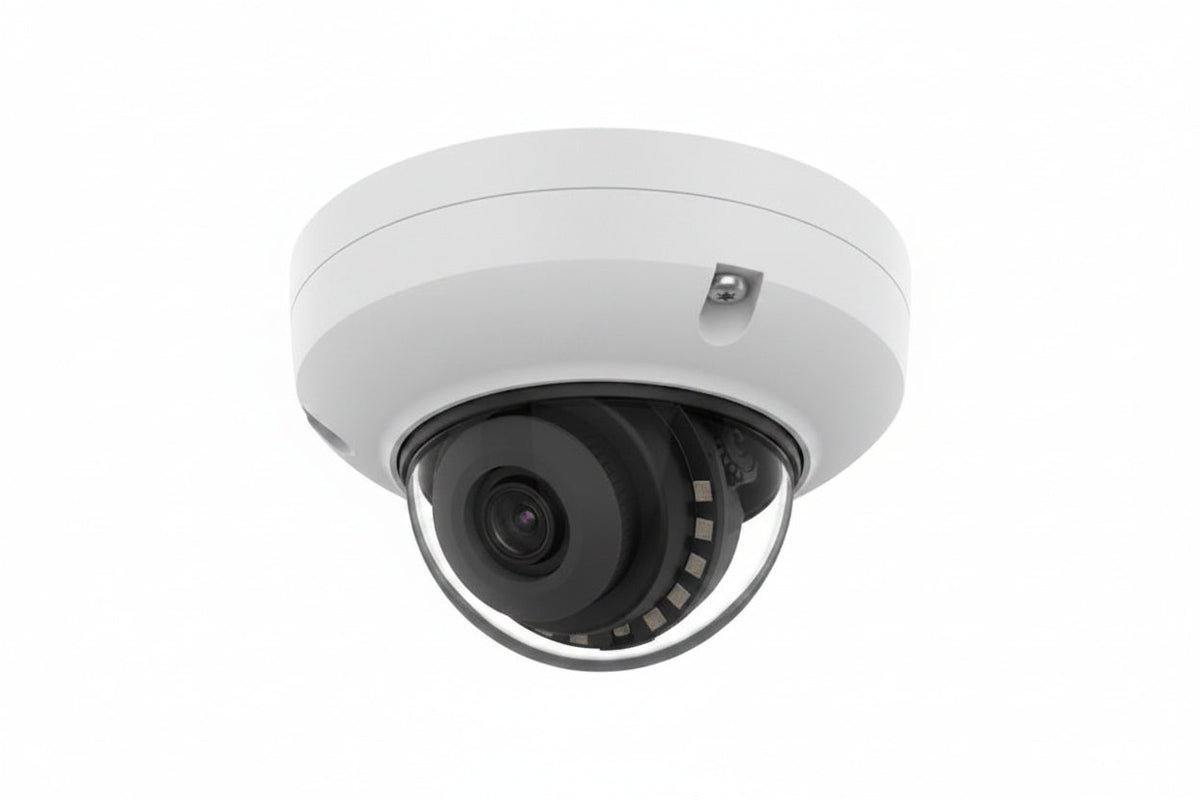

Illustra IFS05-C10-OIB4 Flex4 5MP Outdoor Compact Dome

The Illustra IFS05-C10-OIB4 Flex4 is a 5MP outdoor compact dome camera for ceiling-mount installations. It suits installers and businesses that need dependable day and night coverage, with a fixed 2.8mm lens, Adaptive IR, wide dynamic range and the Flex AI suite calibrated out of the box. Weather ratings of IP66, IP67, NEMA 4x and IK10 make it a fit for exposed locations.

Key features

• Flex AI suite arrives enabled and calibrated, so analytics are ready from the start.
• Low-light imaging holds up in difficult lighting, day or night.
• Adaptive IR reaches up to 20m (65.6') for visibility in complete darkness.
• Corridor and dual HD streaming modes let you tailor the view to the space.
• IP66, IP67, NEMA 4x and IK10 certification covers a range of outdoor conditions.
• ONVIF Profile S, G, T and M conformity helps it work with existing security systems.

Specifications

Model: IFS05-C10-OIB4

Brand: Illustra

Color: White

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Lens Type: Fixed

Focal Length: 2.8mm

Mount Type: Ceiling Mount

Effective Camera Resolution: 5MP

Wide Dynamic Range: Yes

TAA Compliant: Yes

Durability: Waterproof

Country of Origin: VN

Installation notes

Choose a mounting spot that gives the fixed lens a clear view of the area you want covered, and keep the dome away from surfaces that could reflect IR light back into the image. Seal cable entries properly and confirm the view and settings at commissioning, since the lens cannot be adjusted for zoom.
