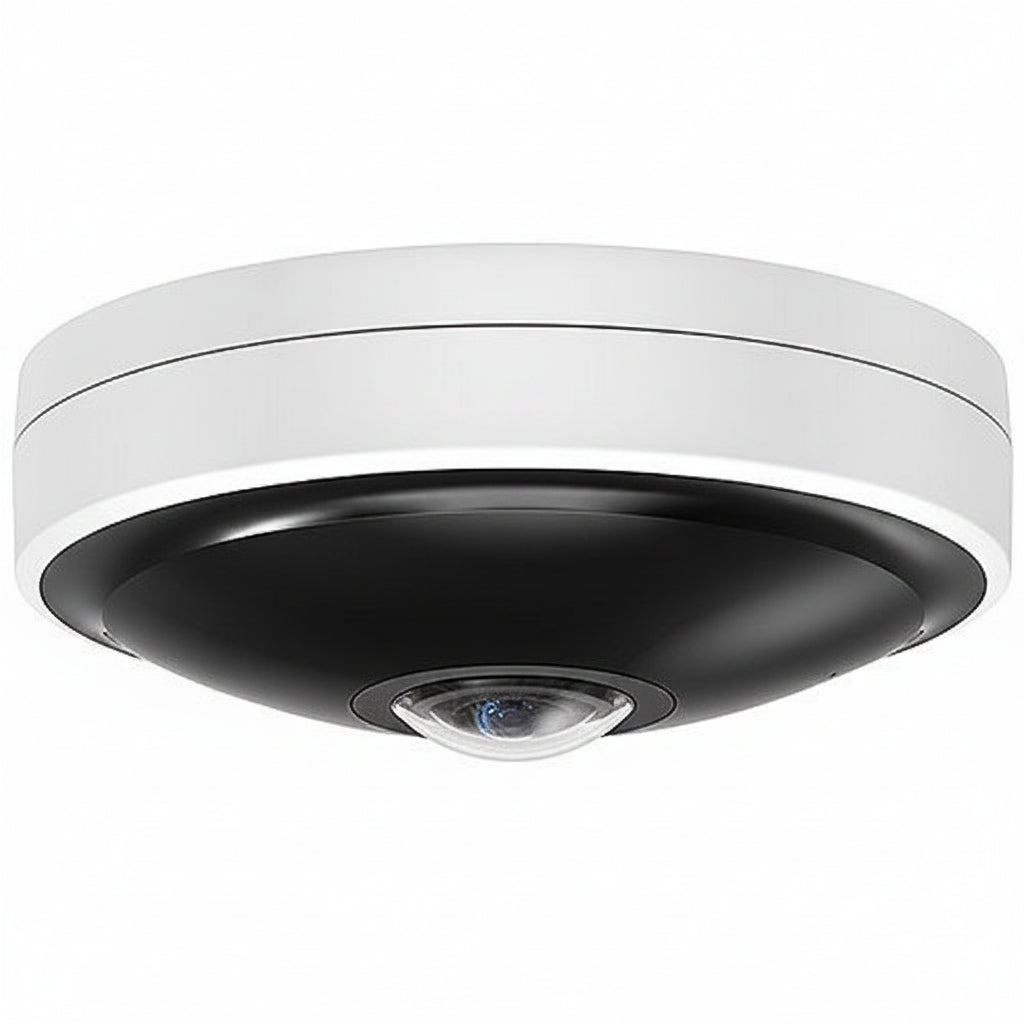

Illustra IPS12-F27-OIA4 12MP Pro Gen4 IR Fisheye Camera, 1.37mm Lens, White

The Illustra IPS12-F27-OIA4 is a 12MP Pro Gen4 fisheye network camera for indoor video surveillance, supplied in white with a fixed 1.60mm lens. It captures up to 2688 x 1512 and adds infrared night vision, so it suits installers and businesses that need wide coverage of a room from a single ceiling position. IK10 impact resistance, a built-in microphone and NDAA and TAA compliance make it a practical choice for commercial spaces.

Key features

• Records video at up to 2688 x 1512 from a 12MP CMOS sensor.
• Infrared night vision reaches up to 49.21 ft, using little electrical power.
• The fixed 1.60mm lens with an f/2.0 aperture suits indoor spaces where light levels stay constant.
• A built-in microphone lets you capture audio along with video.
• The camera is powered from 24V AC and connects to the network over RJ-45.

Specifications

Model: IPS12-F27-OIA4

Brand: Illustra

Product Line: PRO

Product Series: Gen4

Product Type: Network Camera

Form Factor: FishEye

Effective Camera Resolution: 12MP

Maximum Video Resolution: 2688 x 1512

Maximum Resolution: 1280 x 720

Image Sensor Type: CMOS

Video Formats: MJPEG

Lens Included: Yes

Lens Type: Fixed

Minimum Focal Length: 1.60mm

Maximum Focal Length: 1.60mm

Maximum Aperture: f/2

Field of View: Diagonal

Night Vision: Yes

Night Vision Type: Infrared (IR)

Night Vision Distance: 49.21'

Built-in Feature: Built-in Microphone

Storage Type: SD Card

Remote Management: Yes

Connectivity Technology: Wired

Network (RJ-45): Yes

Input Voltage: 24V AC

Mount Type: Gooseneck Mount

Indoor/Outdoor: Indoor

Durability: Impact Resistant

Impact Protection Rating: IK10

Ingress Protection Rating: IP66

Operating Humidity: 95%

Minimum Operating Temperature: -40°F

Maximum Operating Temperature: 122°F

Height: 2.20″

Diameter: 5.90″

Color: White

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: TW

Installation notes

Mount the camera at a central ceiling position with a clear view of the whole room, and confirm the mounting surface can carry the camera before fixing it. Plan a 24V AC supply and a network cable run to the camera location, and check the image and night vision coverage after commissioning.
