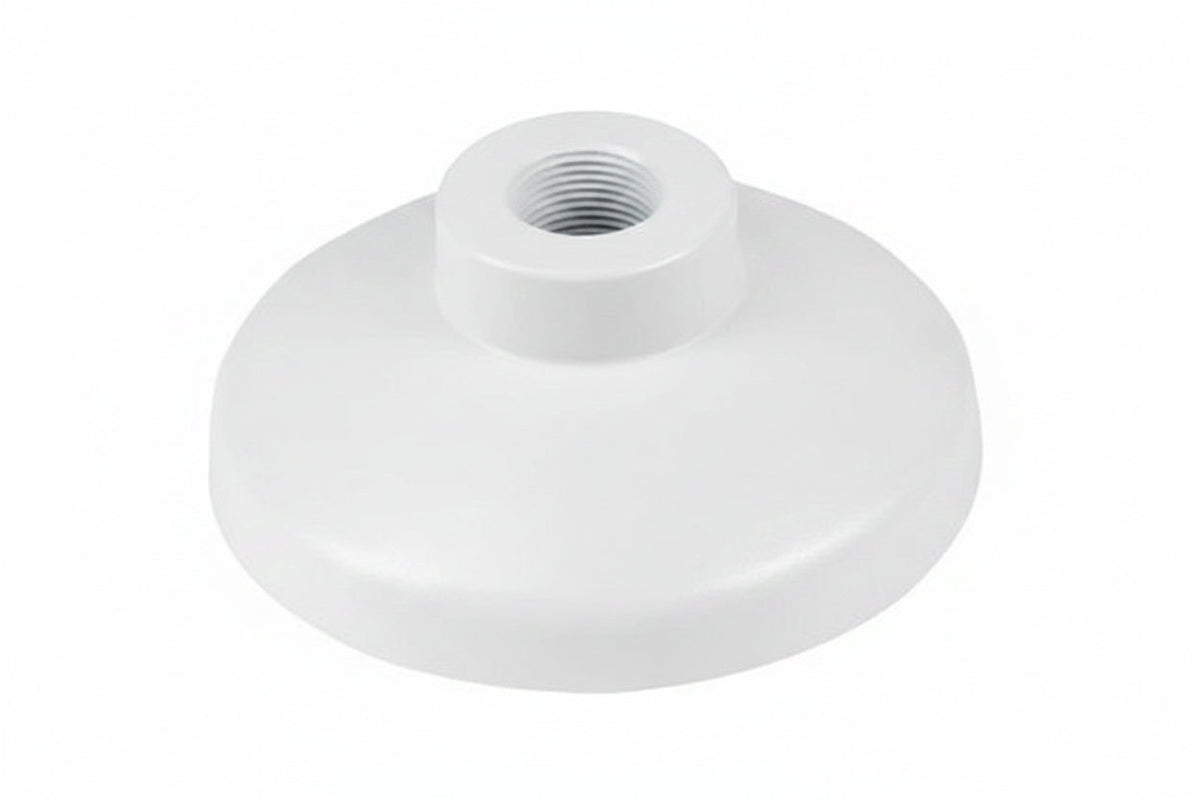

Illustra ADCI6DPCAPIW Indoor Pendant Cap, White

The Illustra ADCI6DPCAPIW is a white indoor pendant cap for hanging a mini-dome camera from the ceiling. It mounts directly on threaded pipe or pairs with a gooseneck mounting arm. It suits installers fitting compatible Illustra and American Dynamics mini-domes in indoor spaces, and it is NDAA compliant.

Key features

• Works as an indoor pendant cap in white for ceiling applications.
• Mounts directly onto threaded pipe.
• Can also be used together with a gooseneck mounting arm.
• Pro Gen3 mini-domes need screw stand-offs when used with this cap.
• Measures Ø5.8 x 2.2 x 5.8 in (Ø148 x 55 x 147.4 mm).

Specifications

Brand: Illustra

Model: ADCI6DPCAPIW

Product type: Ceiling Mount

Application/usage: Ceiling

Indoor/outdoor: Indoor

Color: White

Device supported: Mounting Arm

Compatibility: American Dynamics 600/610 Illustra Pro Gen2, Pro Gen5 and Flex Gen3 series mini-dome cameras

Diameter: 5.80″

Dimensions: Ø5.8 x 2.2 x 5.8 in (Ø148 x 55 x 147.4 mm)

Maximum load capacity: 25.00 lb

NDAA compliant: Yes

Country of origin: TW

Installation notes

Confirm the threaded pipe or gooseneck arm is secured to a structure that can carry the camera, and keep the total load within the 25.00 lb rating. If you are pairing the cap with a Pro Gen3 mini-dome, have the screw stand-offs on hand before you start.
