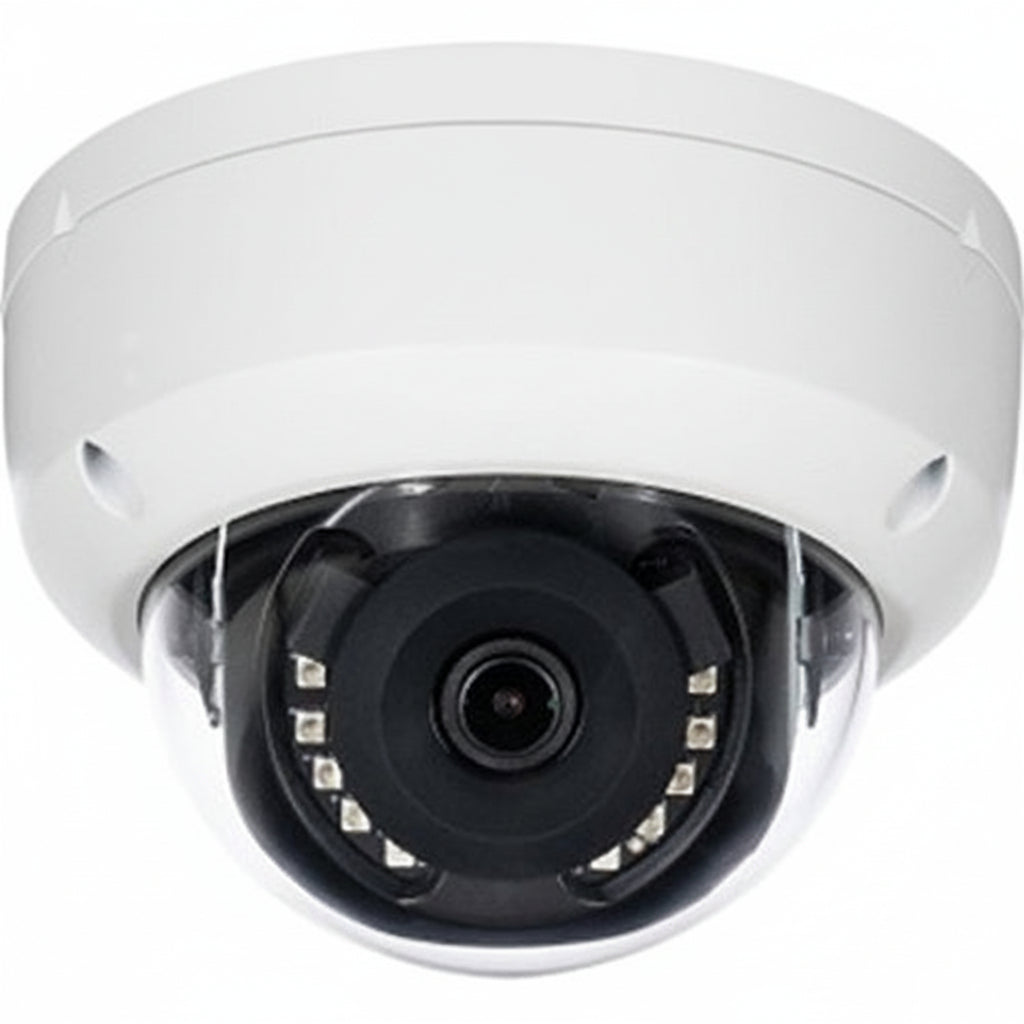

Illustra IES02-D10-OI04 Essentials 2MP Outdoor IP IR Mini-Dome Camera, 2.8mm Lens, White

The Illustra IES02-D10-OI04 is a 2MP outdoor IP mini-dome camera from the Essentials Gen4 line, built for installers and businesses that need dependable 1080p coverage of exterior areas day and night. It pairs a fixed 2.8mm lens with built-in IR illumination, and carries IP67 and IK10 ratings for weather and impact resistance. This white pendant-mount model is also NDAA compliant.

Key features

• Records 2MP (1080p) video at up to 30 images per second for clear, detailed HD images.
• H.264 and H.265 dual-stream encoding helps you manage bandwidth.
• Built-in IR illuminators and True Day/Night operation keep video usable in dark scenes and low light.
• Wide Dynamic Range lets you view high-contrast areas at the same time.
• IP67 protection against dust and water, plus IK10 vandal resistance, suits exposed outdoor locations.
• The lens is factory focused, so setup is quick.

Specifications

Model: IES02-D10-OI04

Brand: Illustra

Product Line: Essentials Gen4

Product Type: Network Camera

Form Factor: Mini Dome

Mount Type: Pendant Mount

Color: White

Indoor/Outdoor: Outdoor

Effective Camera Resolution: 2MP

Maximum Video Resolution: 1920 x 1080

Maximum Frame Rate: 30fps

Aspect Ratio: 16:9

Image Sensor Type: CMOS

Lens Type: Fixed

Focal Length: 2.8mm

Maximum Aperture: f/1.8

Wide Dynamic Range: Yes

Night Vision Distance: 82.02'

Video Formats: H.264

Video Signal Format: NTSC

Ingress Protection Rating: IP67

Impact Protection Rating: IK10

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

NDAA Compliant: Yes

Minimum Operating Temperature: -22°F

Maximum Operating Temperature: 140°F

Height: 3.20″

Diameter: 4.30″

Weight: 1.17lb

Country of Origin: TW

Installation notes

Choose a mounting surface that suits the camera's weight, and aim it so the IR illuminators are not pointed at nearby walls or glass that could bounce light back into the image. Because the lens is fixed and factory focused, confirm the view on a live feed before closing up the housing, and seal the cable entry to maintain the outdoor rating.
