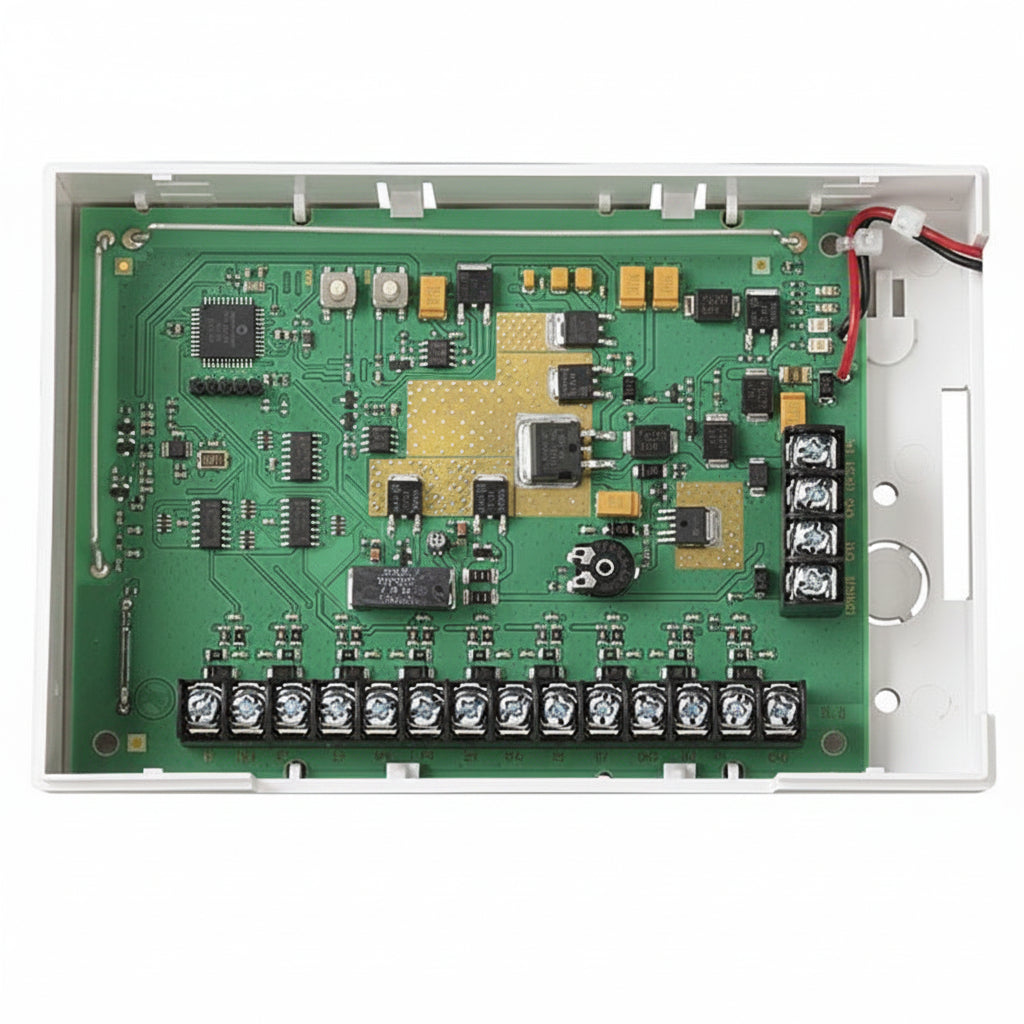

Honeywell Home 5800C2W Hardwired to 5800 Wireless Converter, Supports Wireless Zones

The Honeywell Home 5800C2W is a hardwired-to-wireless converter that lets existing wired zones report to a control panel as 5800 Series wireless devices. It suits installers retrofitting 12-volt security systems, or setting up new installs, who want to keep wired sensors while moving to 5800 wireless technology. Each module handles up to 9 hardwired zones, and its zones enroll like any other 5800 Series device.

Key features

• Each 5800C2W module can handle up to 9 hardwired zones.
• Wireless zones enroll in the control panel the same way as any other 5800 Series device.
• Serial numbers in the 5800 Series are assigned automatically to activated zones.
• Converts wired sensors in existing 12-volt security systems to 5800 Series wireless technology.
• Works with 5800 Series wireless technology.

Specifications

Brand: Honeywell Home

Model: 5800C2W

Product Series: 5800

Product Type: Hardwire to Wireless Translator

Application/Usage: Security System

Connectivity Technology: Wired

Compatibility: 5800 Series wireless technology

Operating Frequency: 345MHz

Input Voltage: 12V DC

Mount Type: Wall Mount

Length: 7.00″

Width: 4.50″

Depth: 1.50″

Certifications & Standards: ETL Listed to UL 1023

Environmental Certification: RoHS

Country of Origin: MX

Installation notes

Mount the module on a wall with enough room for the wiring from each hardwired zone, and confirm the 12V DC supply before connecting. Once the zones are activated, enroll them at the control panel as you would any 5800 Series device and test each zone.
