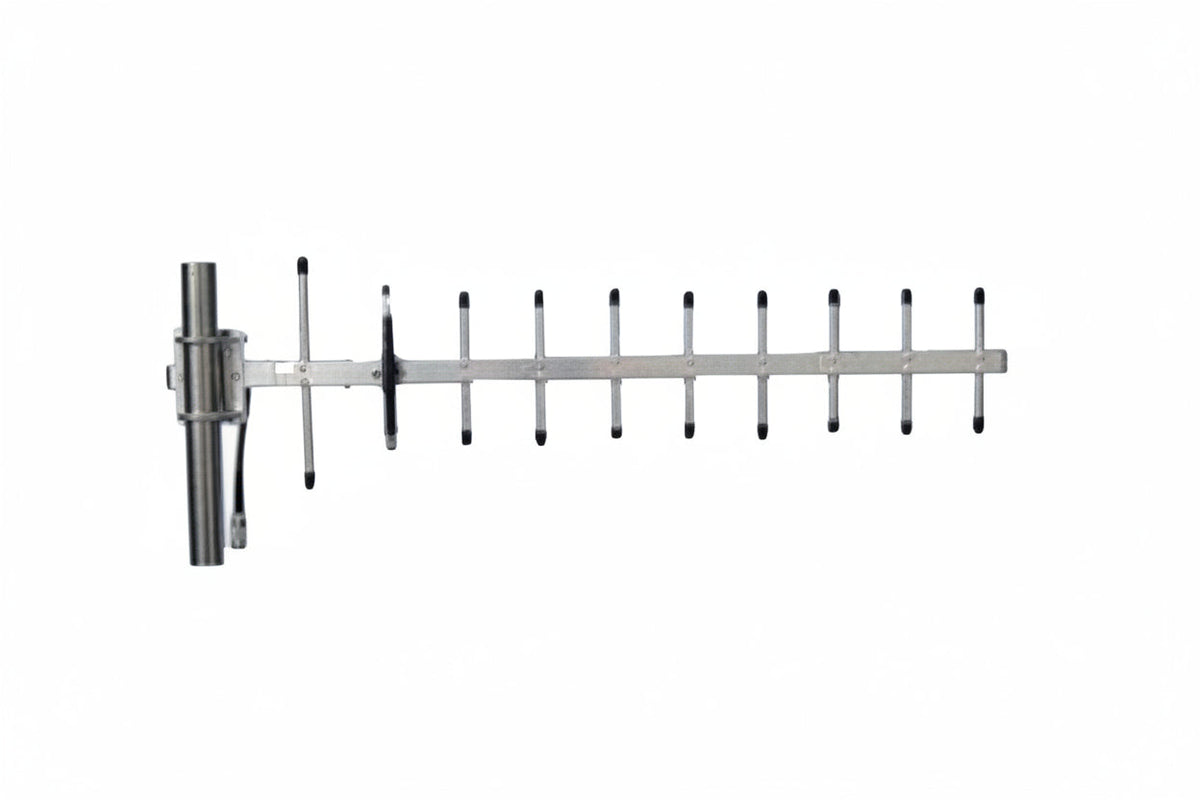

Honeywell BDA BDA-YDA763869-14-1 Yagi Directional Full Band Outdoor Antenna, 763-869MHz, 100W

Price: $220.33Model: BDA-YDA763869-14-1
In stock — ready to ship Free US shipping on orders $500+ · $279.67 to go
Need a project quote?
HoneywellShop all Honeywell →
Honeywell BDA BDA-YDA763869-14-1 Yagi Directional Full Band Outdoor Antenna, 763-869MHz, 100W
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy

About the BDA-YDA763869-14-1

The Honeywell BDA-YDA763869-14-1 is an outdoor Yagi directional antenna that covers the full 698-869 MHz band for PS700 and PS800 use. It suits installers who need a high-directivity pole-mount antenna for a Honeywell High Capacity Digital Signal Booster, such as the PS700 or PS800. It handles up to 100W and connects through an N-Type connector.

Key features

  • Covers the full PS700 and PS800 band.
  • Operates across 698-869 MHz.
  • Offers high directivity for pointing at a specific signal source.
  • Handles a maximum power of 100W.
  • Uses a directional Yagi design built for outdoor use.

Specifications

Brand: Honeywell

Model: BDA-YDA763869-14-1

Product Type: Antenna

Application/Usage: Outdoor

Directivity: Directional

Operating Frequency Range: 698-869MHz

Max Power: 100W

Connector Type: N-Type

Form Factor: Pole

Compatibility: Honeywell High Capacity Digital Signal Boosters: PS700, PS800

Height: 1.77″

Depth: 9.06″

Width: 43.31″

Weight: 1.98lb

Country of Origin: CN

Installation notes

Mount the antenna on a pole with a clear line of sight toward the signal source, and aim it before you tighten the clamps. Weatherproof the N-Type connection and check signal levels at the booster after final alignment.

Specifications

BrandHoneywell
ModelBDA-YDA763869-14-1
Product typeOutdoor Directional Antenna

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
