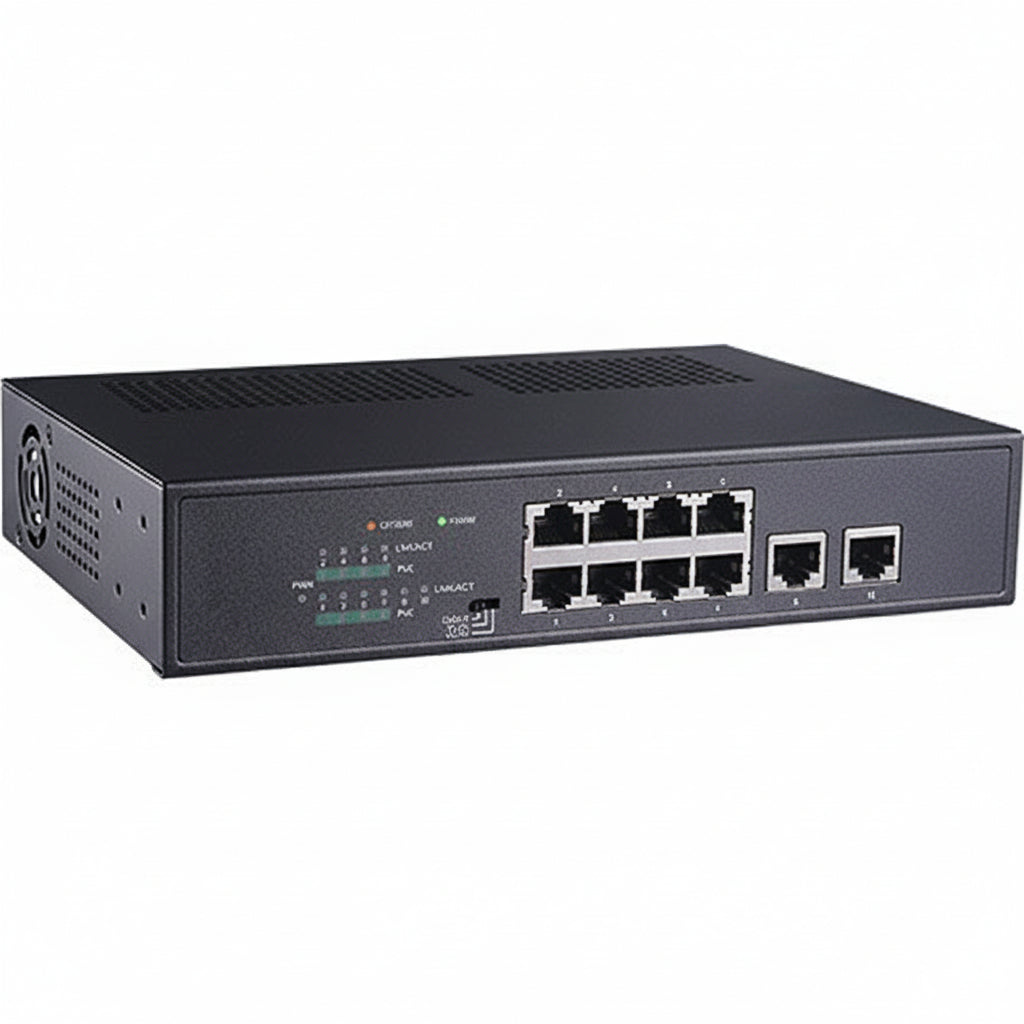

GeoVision GV-APOE0810 10-Port 10/100/1000M Unmanaged PoE Switch with 8-Port PoE

The GeoVision GV-APOE0810 (model 140-APOE81W-V2) is a 10-port unmanaged Gigabit PoE switch that powers and connects network devices over a single cable. It suits installers and businesses running GeoVision IP devices, with 8 PoE ports, a 120W PoE budget and a plug-and-play unmanaged design. A metal case, a rack mount kit in the box and NDAA compliance round out the package.

Key features

• Offers 10 ports of 10/100/1000BaseT(X), with 8 of them supplying Power over Ethernet.
• Complies with IEEE 802.3at, delivering full 15.4W on all 8 PoE ports or full 30W on 4 ports.
• Carries PoE over network cable runs up to 250m (820') at a 10Mbps transfer rate.
• Works as an unmanaged switch, so there is no management interface to configure.
• Includes an uplink port for connecting to the rest of the network.

Specifications

Model: 140-APOE81W-V2

Product Model: GV-APOE0810

Brand: GeoVision

Product Type: PoE Switch

Network Switch Type: Unmanaged

Manageable: No

Layer Supported: 2

Total Number of Network Ports: 10

Network Technology: 10/100/1000Base-TX

Networking Standards: IEEE 802.3ab

Ethernet Technology: 1 Gbps (Gigabit Ethernet)

Media Type Supported: Twisted Pair

Uplink Port: Yes

PoE Budget: 120W

Power Source: AC Power

Input Voltage: 120V AC

Frequency: 60Hz

Power Consumption: 125.0000W

Mount Type: Desktop Mount

Compatible Rack Unit: 1U

Material: Metal

Width: 8.70″

Height: 1.70″

Depth: 5.90″

Environmental Certification: RoHS

NDAA Compliant: Yes

TAA Compliant: No

Country of Origin: CN

Package Contents: 10-Port 10/100/1000M Unmanaged PoE Switch with 8-Port PoE, AC Power Cord, 4 x Rubber Feet, Rack Mount Kit, 8 x Screws

Installation notes

Place the switch on a flat surface using the rubber feet, or fit the supplied rack mount kit for rack installation, and leave room around it for airflow. Plan PoE cable runs and the total load of connected devices against the switch's power budget before deployment, and connect the uplink port to the main network.
