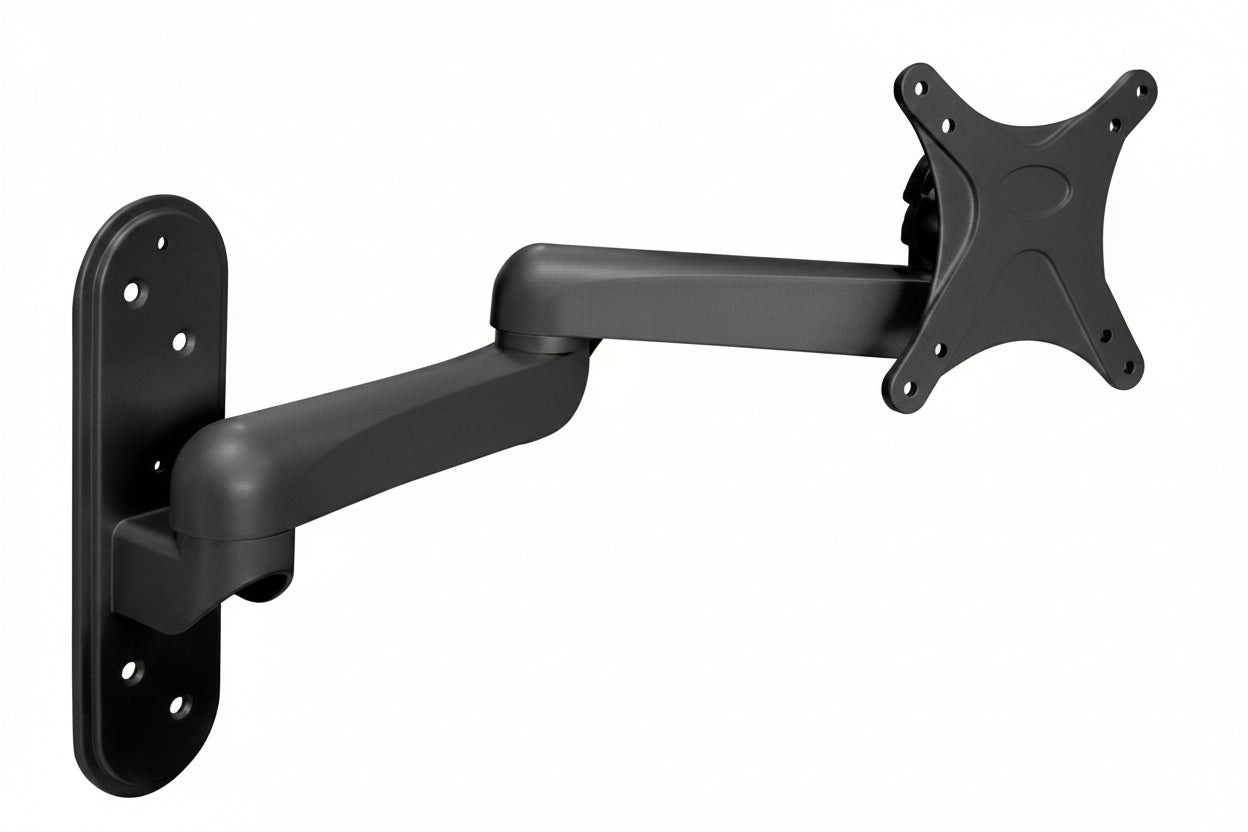

Eaton Tripp Lite DWM1327SE Swivel, Tilt Wall Mount for 13" to 27" TVs and Monitors

The Eaton Tripp Lite DWM1327SE is a full-motion wall mount for a single 13″ to 27″ flat-screen TV or monitor. Its swivel arm lets you reposition the display after it is on the wall, which suits homes, offices, hotels, bars and restaurants. It arrives fully assembled and is VESA compliant, with a 100 x 100 pattern listed.

Key features

• Fits TVs and monitors from 13″ to 27″.
• The arm swivels 180° and tilts from -15° to +15° to adjust the viewing angle.
• Supports displays up to 33 lb (14.9 kg).
• The scratch-resistant powder-coated finish is black.
• It comes fully assembled, with mounting hardware included.
• VESA compliance covers multiple hole patterns.

Specifications

Brand: Eaton

Model: DWM1327SE

Product type: Swivel Tilt TV Wall Mount

Application: Wall

Device supported: Flat Panel Display

Number of displays supported: 1

Minimum screen size: 13″

Maximum screen size: 27″

Maximum load capacity: 33 lb

VESA mount standard: 100 x 100

Swivel: 180°

Tilt: -15° to +15°

Material: Metal

Finish: Powder coated

Color: Black

Width: 15.9″

Height: 8.3″

Depth: 4.6″

Weight: 2.66 lb

Environmental certification: RoHS

TAA compliant: No

Country of origin: CN

Packaged quantity: 1

Package contents: DWM1327SE wall mount, (4) M4 screws, (4) M5 screws, (4) anchor bolts, (4) concrete anchors, 4 mm hex key, 5 mm hex key, owner's manual

Installation notes

Locate wall studs or use anchors suited to the wall material, and confirm the display's weight is within the mount's rated capacity before hanging it. Leave enough room around the arm for its full swivel and tilt range, and route cables with some slack so they do not bind when the display moves.
