Eaton 9A-1004 Cable Tray and Tie Mount, Splice Kit

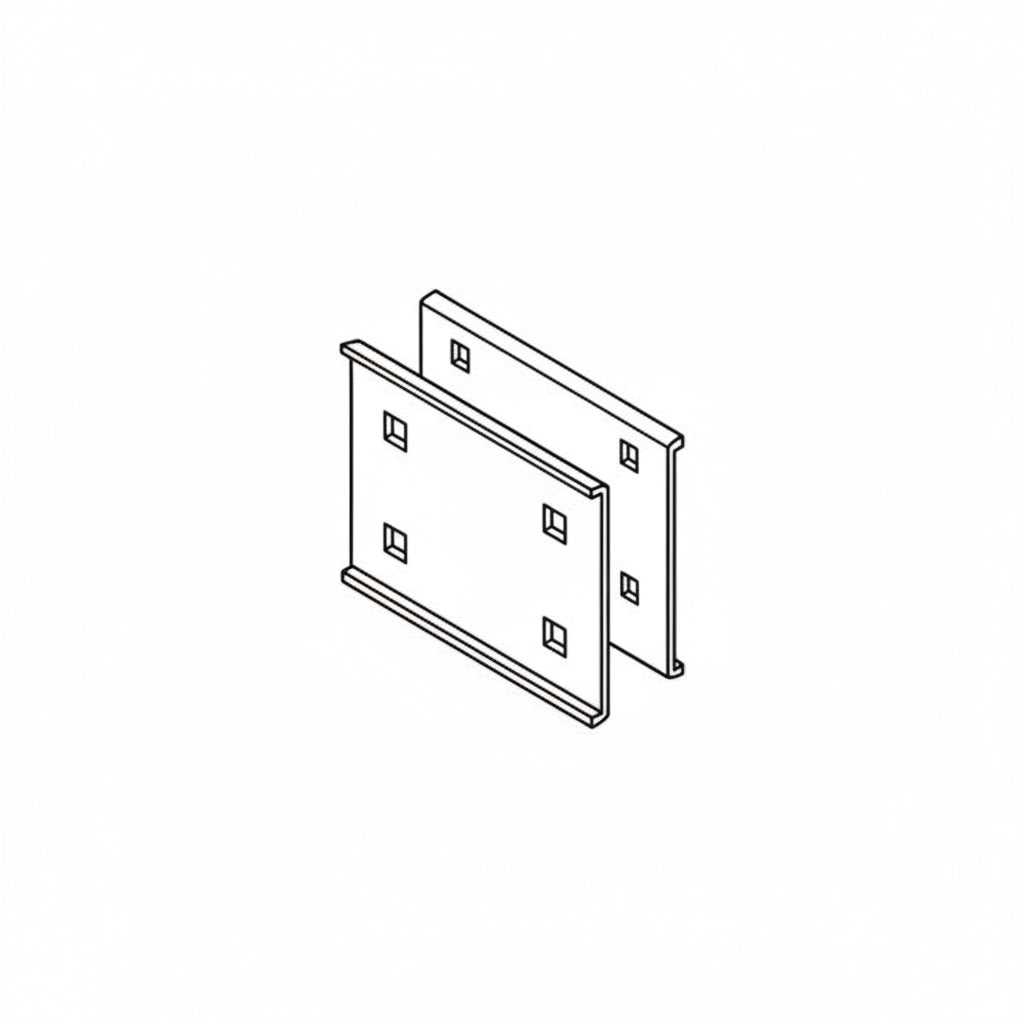

The Eaton 9A-1004 is a pair of Wedge Lock aluminum splice plates from the B-Line line, used to join cable tray sections end to end. It suits installers and contractors assembling or extending tray runs. The kit uses a standard 4-hole pattern and comes boxed in pairs with 3/8″ hardware, so the connection hardware is included.

Key features

• Supplied as a pair of splice plates with hardware.
• Includes 3/8″ hardware.
• Uses a standard 4-hole pattern.
• One pair with hardware ships with each tray section, with any expansion splice quantity subtracted.
• Boxed in pairs with hardware.
• For field installation, drill a 13/32″ hole.

Specifications

Model: 9A-1004

Brand: Eaton

Product Line: B-Line

Product Type: Splice Plates

Material: Aluminum

Height: 3.98″

Packaged Quantity: 1

Installation notes

Line up the tray sections so the splice plates sit flush against both sides of the joint before you tighten the hardware. If you need to add holes in the field, drill them at 13/32″ and deburr the edges so they don't damage cables.
