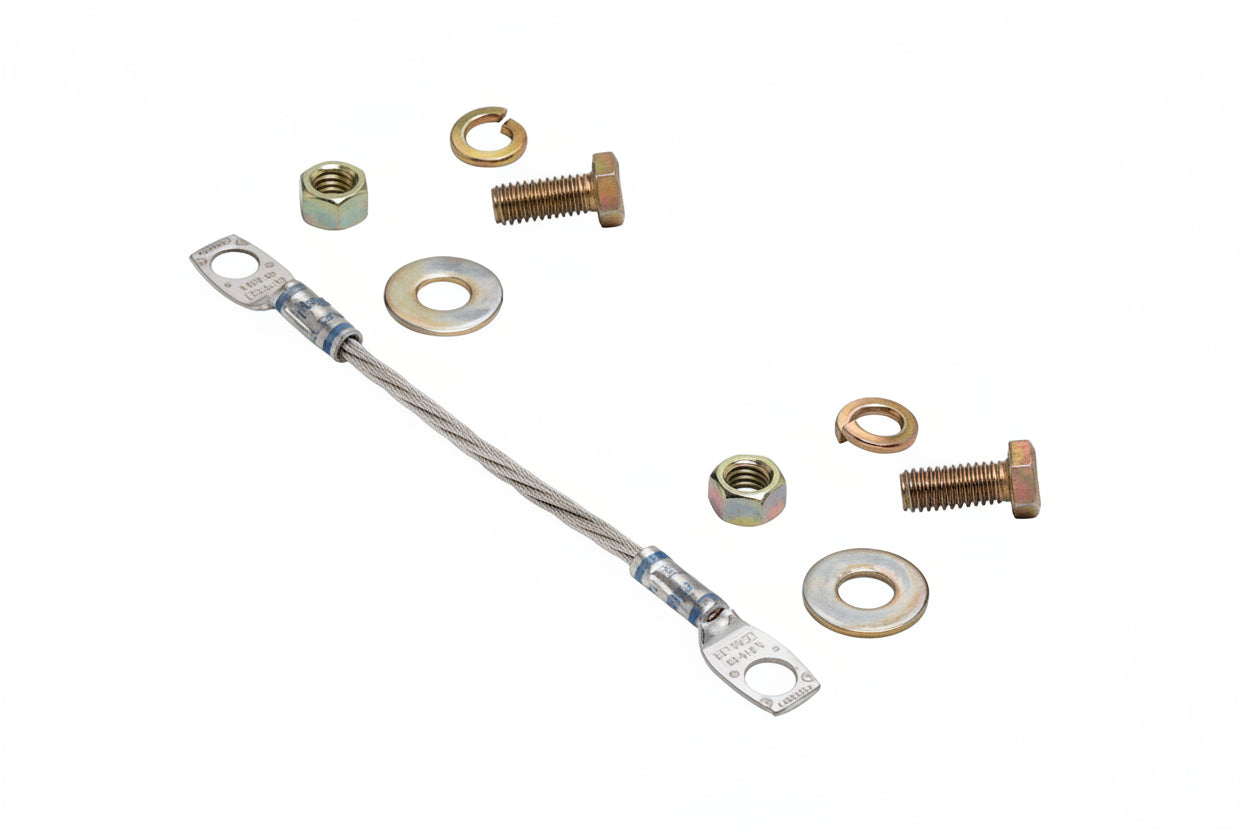

Eaton SB6693/4X101/2 Grounding Strap, 10-1/2", 3/4" Mounting Hole

The Eaton SB6693/4X101/2 (model SB669 3/4X10 1/2) is a B-Line series grounding strap that gives you a grounding path between equipment and its ground point. It suits installers and facility crews who need a ready-made bonding jumper. The #6 flexible tin plated copper wire is easy to route, and the cable comes with crimped lugs and 1/4″-20 hardware.

Key features

• Provides a grounding path between the points it connects.
• Made from #6 flexible copper wire, so it bends to fit tight runs.
• Tin plated copper construction.
• Crimped lugs come already attached to the cable.
• Includes one cable with 1/4″-20 hardware.
• Sized at 10-1/2″ with a 3/4″ mounting hole.

Specifications

Brand: Eaton

Model: SB669 3/4X10 1/2

Product Line: B-Line

Product Type: Grounding Strap

Length: 10-1/2″

Mounting Hole: 3/4″

Wire: #6 flexible tin plated copper

Installation notes

Clean both contact surfaces down to bare metal before fastening the lugs, and tighten the hardware so the connection is solid. Route the strap so it is not stretched or pinched, and check the connection at both ends after installation.
