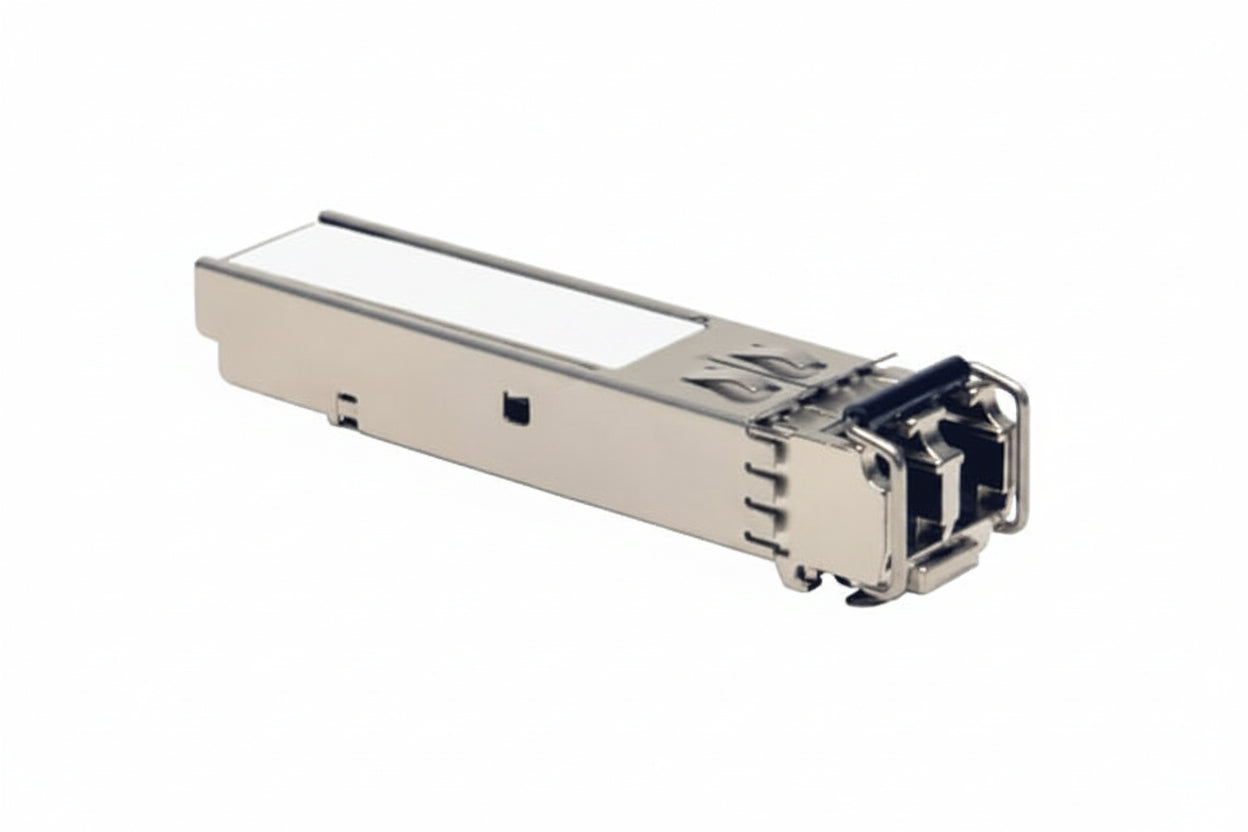

Eaton Tripp Lite N286-01GSX-MDLC Cisco-Compatible GLC-SX-MMD 1000Base-SX SFP Transceiver, DDM, Multimode LC, 850nm, 1804.46' (550 m)

The Eaton Tripp Lite N286-01GSX-MDLC is a Cisco-compatible 1000Base-SX SFP transceiver that links a switch to multimode fiber over a duplex LC connection. It suits installers and network admins who need a 1 Gbps fiber uplink or inter-switch link on Cisco gear. It stands out for its Digital Diagnostic Monitoring support and its hot-pluggable design.

Key features

• Works with Cisco switches and follows SFP MSA standards.
• Carries 1.25Gbps data over an 850nm VCSEL laser.
• Reaches 300m on 62.5/125 multimode fiber and 500m on 50/125 multimode fiber.
• Connects through a duplex LC connector and uses the SFF-8431 electrical interface.
• Supports Digital Diagnostic Monitoring for checking the link.
• Can be plugged in and removed without a special procedure thanks to its hot-pluggable design.

Specifications

Model: N286-01GSX-MDLC

Brand: Eaton

Product Type: SFP (mini-GBIC)

Network Technology: 1000Base-SX

Ethernet Technology: 1 Gbps (Gigabit Ethernet)

Interfaces/Ports Details: 1 x LC Duplex 1000Base-SX Network

Number of Ports: 1

Connector Type: SFP

Media Type Supported: Optical Fiber

Fiber Optic Mode: Multimode

Fiber Optic Cable Standard: 50/125 µm, 62.5/125 µm

Form Factor: Hot-Pluggable

Application/Usage: Data Networking

Depth: 2.20″

Height: 0.30″

Width: 0.50″

Packaged Quantity: 1

TAA Compliant: Yes

Country of Origin: CN

Package Contents: N286-01GSX-MDLC Transceiver, Quick Start Guide

Installation notes

Match the fiber type at both ends of the link to the multimode cable you are using, and keep the run within the distance listed for that cable. Clean the LC connectors before plugging in, and check the DDM readings on the switch once the link is up.
