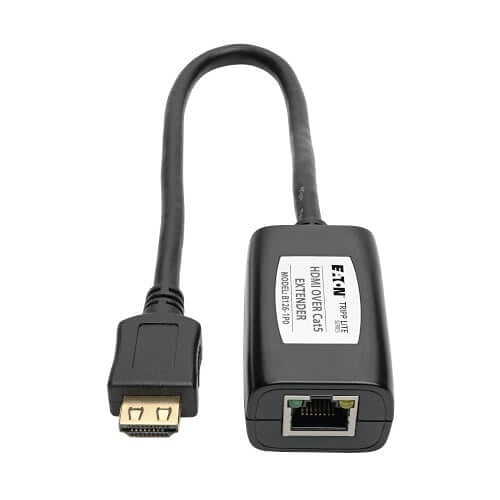

Eaton Tripp Lite B126-1P0 HDMI over CAT5, CAT6 Passive Extender, Box-Style Remote Receiver for Video/Audio, up to 100 (30 m), TAA

The Eaton Tripp Lite B126-1P0 is an HDMI over Cat5/Cat6 passive remote receiver that turns a twisted-pair run back into an HDMI signal at the display end. It suits installers and AV integrators feeding a monitor, projector or TV from a compatible transmitter, and it stands out for needing no external power or software. The receiver has a built-in HDMI cable with a latching connector, and it is TAA-compliant for GSA purchases.

Key features

• Extends an HDMI signal up to 100′ over twisted-pair cabling.
• Supports 1080p and 1080i video resolutions.
• Carries stereo and 7.1-channel audio.
• Works with all HDMI video sources.
• Plug-and-play operation, with no software and no external power required.
• The built-in HDMI cable has a latching connector.

Specifications

Model: B126-1P0

Brand: Eaton

Product type: Video Extender Receiver

Cable type: Category 6

Media type supported: Twisted pair

Maximum operating distance: 100′

Maximum video resolution: 1920 x 1080

Network (RJ-45) ports: 1

HDMI outputs: 1

Input devices supported: 1

Output devices supported: 1

Connectivity: Wired

Form factor / mount type: Desktop mount

Color: Black

TAA compliant: Yes

Environmentally friendly: Yes

Country of origin: TW

Package contents: B126-1P0 Video Console, Owner's Manual

Installation notes

Pair the receiver with a Tripp Lite B126-002 or B126-004 transmitter, and keep the twisted-pair run continuous and within the rated distance. Place the box close to the display so the built-in HDMI cable reaches without strain, and make sure the latching connector is fully seated.
