Eaton Tripp Lite B020-U08-19-K NetDirector 8-Port, 1U Rack-Mount Console, KVM Switch with 19" LCD and PS2/USB Combo Cables, (Replaces B020-008-17)

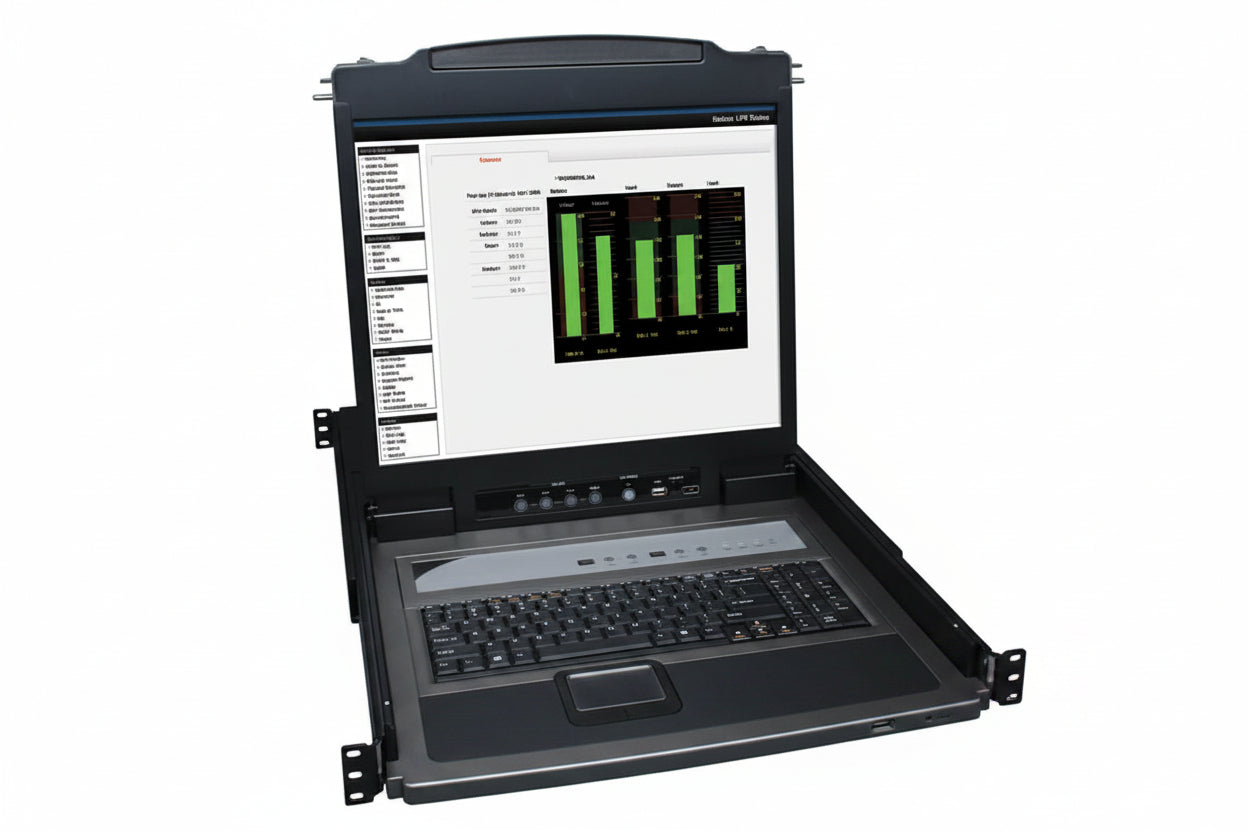

The Eaton Tripp Lite B020-U08-19-K NetDirector is an 8-port KVM console switch that puts a 19″ LCD, full keyboard and touchpad into a single 1U rack-mount unit. It lets one operator control up to 8 computers or servers from one spot, which suits server rooms and IT closets where rack space is tight. It supports both PS/2 and USB connections and replaces the B020-008-17.

Key features

• Combines an 8-port KVM switch, 19″ LCD and full keyboard in one 1U rack-mountable console.
• Switch between ports using front-panel buttons, the on-screen display or hot keys.
• Auto-scan mode lets you monitor connected computers without switching by hand.
• Multi-level password security covers up to 4 users.
• Daisy-chain up to 31 switches to reach as many as 256 computers.
• Heavy-duty steel housing is built for durability.

Specifications

Brand: Eaton

Model: B020-U08-19-K

Product line: NetDirector

Product type: LCD Rack Console

Number of computers supported: 8

Screen size: 19″

Display resolution: 1280 x 1024

Graphics mode: SXGA

Pointing device type: Touchpad

Number of USB ports: 2

Rack height: 1U

Height: 1.80″

Width: 17.00″

Depth: 27.00″

Color: Black

Environmental certification: RoHS

Environmentally friendly: Yes

TAA compliant: Yes

Country of origin: TW

Package contents: NetDirector Console RM LCD KVM Switch; 8 x P778-006 6 ft. USB/PS2 Combo KVM Cable Kits; RJ11 to DB9 Firmware Upgrade Cable; C13 to 5-15P Power Cord; CD with Owner's Manual

Installation notes

With a depth of 27.00″, confirm your rack has enough clearance front to rear and that the mounting rails can support the unit before you slide it in. Label each KVM cable at both ends as you connect the computers so the port numbers match what you see in the on-screen display.
