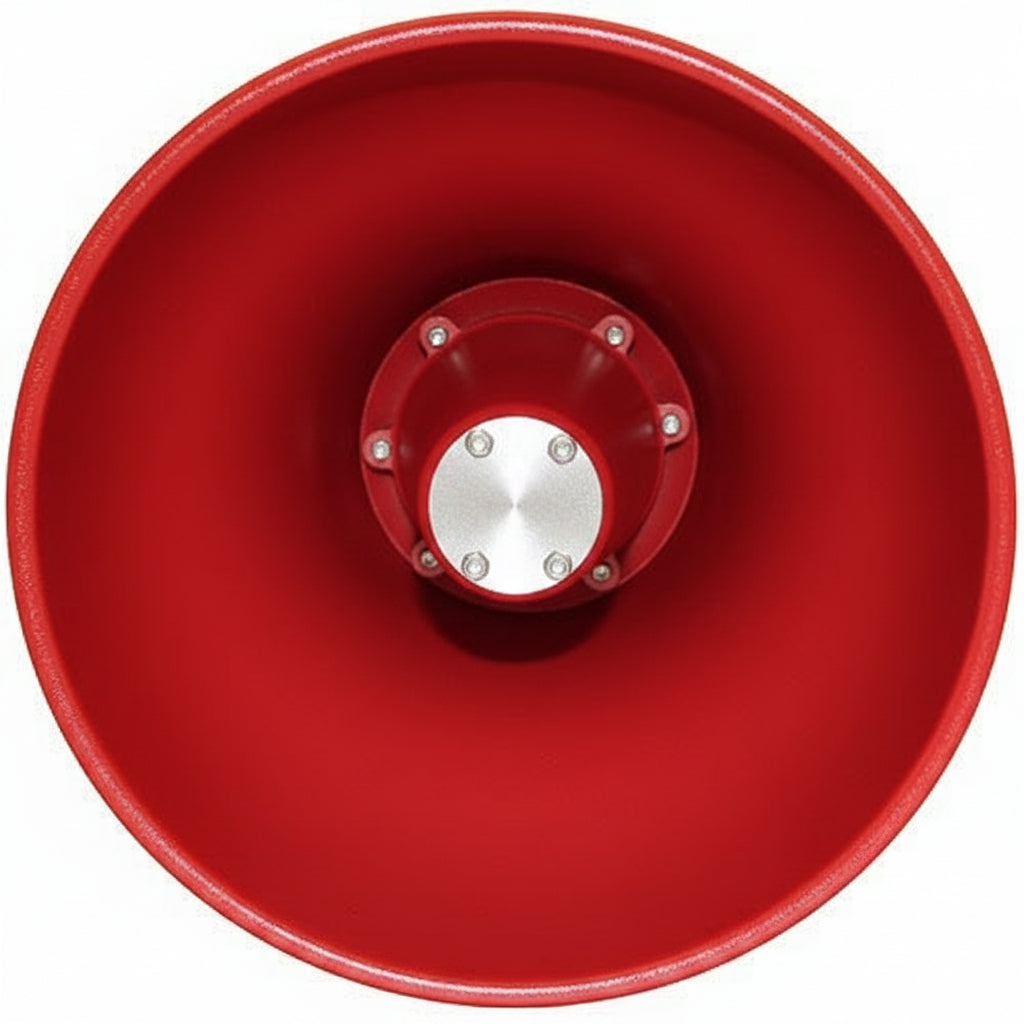

Eaton STH-15SR Supervised Horn Loudspeaker, Adjustable Mounting, 25/70V, 15W, Indoor or Outdoor, Red

The Eaton STH-15SR is a red, wall-mount supervised horn loudspeaker for 25/70V distributed sound systems. It is built for outdoor use, with a weather-resistant, vandal-resistant aluminum housing and a 15W compression driver. Installers will like the 7-position tap selector and the universal mounting bracket, which keep setup and adjustment simple.

Key features

• The 25/70V transformer has a screwdriver-adjustable, 7-position watt/impedance selector.
• A 15W high-efficiency compression driver produces the sound.
• The aluminum construction resists water, humidity and corrosion, and it is also vandal-resistant.
• Installation terminals and the power selector are recessed and protected by the metal interface adapter or a clear plastic shield.
• A simplified universal mounting bracket is included in the design.
• It is approved to ULC Standard CAN/ULCS541-2016 for speakers and has a red baked-epoxy finish.

Specifications

Brand: Eaton

Model: STH-15SR

Product line: STH

Product type: Loudspeaker

Color: Red

Form factor: Wall mount

Mount type: Wall mount

Indoor/Outdoor: Outdoor

Shape: Rectangular

Sound emission: 101dB

Input voltage: 25V AC

Height: 9.30″

Width: 8.70″

Depth: 9.40″

Weight: 4.50 lb

Packaged quantity: 1

Installation notes

Choose the watt/impedance tap with a screwdriver before closing up the terminal area, and check the total tapped load against your amplifier's output. Mount the speaker to a solid wall surface, and leave the protective shield or interface adapter in place to keep the recessed terminals covered.
