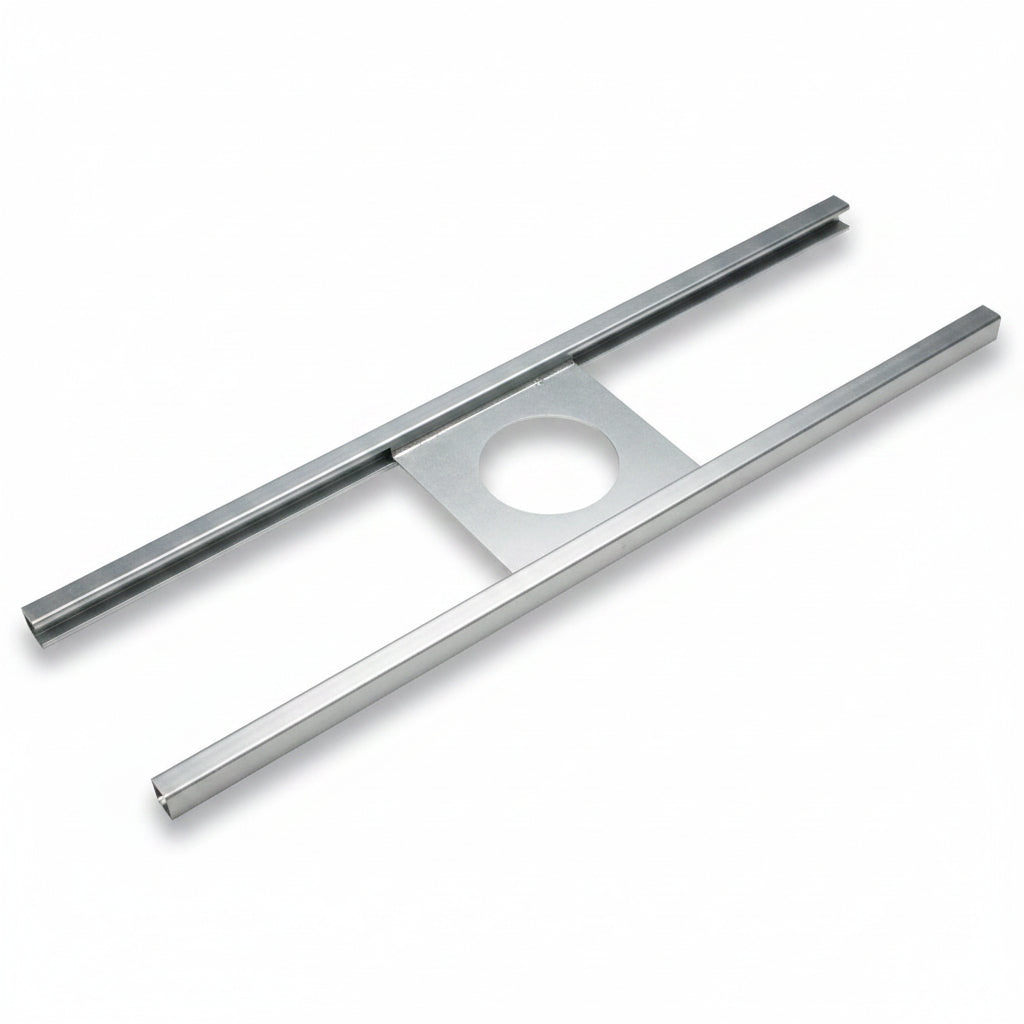

Eaton SSB-8 Tile Bridge, 8" Speaker Support

The Eaton SSB-8 Tile Bridge is a steel support that lets you mount 8″ speakers and speaker strobes in a tiled ceiling. It is a ceiling-mount accessory from the Eaton Wheelock line, suited to installers fitting compatible Wheelock speakers into tile. It is rated UL and supplied with four J-nuts.

Key features

• Supports 4″ and 8″ speakers and speaker strobes in tiled ceilings.
• Made for ceiling mounting.
• Includes four #8-32 J-nuts.
• Works with ST-C8, ST-C8V, ST-C8M, ST-C8VM, S8-70/25, S8-24MCC and S8-24MCCH speakers, plus Series E90 and Series ET90.
• The CBB-8 model, not the SSB-8, is required for the S8-70/25, S8-24MCC and S8-24MCCH.

Specifications

Model: SSB-8

Brand: Eaton

Product Line: Eaton Wheelock

Product Type: Accessory

Device Supported: Speaker

Mount Type: Ceiling Mount

Indoor/Outdoor: Indoor

Material: Steel

Color: Gray

Shape: Rectangular

Length: 8.00″

Width: 14.00″

Height: 23.50″

Depth: 0.50″

Weight: 0.97 lb

Certifications & Standards: UL

Packaged Quantity: 1

Installation notes

Confirm your speaker model against the compatibility list before ordering, since some models call for the CBB-8 instead. Make sure the bridge sits securely across the ceiling grid and that the speaker is fastened to it with the supplied J-nuts.
