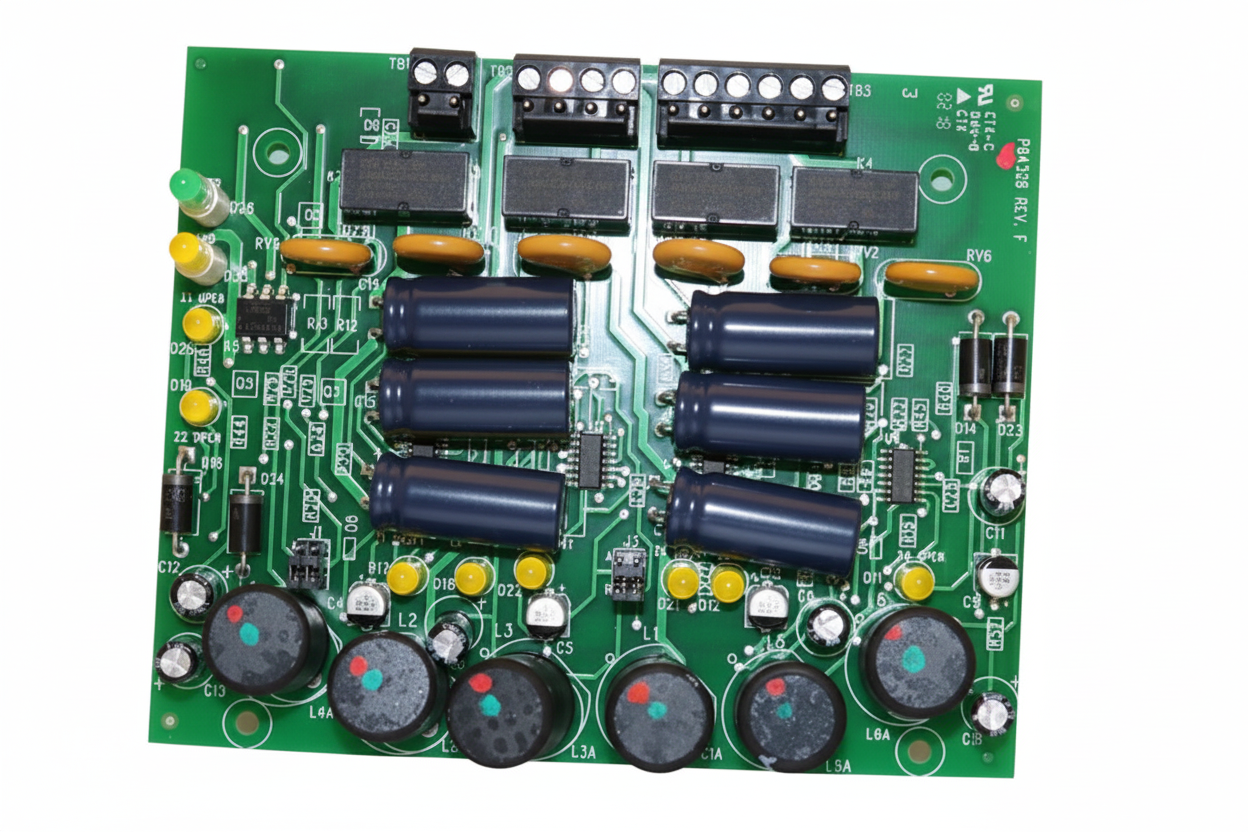

Eaton SP4Z-A/B SAFEPATH Accessory Supervised Speaker Audio Splitter for SP40S, Zone Class or Zone Class A, Green

The Eaton SP4Z-A/B is a SAFEPATH accessory that works as a supervised speaker audio splitter for fire alarm and mass notification systems. It expands one supervised speaker audio output into up to two Class A zones or up to four Class B zones, so a single zone can cover more speaker circuits. It suits installers extending an Eaton SAFEPATH Mass Notification System or an audio booster setup.

Key features

• Splits one zone into up to 2 zones of supervised speaker audio output in Class A.
• Splits one zone into up to 4 zones of supervised speaker audio output in Class B.
• Keeps the expanded speaker outputs supervised.
• Described by Eaton as a multi-function system, 2A fully supervised.
• Works with audio boosters and the SAFEPATH Mass Notification System.

Specifications

Brand: Eaton

Model: SP4Z-A/B

Product line: SAFEPATH

Product type: Accessory

Input voltage: 24V DC

Compatibility: Audio Boosters, SAFEPATH Mass Notification System

Color: Green

Height: 4.0″

Width: 5.5″

Depth: 1.2″

Weight: 0.56 lb

Packaged quantity: 1

Country of origin: US

Installation notes

Decide up front whether each speaker circuit will be wired Class A or Class B, since the number of zones the splitter provides depends on that choice. After wiring, test and confirm supervision on every expanded speaker circuit during commissioning.
