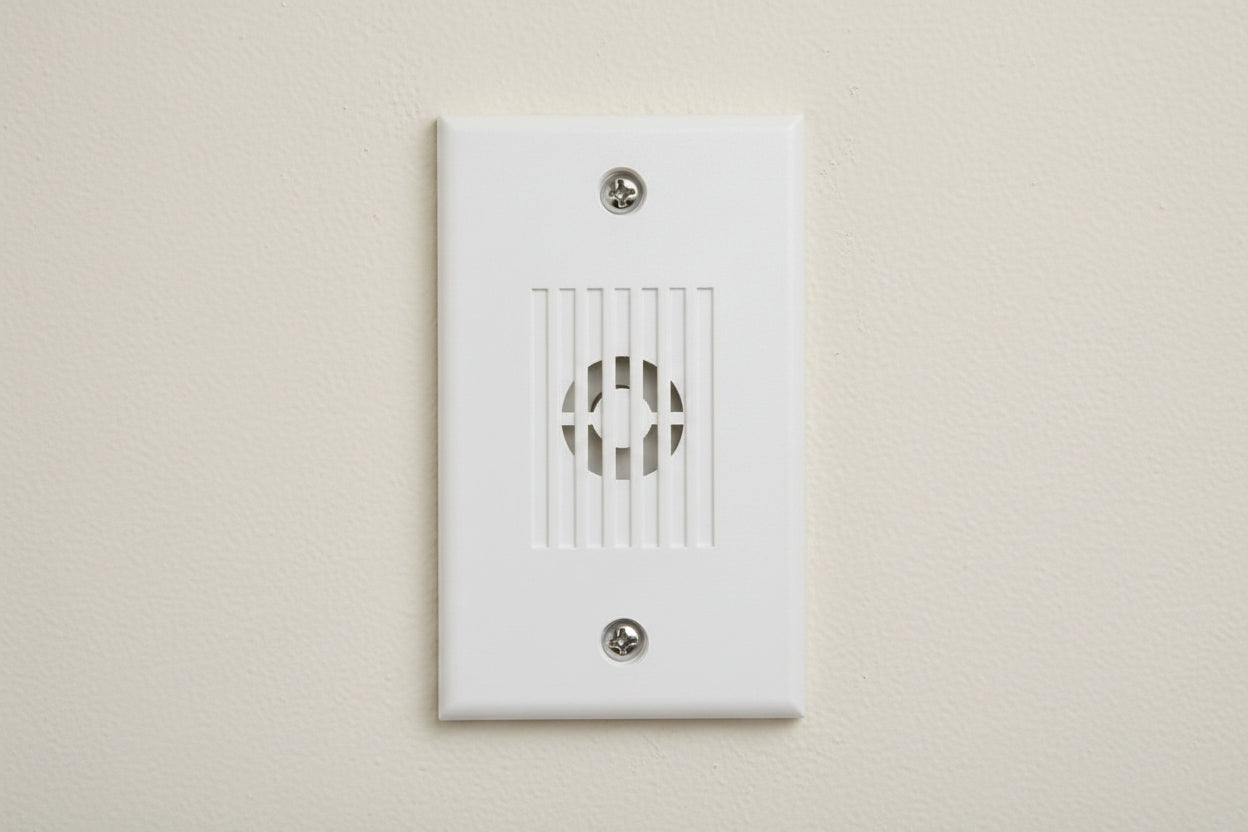

Eaton MIZ-24S-W MIZ Mini Horn, Wall, 24V, Temporal/Continuous, Indoor, White

The Eaton Wheelock MIZ-24S-W is a compact 24V DC piezoelectric mini horn for indoor fire alarm systems. It mounts on the wall in a white finish and suits installers and facility teams who need an audible notification appliance that fits a standard single-gang box. Its field-selectable Temporal (Code 3) or Continuous output, high sound output and low current draw are what set it apart.

Key features

• Installers can choose Temporal (Code 3) or Continuous horn output in the field.
• Code 3 output can be synchronized when the horn is used with a Wheelock sync module.
• It mounts to any standard single-gang box and needs no extra trim plate for flush mounting.
• In/Out screw terminals accept #12 to #18 AWG wire for fast installation.
• Beauty plugs cover the mounting screws for a finished look.
• Approvals include UL Standard 464, CSFM, New York City (MEA) and Factory Mutual (FM).

Specifications

Brand: Eaton

Model: MIZ-24S-W

Product line: MIZ

Product type: Mini horn

Alarm type: Audible

Input voltage: 24V DC

Sound emission: 87dB

Color: White

Mount type: Wall mount

Indoor/outdoor: Indoor

Shape: Rectangular

Height: 4.51″

Width: 2.76″

Depth: 0.36″

Weight: 0.17 lb

Operating temperature: 32-120°F

Certifications and standards: UL, FM

Packaged quantity: 1

Installation notes

Set the horn to Temporal (Code 3) or Continuous before mounting, and confirm the setting matches the system's notification requirements. Keep the horn within its indoor temperature range, and use the In/Out terminals to wire the circuit through each device so connections are easy to check during commissioning.
