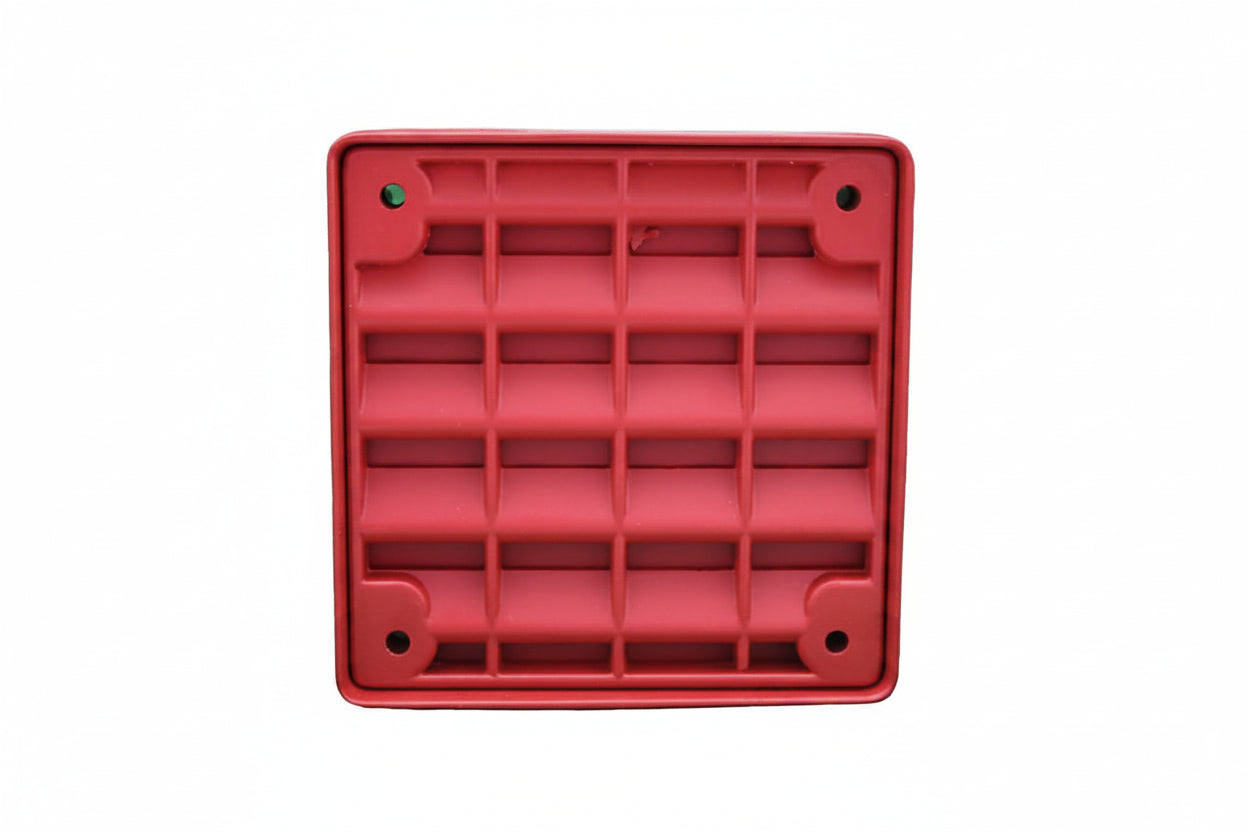

Eaton ET-1010-R ET-1010 Vandal Resistant Speaker, Surface Mount, Wall/Ceiling, 25/70V, Indoor or Outdoor, Red

The Eaton Wheelock ET-1010-R is a red, vandal resistant fire alarm speaker for surface mounting on a wall or ceiling. It handles voice and tone signaling in life safety systems, and it suits installers and facility owners who need a rugged unit in public or exposed locations. A die cast grille and an outdoor listing, when paired with the Wheelock WBB outdoor backbox, set it apart.

Key features

• The die cast grille is vandal resistant, so the speaker holds up in exposed or high-traffic areas.
• Field selectable taps support 25 or 70 VRMS operation, from 1/8 watt up to 8 watts in 3 dB steps.
• The speaker is designed for maximum output at minimum wattage across a 400 to 4000 Hz range.
• ET-1010 models are UL Listed for outdoor use when installed with the Wheelock WBB outdoor backbox.
• Approvals include UL 1480, UL 1971, CSFM, New York City (MEA), Chicago (BFP), CAN/ULC-S541-07 and FCC Part 15.
• It complies with OSHA 29, Part 1910.165 and is designed to meet or exceed NFPA/ANSI standards and ADA Accessibility Guidelines.

Specifications

Brand: Eaton

Product Line: Eaton Wheelock

Model: ET-1010-R

Product Type: Speaker

Application/Usage: Fire Alarm

Color: Red

Shape: Rectangular

Mount Type: Ceiling Mount

Form Factor: Ceiling Mount

Indoor/Outdoor: Outdoor

Durability: Vandal Resistant

Certifications & Standards: UL

Frequency Range: 400-4000Hz

Sound Emission: 77dB

Operating Temperature: -40-150°F

Width: 4.30″

Height: 4.30″

Depth: 1.90″

Weight: 3.00 lb

Packaged Quantity: 1

Country of Origin: US

Installation notes

Set the 25 or 70 VRMS tap and the wattage level to match your amplifier circuit and design before commissioning. For outdoor locations, mount the speaker on the Wheelock WBB outdoor backbox to keep the outdoor listing valid.
