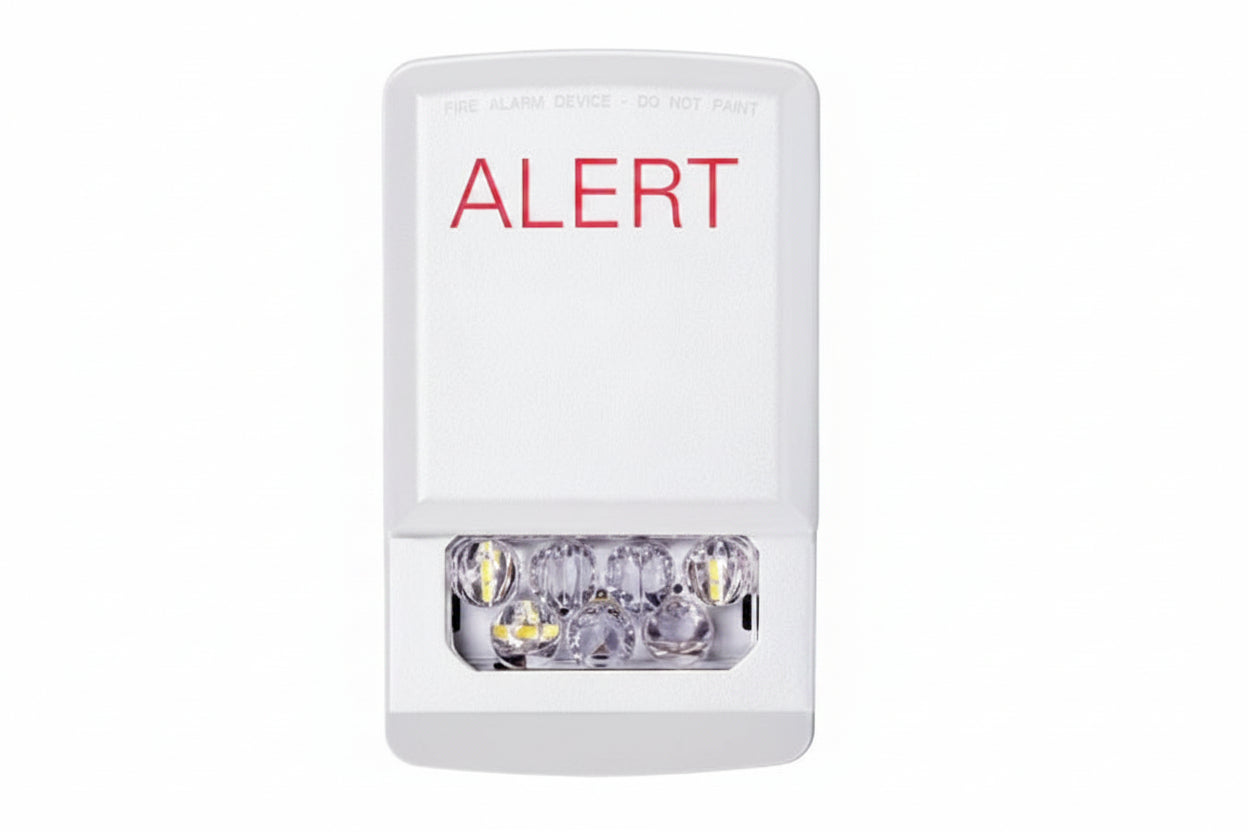

Eaton ELSTW-AL Wheelock Eluxa LED Strobe, Wall, ALERT Lettering, Clear Lens, 24V, 15/30/75/110/135/185 cd, White

The Eaton ELSTW-AL is an Eluxa indoor LED strobe from Wheelock for wall mounting, with a clear lens and "ALERT" lettering in a white housing. It provides the visual notification in a fire alarm system and runs on 24V DC. It suits installers and facility owners who want a compact single-gang strobe with selectable candela settings and low current draw.

Key features

• Offers six candela settings: 15, 30, 75, 110, 135 and 185 cd.
• LED technology gives a low current draw for a combined high and low candela device, which can mean fewer power supplies, smaller wire gauge and shorter wire runs.
• LED and xenon strobes can be mixed in the same field of view.
• Meets strict synchronization standards when used with Wheelock DSM Sync Modules, PS Power Supplies or SAFEPATH products.
• The mounting plate is included, and a capture hinge holds the device while you fasten the single mounting screw.
• Pre-wire and pre-test capability lets you check for wiring and ground faults before the appliance is installed.

Specifications

Brand: Eaton

Model: ELSTW-AL

Product Line: Eluxa Indoor

Product Type: Strobe

Alarm Type: Visual

Lamp Type: LED

Candela: 15/30/75/110/135/185 cd

Input Voltage: 24V DC

Mount Type: Wall Mount

Application: Indoor

Lens Color: Clear

Print/Message: ALERT

Color: White

Shape: Rectangular

Width: 2.76″

Height: 1.57″

Depth: 4.76″

Weight: 0.33 lb

Operating Temperature: 32-122°F

Certifications & Standards: UL

Packaged Quantity: 1

Installation notes

Run the pre-wire test before fitting the strobe, so any wiring or ground faults are found while the circuit is easy to reach. Use the included mounting plate and capture hinge to hold the device in place while you set the single mounting screw, and confirm the candela setting suits the space before commissioning.
