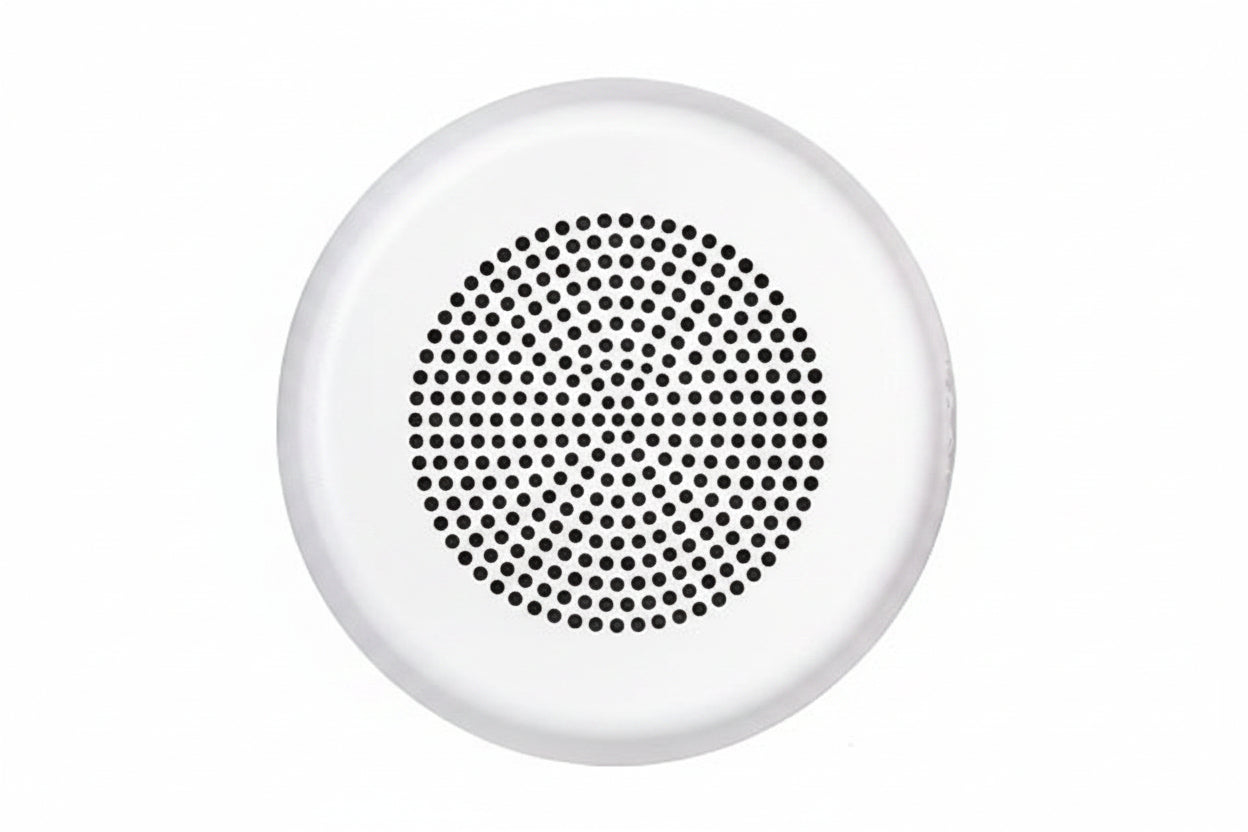

Eaton ELSPKWC Wheelock Eluxa LED High Fidelity Speaker, Ceiling, FIRE Lettering, 24VDC, White

The Eaton ELSPKWC is a white, ceiling-mount fire alarm speaker from the Wheelock Eluxa line, marked with FIRE lettering. It handles voice evacuation and alarm audio in indoor spaces, and it suits installers and facility managers working on commercial fire alarm systems. It covers a 300 Hz to 8000 Hz range, supports 25 or 70 VRMS operation, and has a capture hinge and pre-wire test capability that help during installation.

Key features

• It delivers high intelligibility at minimum wattage across 300 Hz to 8000 Hz.
• Fewer power supplies, smaller wire gauge and shorter wire runs are possible.
• It meets the low frequency requirements of UL 464 (520 Hz).
• It can be set for 25 or 70 VRMS operation.
• Pre-wire and pre-test capability lets you check for wiring and ground faults before the appliance goes in.
• Finger slide switches change settings without tools, and a built-in level adjustment and snap-on grille cover are included.

Specifications

Brand: Eaton

Model: ELSPKWC

Product Line: Eluxa Indoor

Product Type: High fidelity speaker

Application/Usage: Indoor

Mount Type: Ceiling Mount

Form Factor: Ceiling Mount

Shape: Circular

Color: White

Input Voltage: 24V DC

Operation: 25 or 70 VRMS

Frequency Range: 300-8000Hz

Minimum Frequency Response: 300Hz

Maximum Frequency Response: 8kHz

Sound Emission: 75dB

Diameter: 1.50″

Height: 6.25″

Weight: 1.48lb

Operating Temperature: 32-122°F

Certifications & Standards: UL

Environmental Certification: RoHS

Packaged Quantity: 1

Installation notes

Run the pre-wire test before mounting the speaker so wiring and ground faults are found while the ceiling is still easy to access. Use the capture hinge to hold the device while you fasten the single mounting screw, and set the level and voltage switches before snapping on the grille cover.
