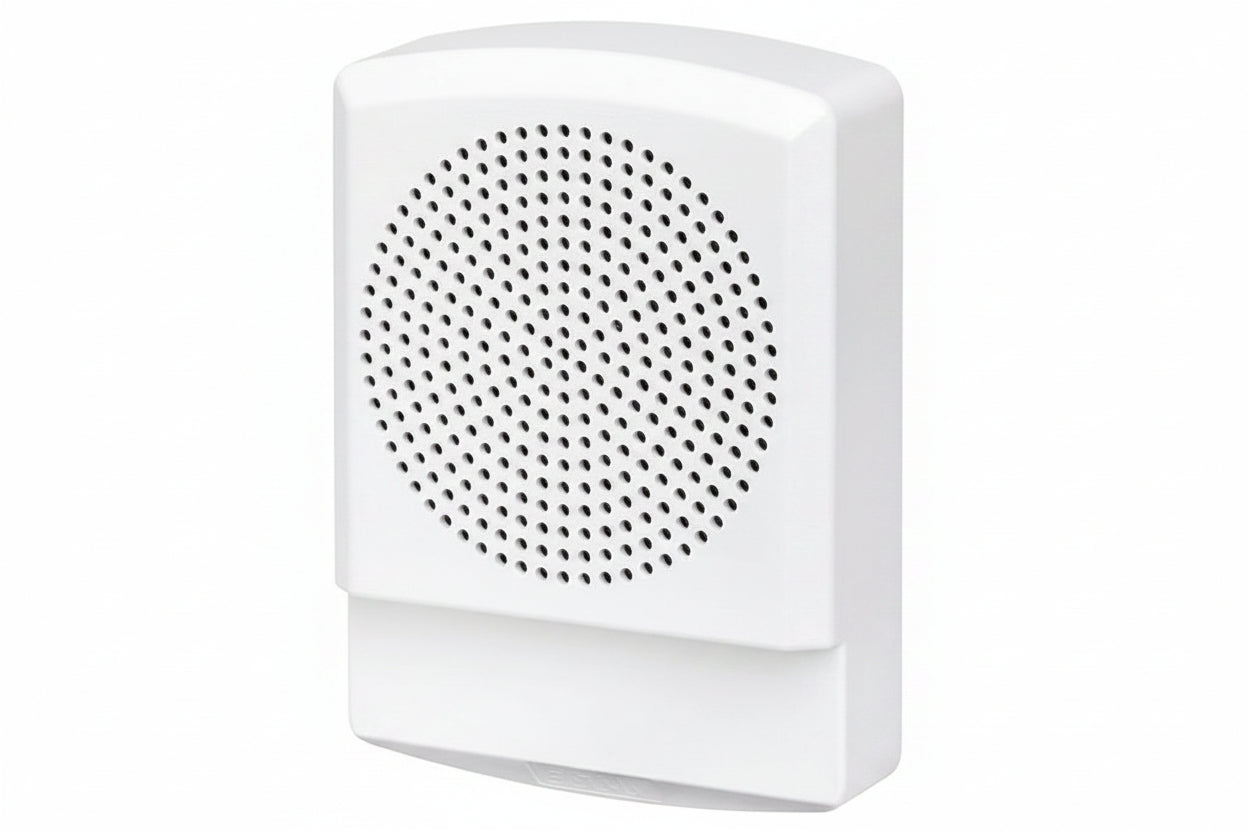

Eaton ELSPKW Wheelock Eluxa LED High Fidelity Speaker, Wall, FIRE Lettering, 24VDC, White

The Eaton ELSPKW is a wall-mount high fidelity speaker from the Wheelock Eluxa Indoor line, with white housing and FIRE lettering. It reproduces voice and tones for fire alarm notification, and suits installers outfitting indoor commercial or residential buildings. Its 300-8000Hz frequency range and 24V DC input make it a straightforward choice where clear speech matters.

Key features

• Delivers high-fidelity sound output for clear audible notification.
• Covers a 300 to 8000Hz frequency range for high intelligibility.
• Meets the low frequency requirements of UL 464 (520Hz).
• Produces 75dB of sound emission.
• Runs on 24V DC input.
• Mounts on the wall in a white rectangular housing with FIRE lettering.

Specifications

Brand: Eaton

Model: ELSPKW

Product Line: Eluxa Indoor

Product Type: High fidelity speaker

Application/Usage: Indoor

Mount Type: Wall Mount

Form Factor: Wall Mount

Shape: Rectangular

Color: White

Input Voltage: 24V DC

Sound Emission: 75dB

Frequency Range: 300-8000Hz

Minimum Frequency Response: 300Hz

Maximum Frequency Response: 8kHz

Height: 6.35″

Width: 4.56″

Depth: 2.94″

Weight: 1.44lb

Operating Temperature: 32-122°F

Certifications & Standards: UL

Environmental Certification: RoHS

Packaged Quantity: 1

Installation notes

This speaker is rated for indoor use only, so keep it within the 32-122°F operating range and out of exposed or wet locations. Confirm the supply is 24V DC, follow the local fire alarm code for placement, and test intelligibility at the listening area during commissioning.
