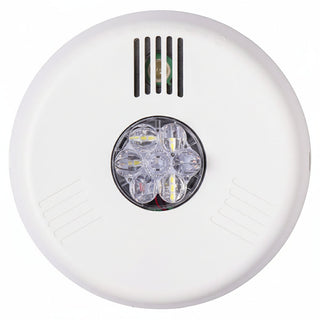

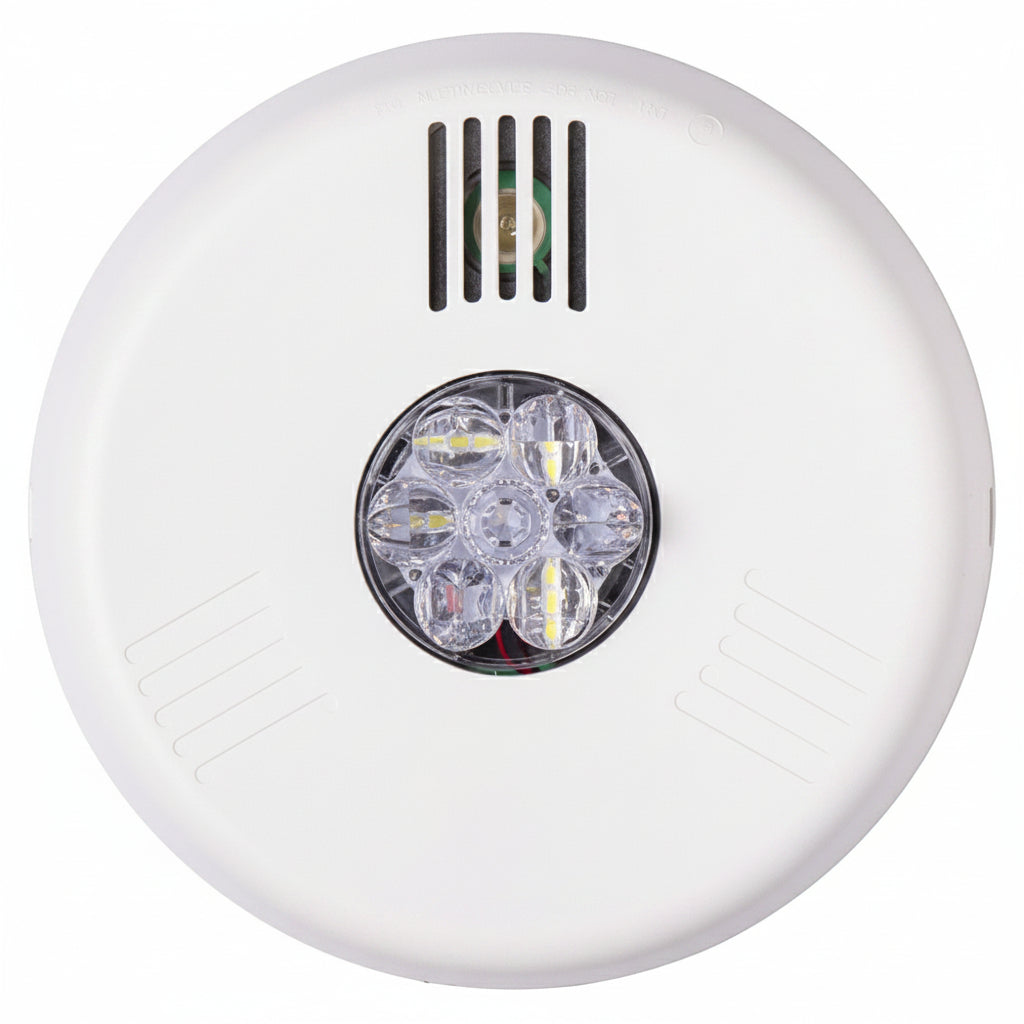

Eaton ELHSWC Wheelock Eluxa Horn Strobe, LED, Ceiling, FIRE, Clear Lens, 15/30/75/110/150/177 cd, 24V, Indoor, White

The Eaton ELHSWC from the Wheelock Eluxa line is a ceiling-mount, indoor LED horn strobe for fire alarm systems, finished in white with a clear lens. It suits installers and facility owners who need audible and visual notification from one compact device. Its low current draw, selectable candela settings and combined fire and CO signaling stand out.

Key features

• LED technology gives a low current draw, which can mean fewer power supplies, smaller wire gauge and shorter wire runs.
• The low-profile single-gang design has no visible mounting screws.
• Six field-selectable candela settings for ceiling use cover 15, 30, 75, 110, 150 and 177 cd in one device.
• Three horn patterns are available: Continuous, T3, and T3/T4.
• Fire and CO signaling are combined in a single device.
• It meets NFPA 72 fire and CO low frequency sounder codes for sleeping rooms.

Specifications

Brand: Eaton

Model: ELHSWC

Product line: Eluxa Indoor

Product type: Horn Strobe

Alarm type: Audible

Print/message: Fire

Lamp type: LED

Lens color: Clear

Color: White

Mount type: Ceiling Mount

Shape: Circular

Indoor/outdoor: Indoor

Connectivity: Wired

Power source: DC Power

Input voltage: 33V DC

Candela settings (ceiling): 15, 30, 75, 110, 150, 177 cd

Horn patterns: Continuous, T3, T3/T4

Sound pressure (anechoic): Low 86 dBA, High 91 dBA

Sound emission: 86dB

Operating temperature: 32-122°F

Durability: UV Resistant

Certifications and standards: FCC

Environmental certification: RoHS

Height: 1.91″

Depth: 1.70″

Diameter: 6.23″

Weight: 0.70 lb

Packaged quantity: 1

Package contents: Eluxa ELHSWC Horn/Strobe Mounting Plate

Installation notes

Set the candela level and horn pattern to match the design requirements for the space before closing up the device. Keep the unit within its indoor operating temperature range, and verify the signaling circuit and the system's power supply capacity during commissioning.
