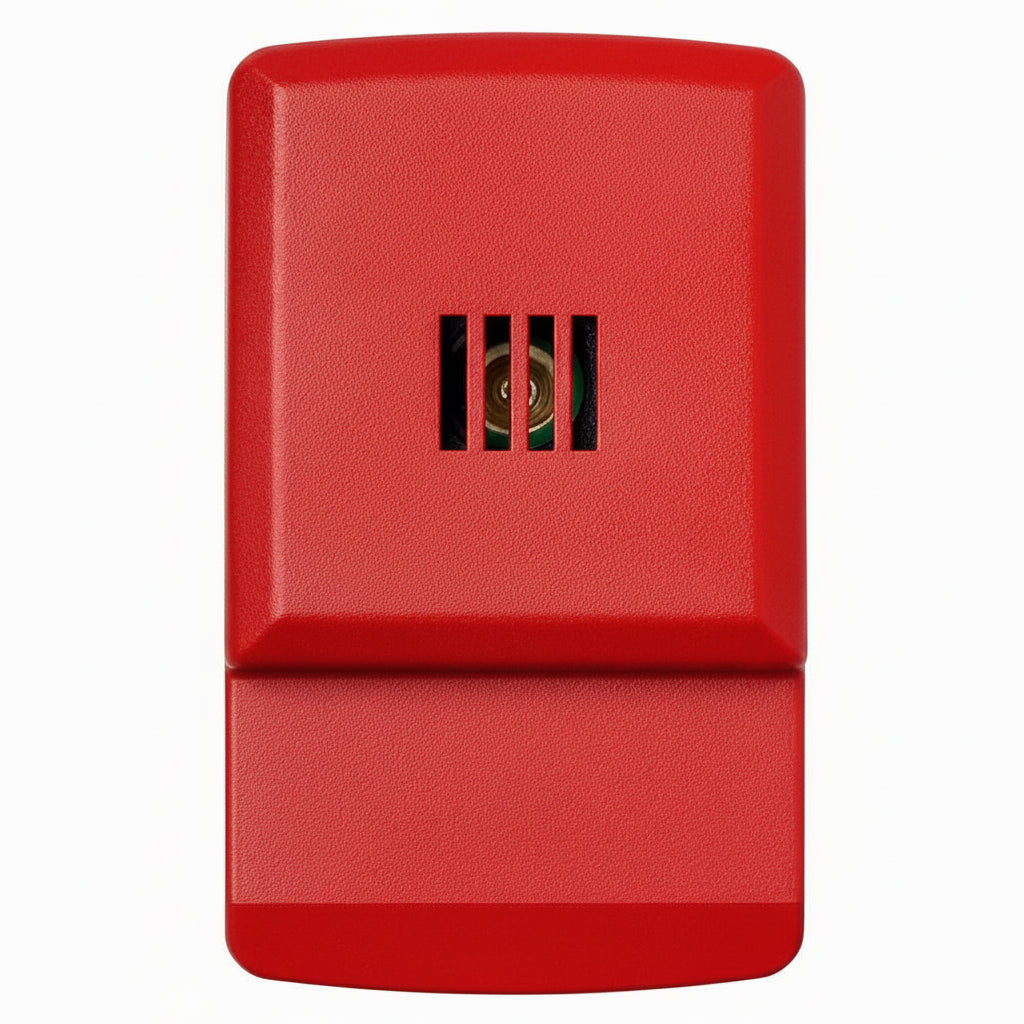

Eaton ELHNR Wheelock Eluxa LED Horn, Wall, 12/24V, Indoor, Red

The Eaton Wheelock Eluxa ELHNR is a red, wall-mount LED horn for indoor fire alarm systems. It suits installers and facility teams who need audible notification in buildings and want a compact single-gang device. Its low current draw and low-profile design with no visible mounting screws are what set it apart.

Key features

• LED technology gives the industry's lowest current draw, which can mean fewer power supplies, smaller wire gauge and shorter wire runs.
• One of the smallest single-gang designs, with a sleek look and no visible mounting screws.
• Six field-selectable settings in one device: 15, 30, 75, 110, 135 or 185 cd for wall mounting, and 15, 30, 75, 110, 150 or 177 cd for ceiling mounting.
• Three horn patterns (Continuous, T3, and T3/T4) let one device handle both fire and CO signaling.
• Rated sound pressure (anechoic) is 86 dBA on low and 91 dBA on high for Continuous, T3 and T4.
• Special lettering is available.

Specifications

Brand: Eaton

Model: ELHNR

Product Line: Eluxa Indoor

Product Type: Horn

Alarm Type: Audible

Application: Building

Color: Red

Mount Type: Wall Mount

Form Factor: Wall Mount

Shape: Rectangular

Indoor/Outdoor: Indoor

Connectivity: Wired

Power Source: DC Power

Input Voltage: 33V DC

Sound Emission: 80dB

Operating Temperature: 32-122°F

Durability: UV Resistant

Height: 1.30″

Width: 2.78″

Depth: 4.75″

Weight: 0.33 lb

Certifications & Standards: UL, ULC

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: US

Packaged Quantity: 1

Package Contents: Eluxa ELHNR Horn, Mounting Plate

Installation notes

Secure the mounting plate to the box first, then attach the horn so no mounting screws show. Confirm the horn pattern and output settings against the system design before commissioning, and test the device once it is wired.
